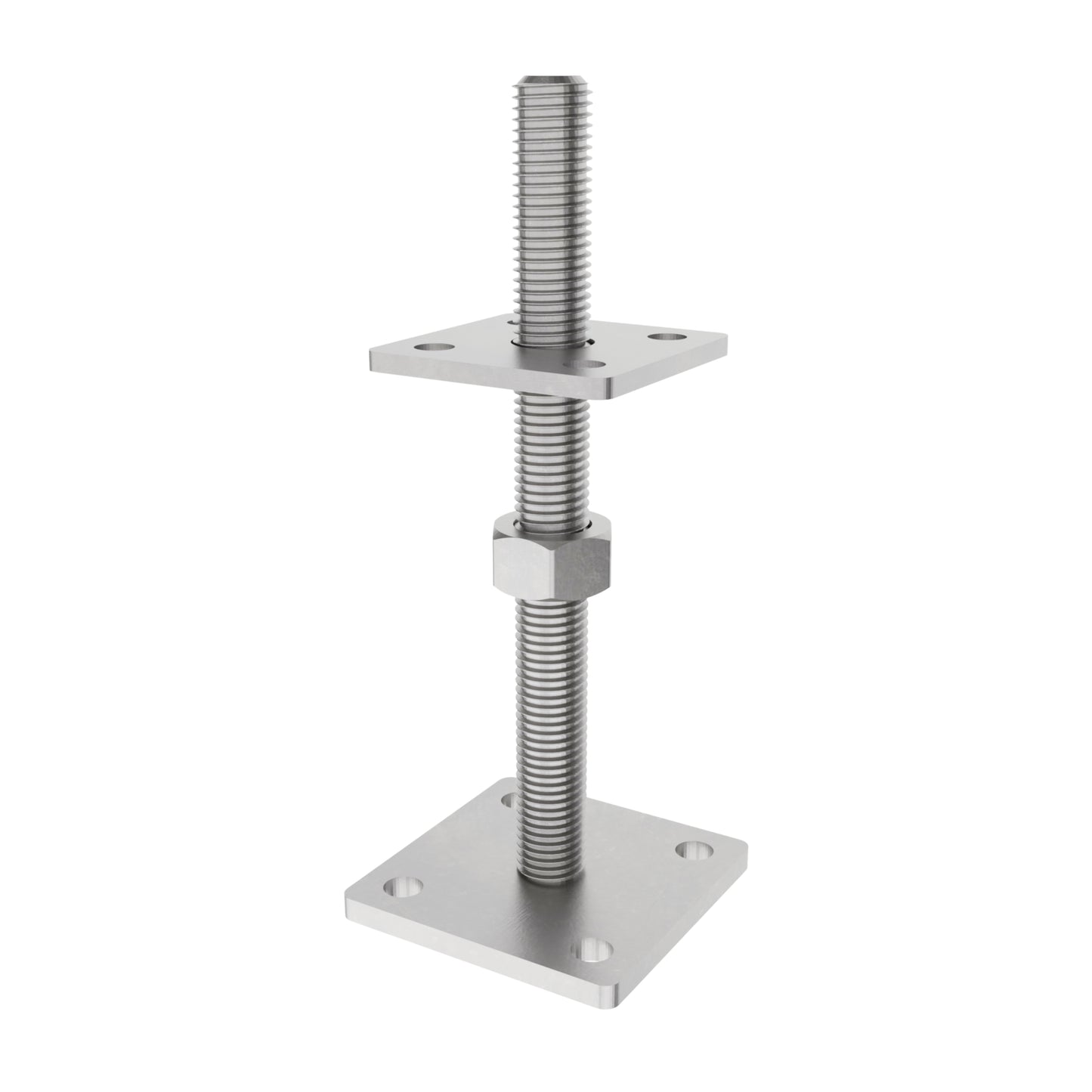

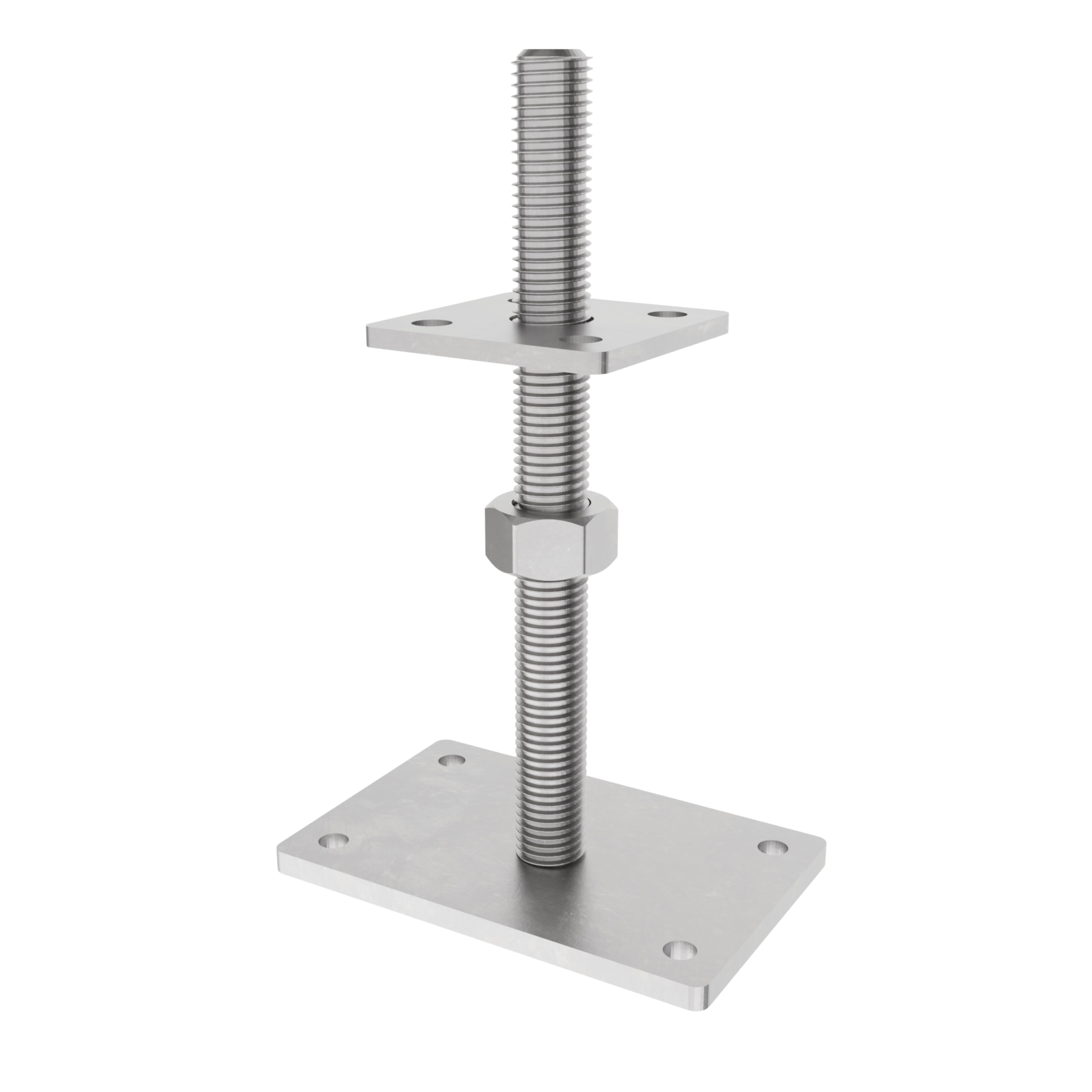

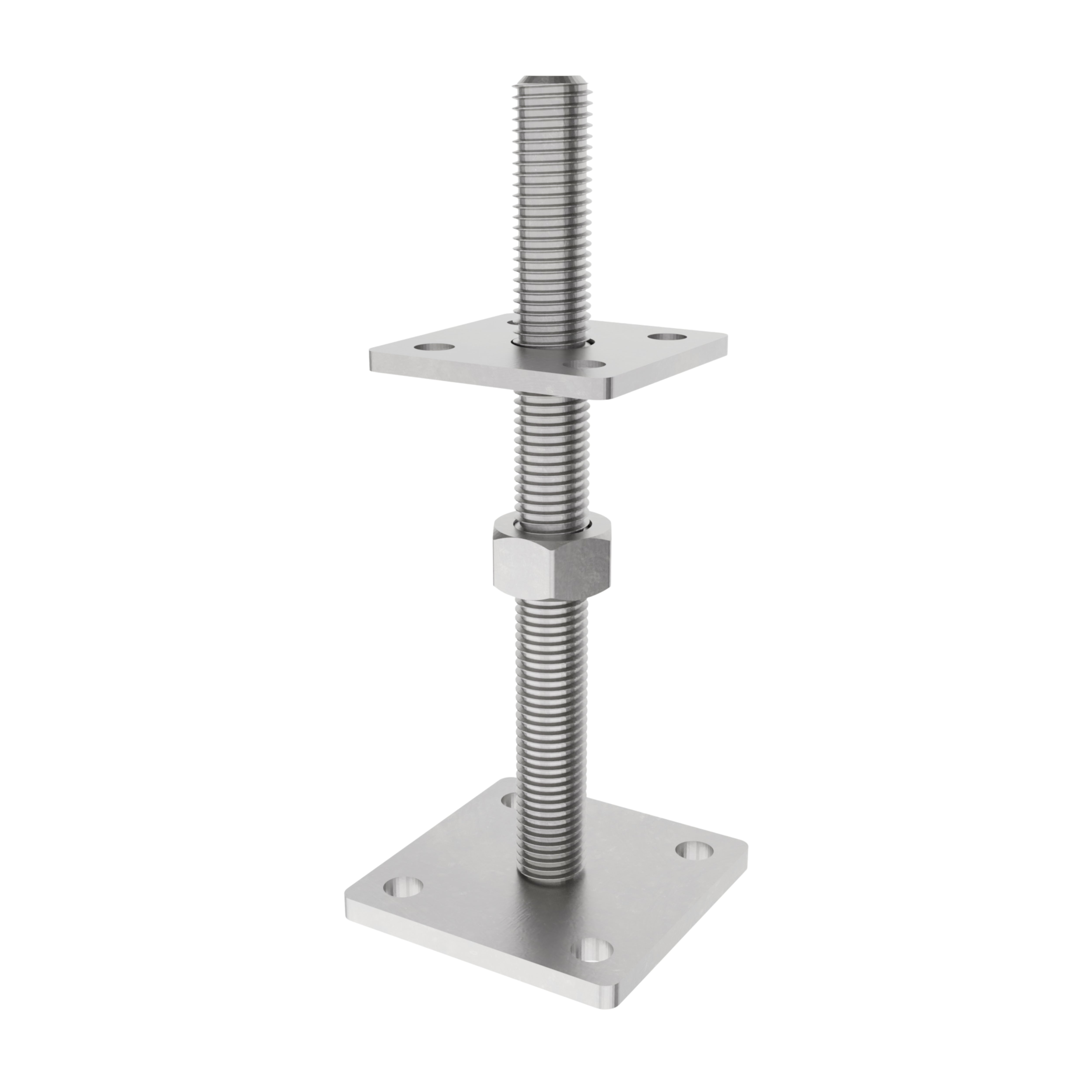

Adjustable Post Support

PRODUCT - Post support is height-adjustable even after installation, thanks to the freely movable 6 mm thick support plate, making it perfect for many gardening projects.

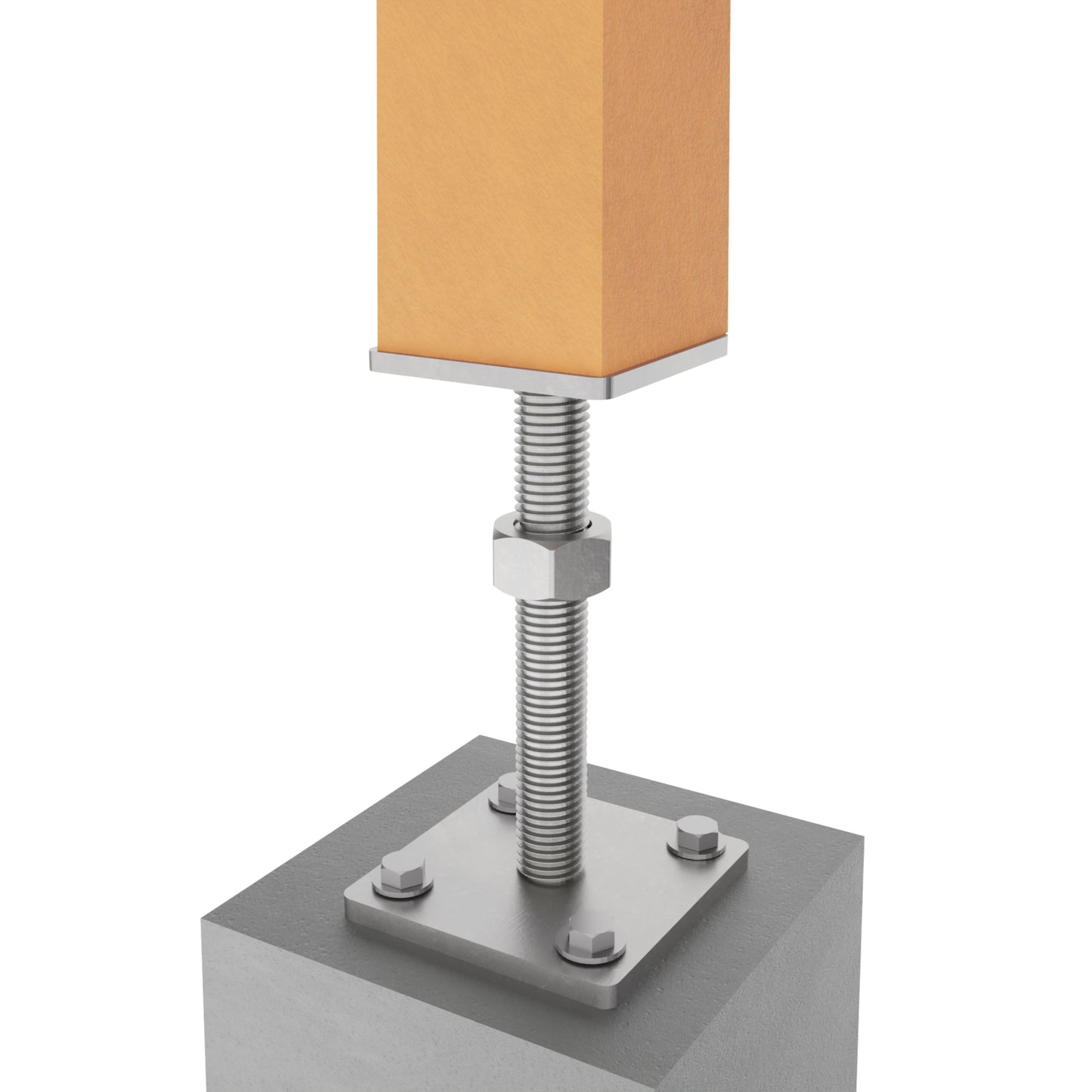

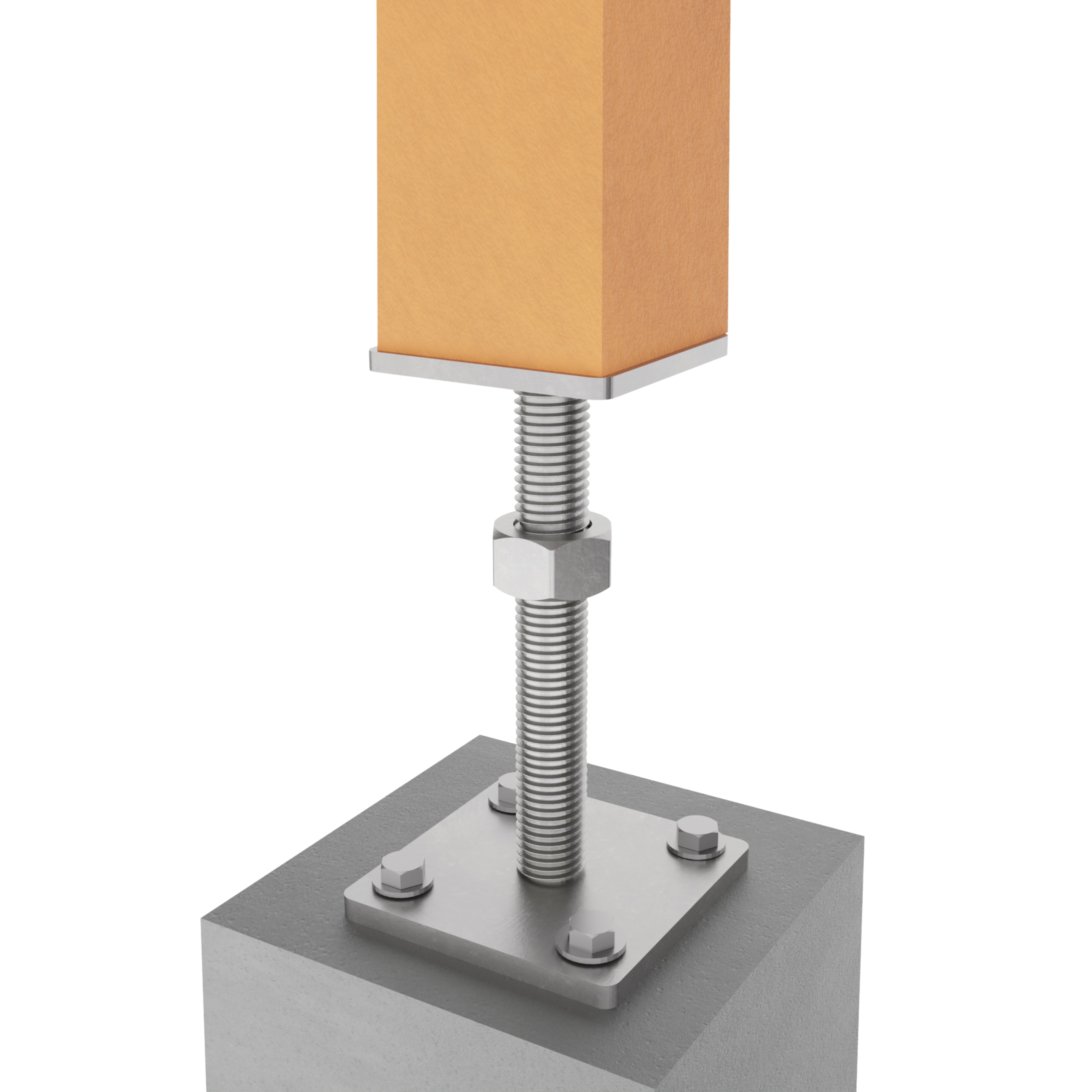

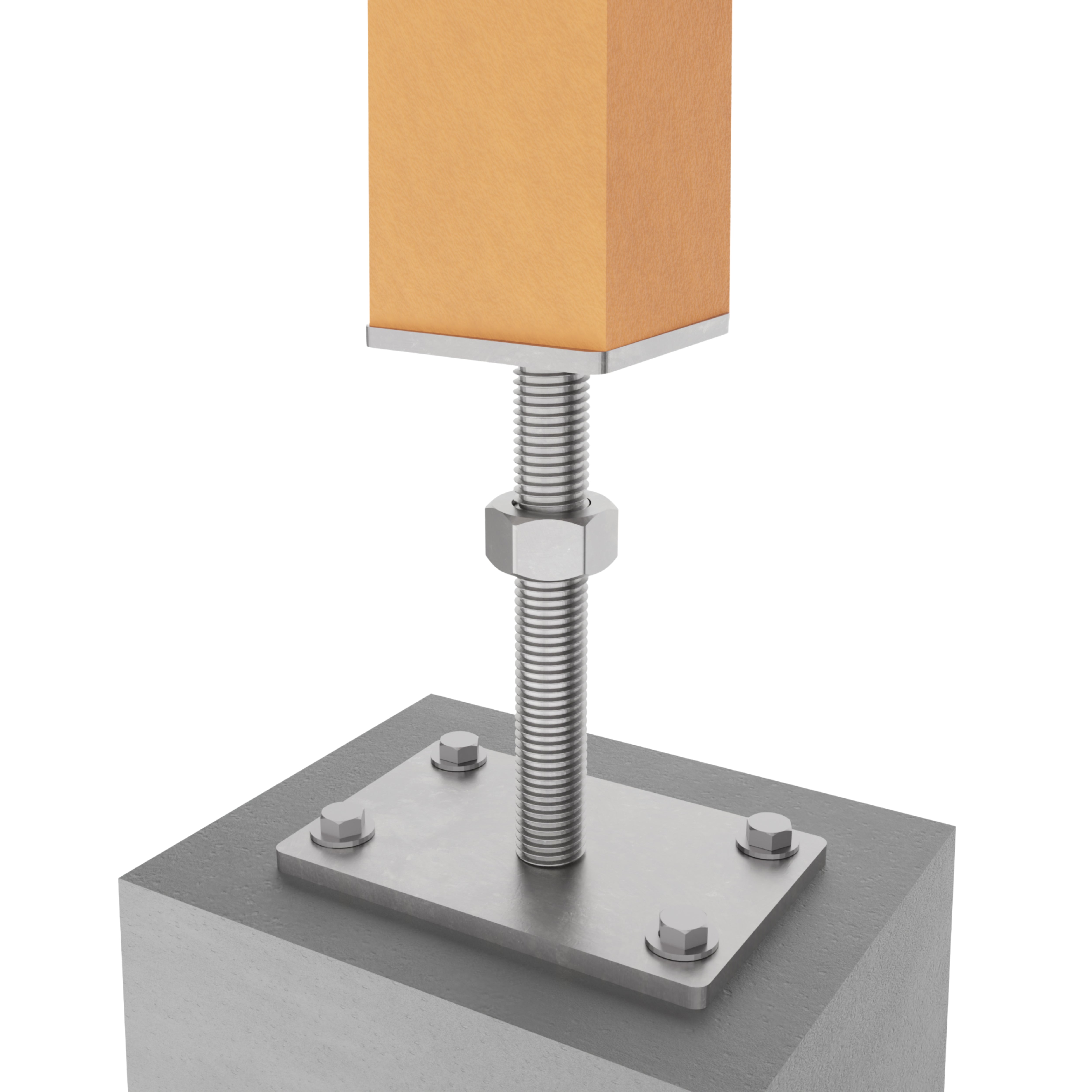

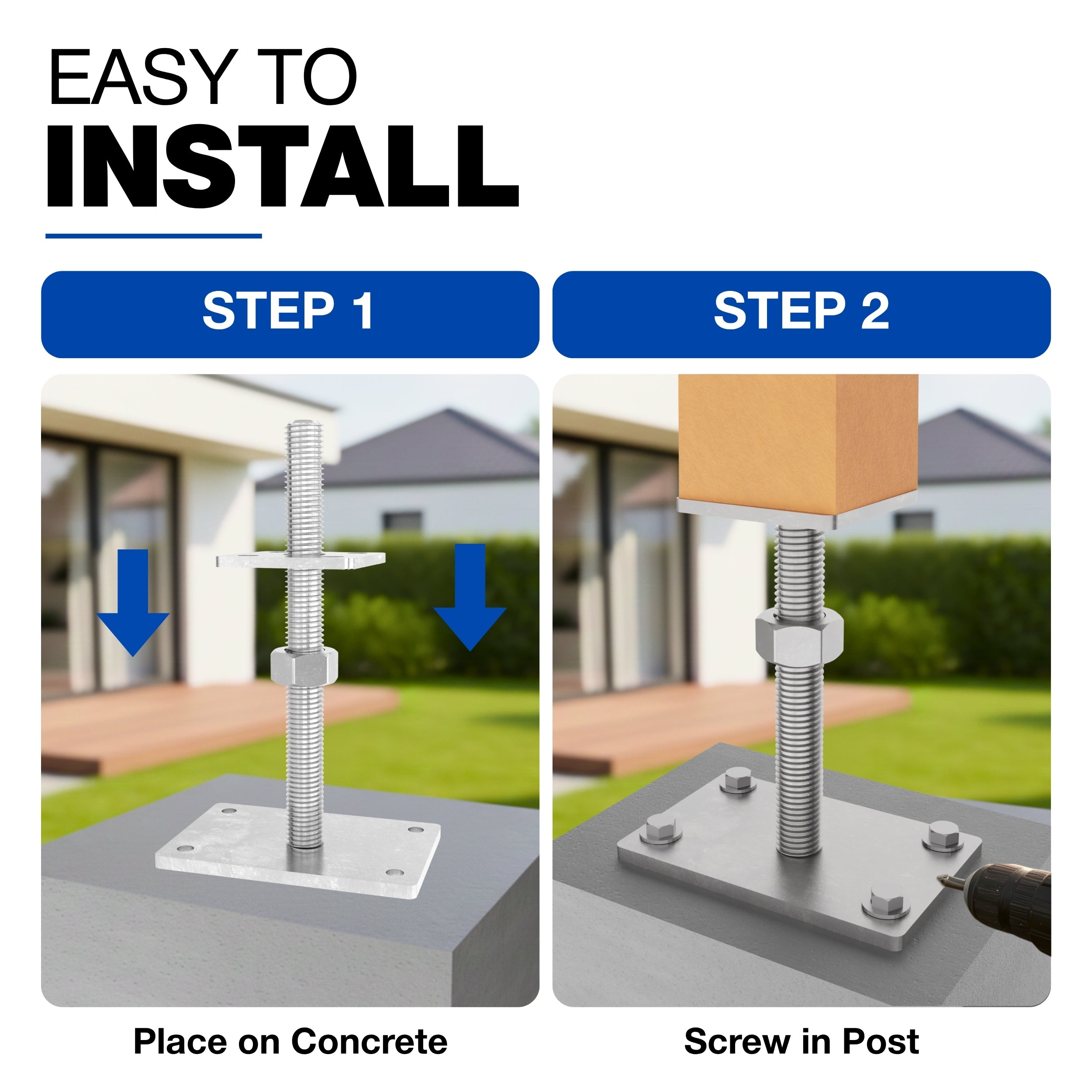

FEATURES - The post support can be securely fastened to a level concrete or wooden floor using 4 holes, each with a 13 mm diameter, or anchored with bolt anchors.

USABILITY - If the foundation varies in height, the Adjustable Bolt Down Post Support can be adjusted within a range of 30 - 80 mm after installation. This is achieved using the movable support plate and its locking nut. The 100 mm long threaded rod with a diameter of 16 mm enables both height adjustment and functions as a Mandrel, which is screwed into or out of the post during height adjustment.

VERSATILITY - For stability, approximately 10 - 20 mm of the adjustment range is required as thread security. Thanks to hot-dip galvanization, the Post support is protected from external weather conditions. The base plate measures 70 × 70 mm, and the support plate measures 50 × 50 mm, making it a reliable and adjustable post support solution.

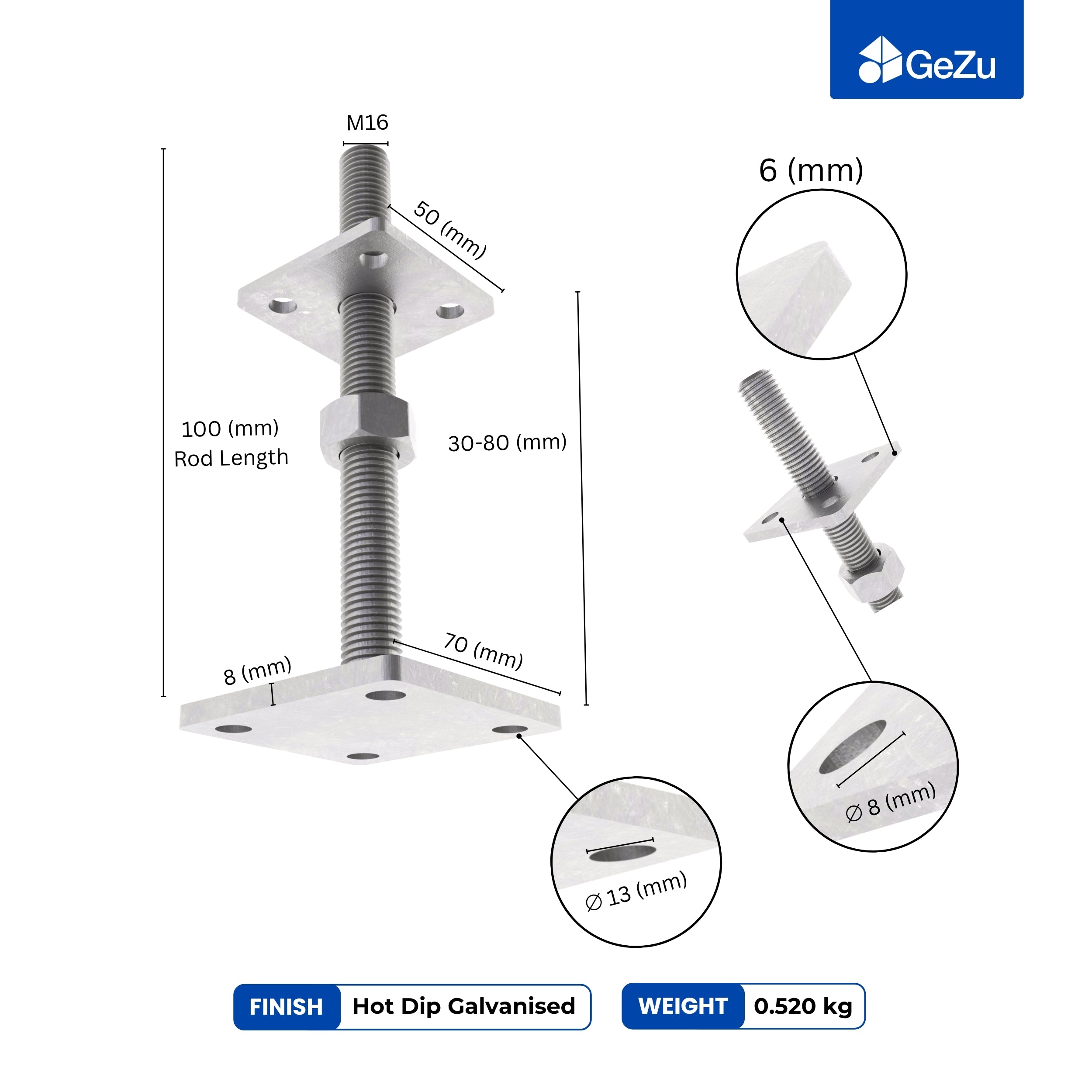

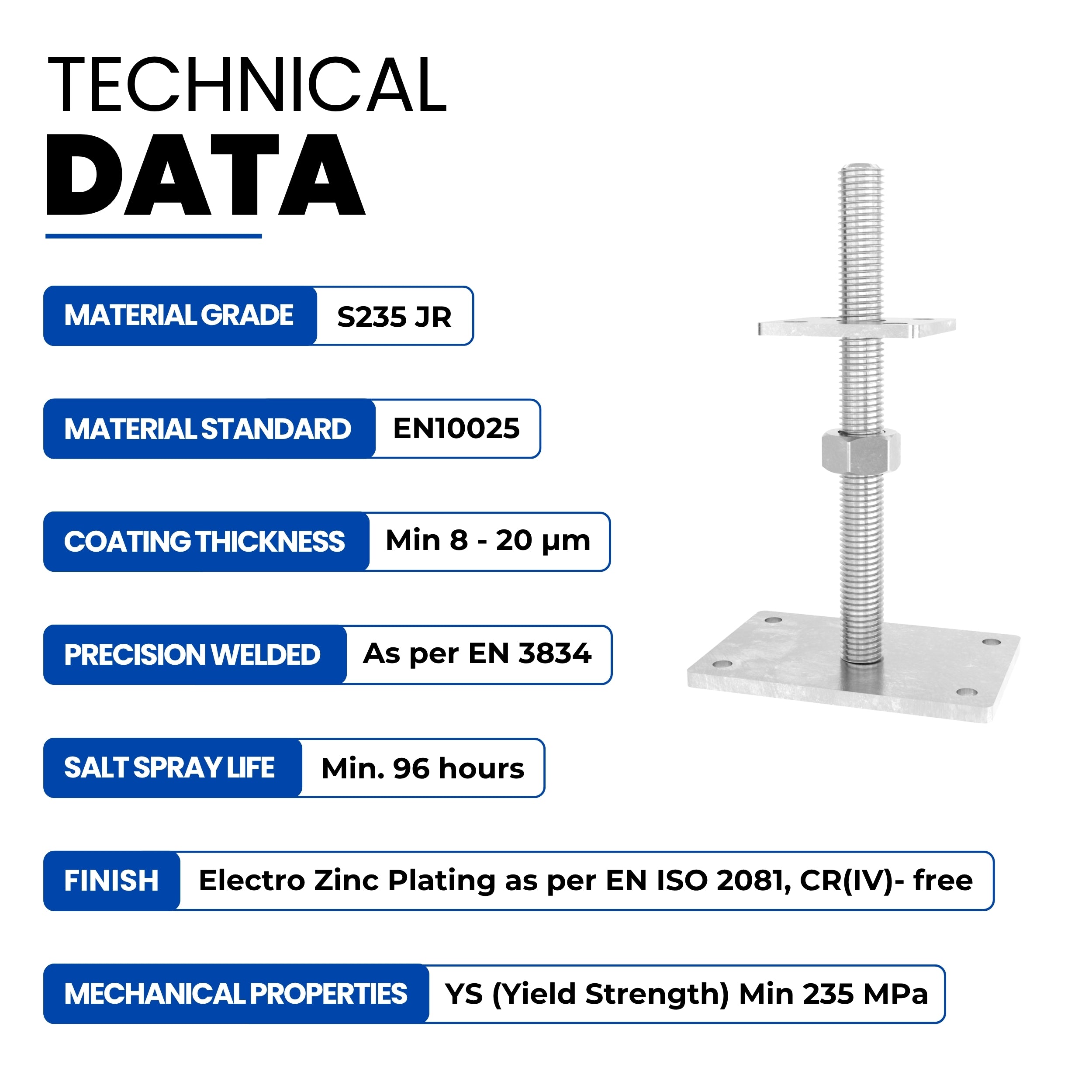

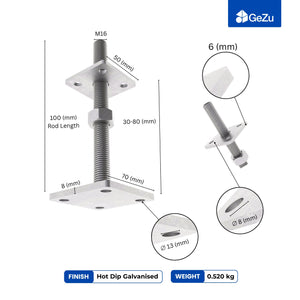

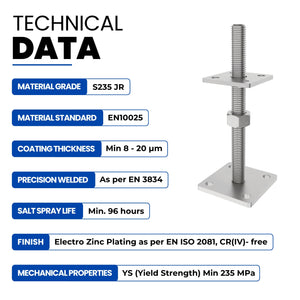

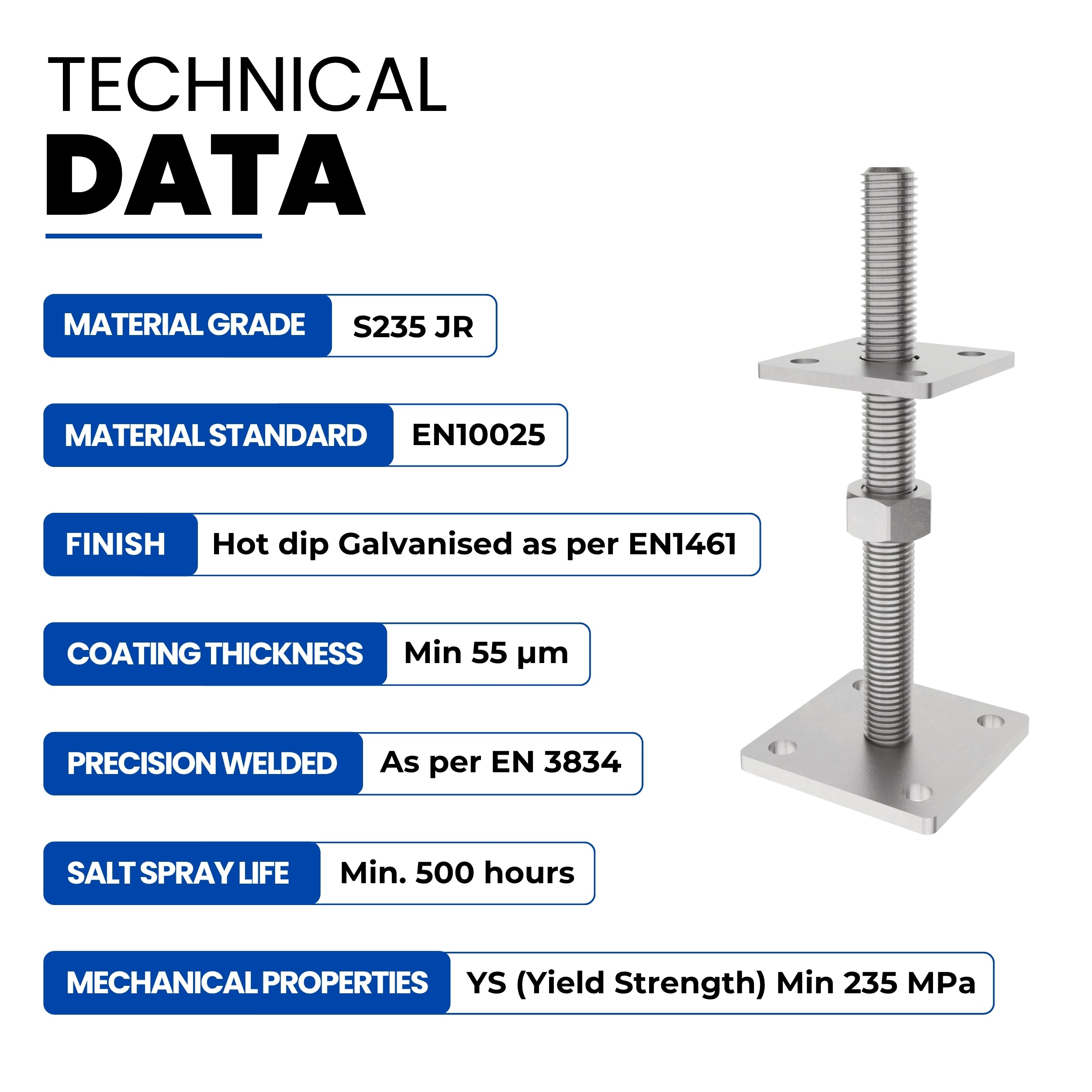

TECHNICAL DATA - Adjustment range: 30 - 80 mm - Support plate: 50 x 50 mm - Material thickness of support plate: 6 mm - Holes in support plate: 4 holes Ø 8 mm - Hole spacing of support plate: 35 mm - Base plate: 70 x 70 mm - Material thickness of base plate: 8 mm - Holes in base plate: 4 holes Ø 13 mm - Hole spacing of base plate: 45 mm - Thread thickness: M16 - Hexagon nut: SW 24 - Material type: Steel zinc flake coated
