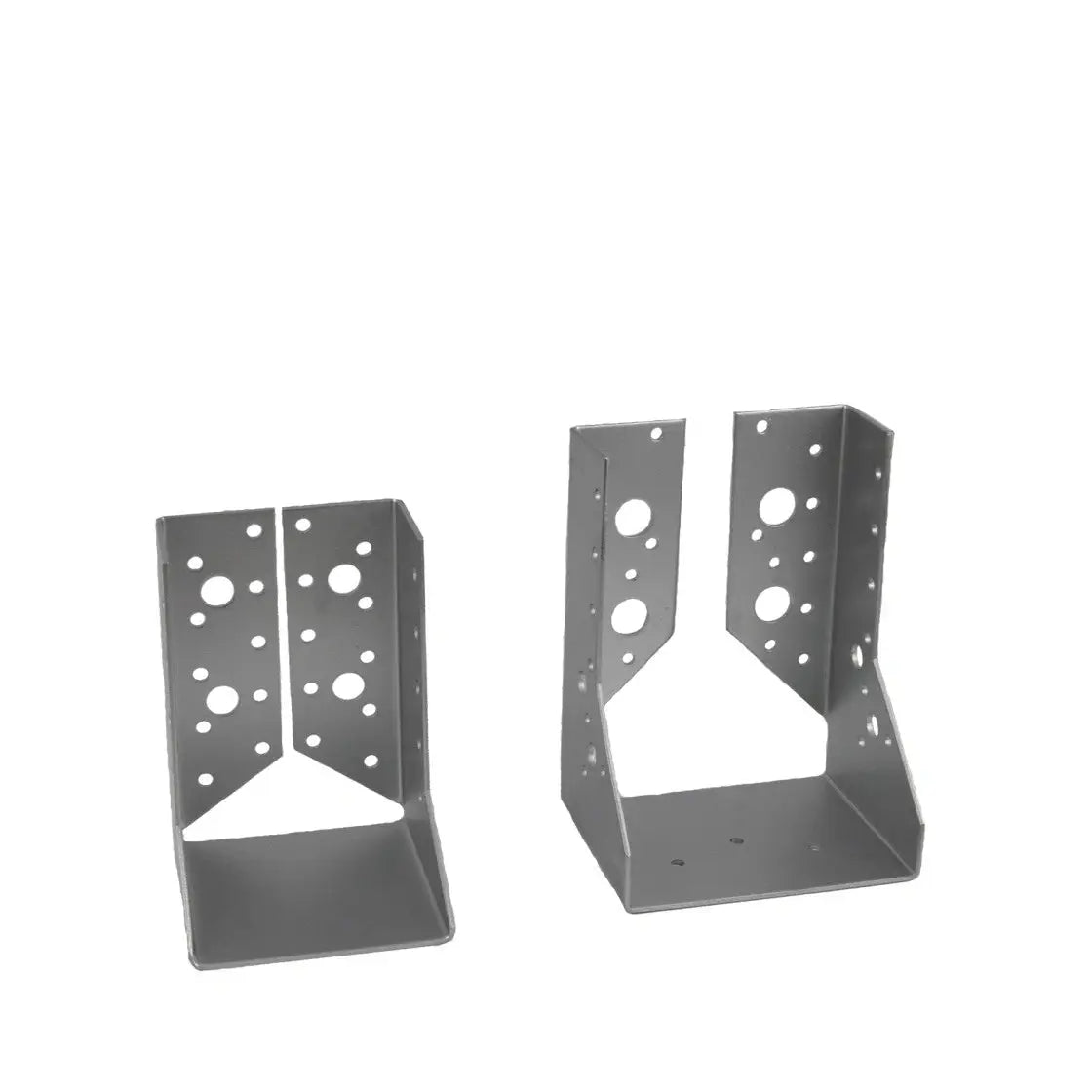

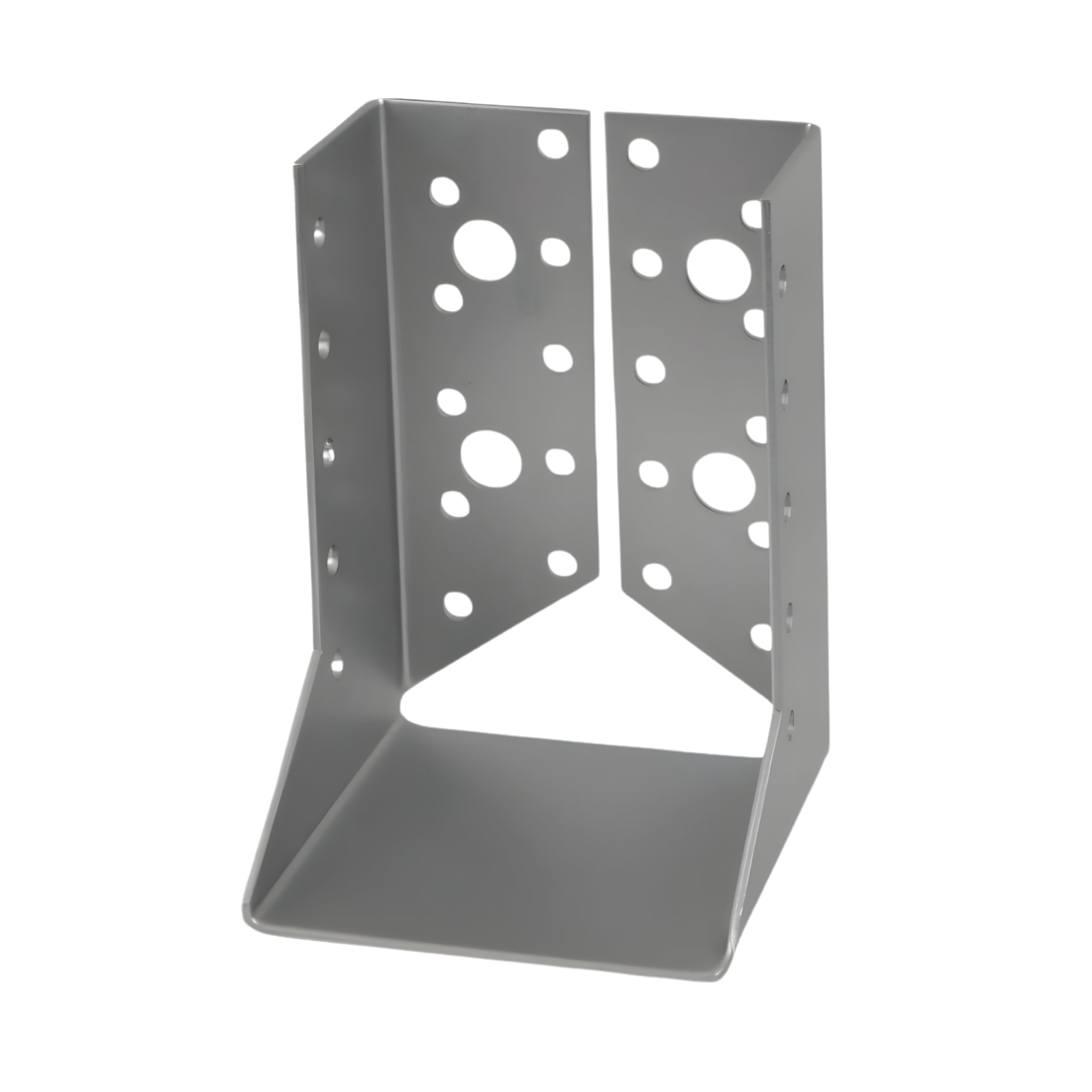

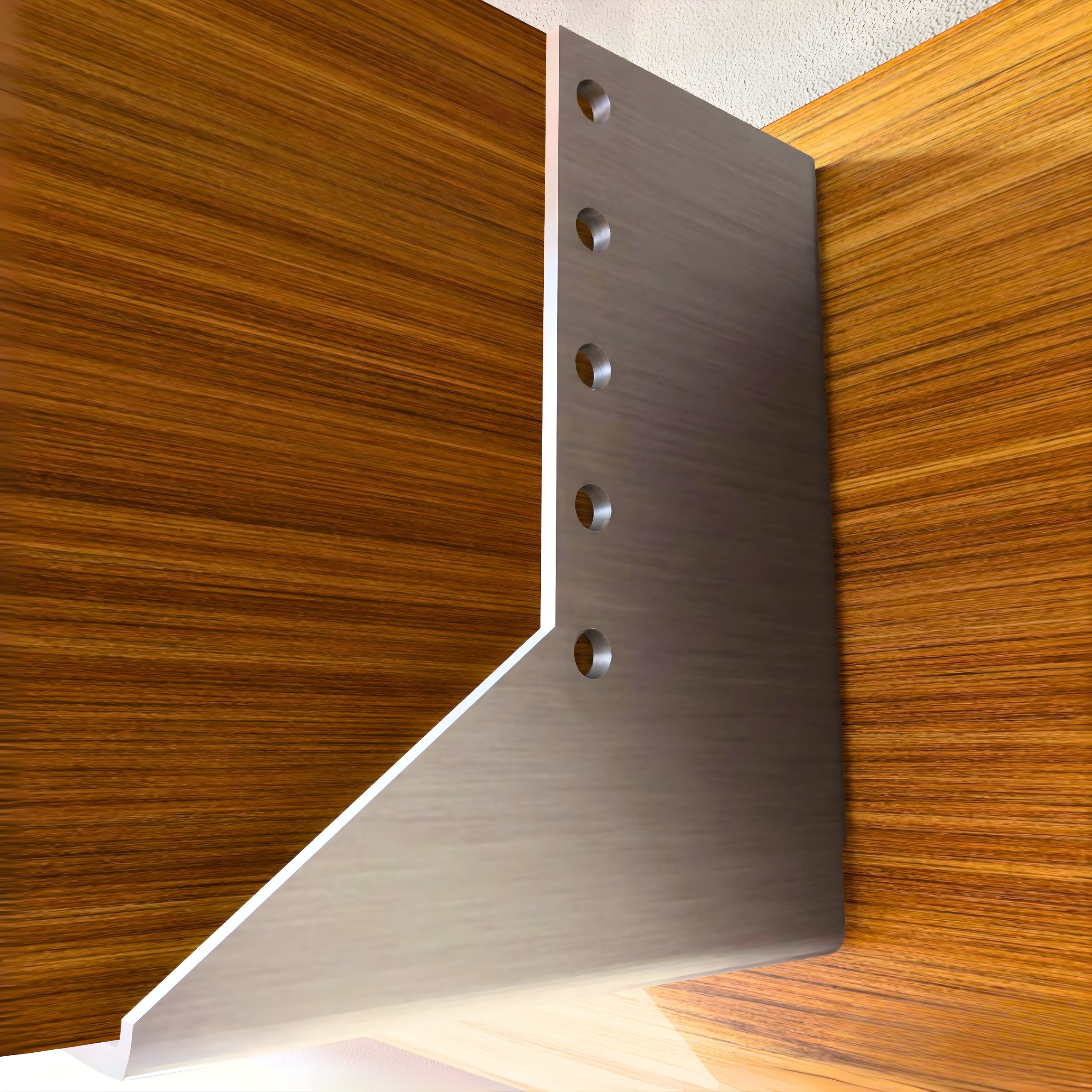

PRODUCT - Beam shoes are primarily used in timber construction to create a stable connection between secondary and main beams. They can also connect timber beams to masonry and concrete. Beam shoes type B feature two lugs angled inwards, ensuring part of the joist hanger is hidden after installation for a clean, concealed finish.
FEATURES - Pre-drilled holes with diameters of 5 mm, 9 mm, 11 mm, and 14 mm facilitate quick installation with the right fixing accessories. Both horizontal beams and vertical posts can be securely fastened in the concealed joist hanger. Hole quantity varies by timber connector size, with details provided for each bracket.
USABILITY - Thanks to the sendzimir galvanized surface of the steel, our joist hangers are optimally protected against external weather influences, ensuring long-lasting durability in outdoor projects.

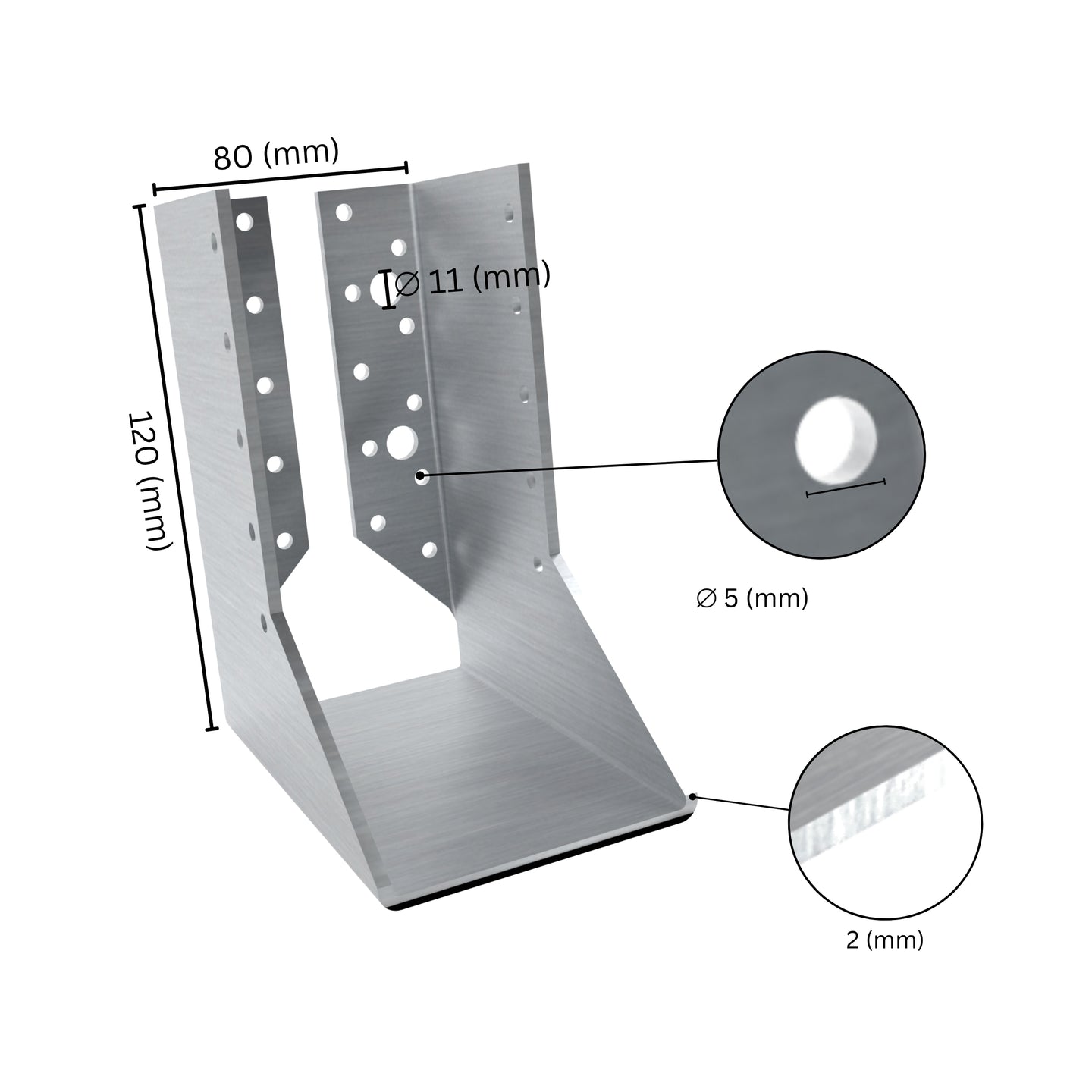

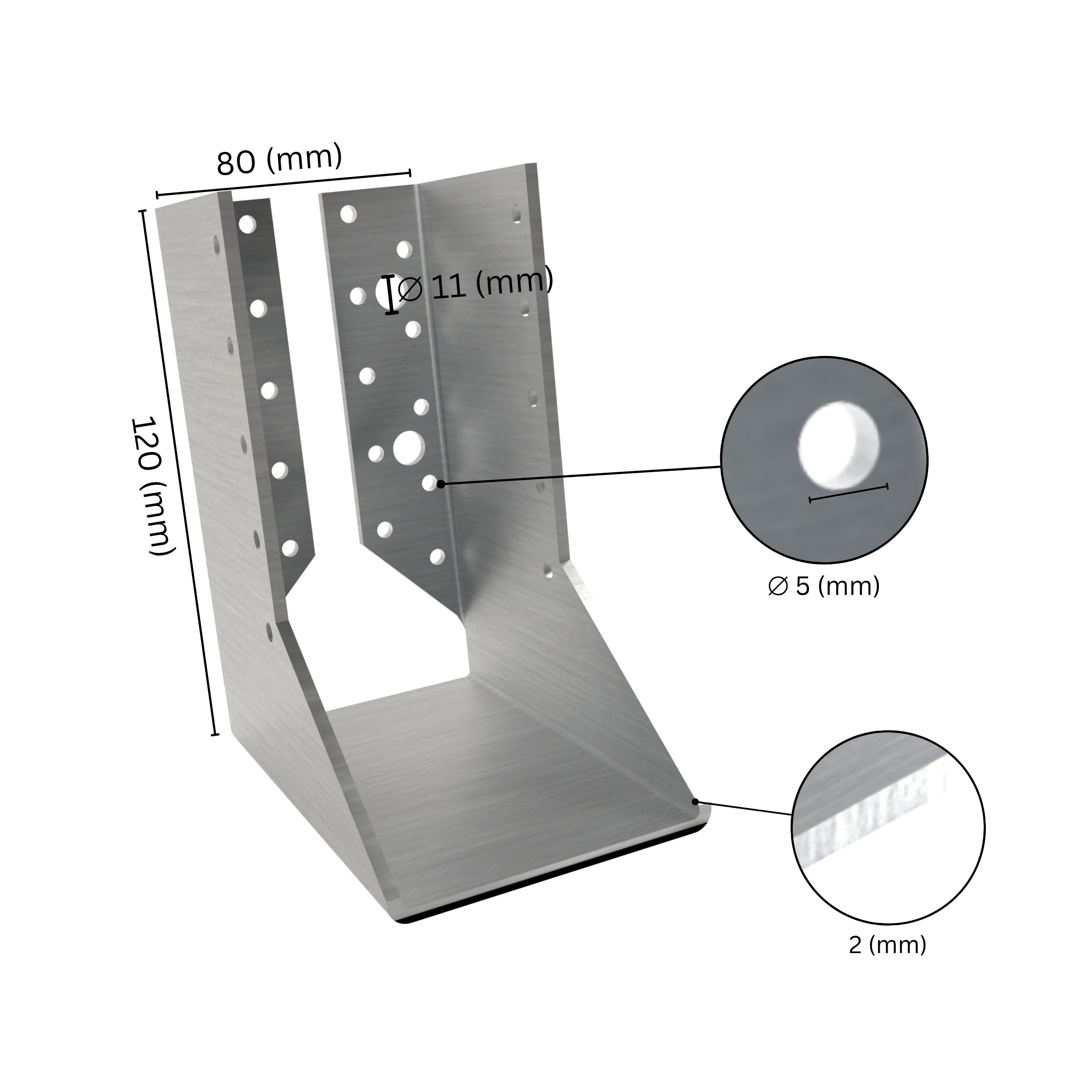

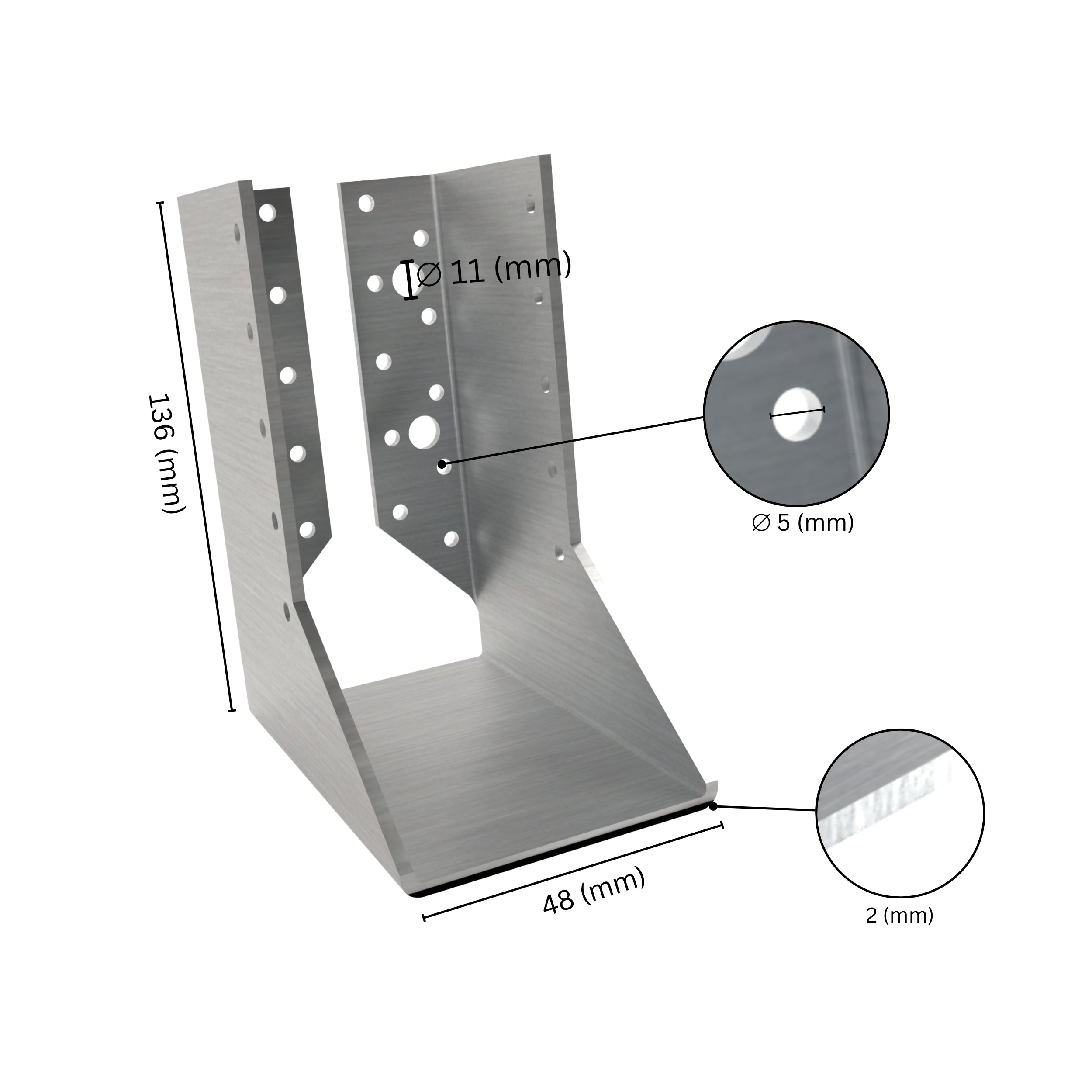

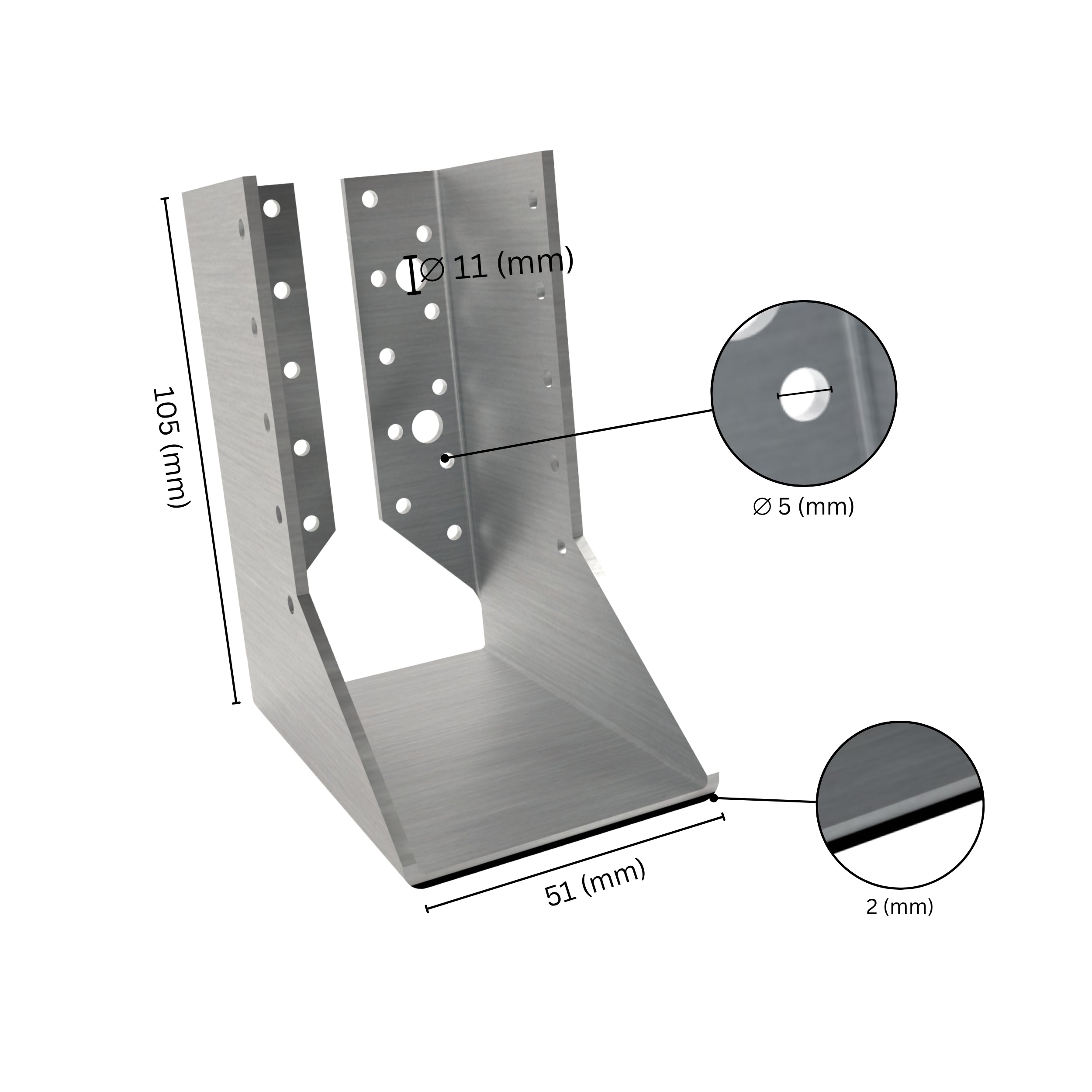

VERSATILITY - The joist hanger is available in the following sizes: 80 x 120 x 2 mm (30 holes Ø 5 mm, 4 holes Ø 11 mm), 100 x 140 x 2 mm (35 holes Ø 5 mm, 4 holes Ø 9 mm, 4 holes Ø 14 mm), making it suitable for a wide range of construction needs.

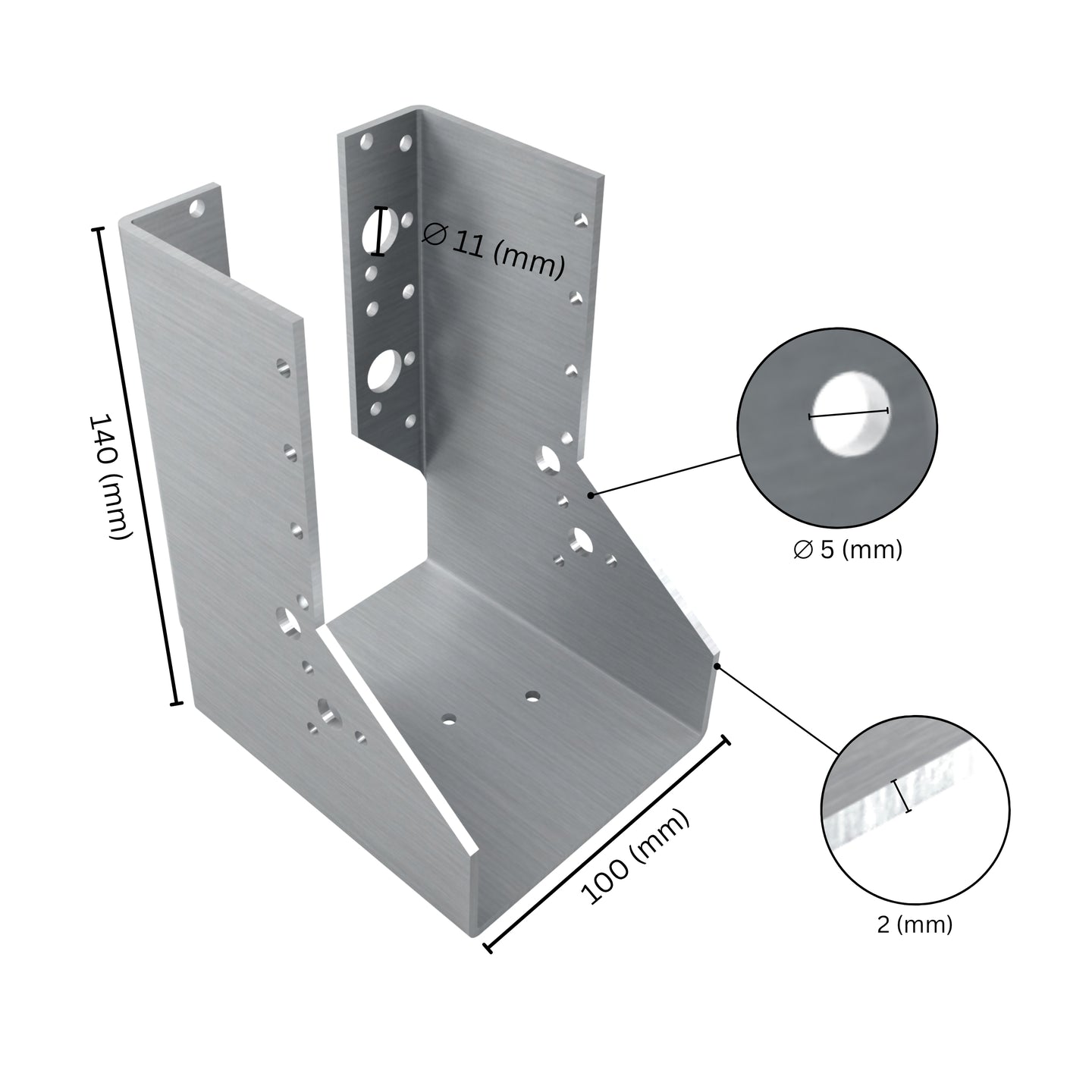

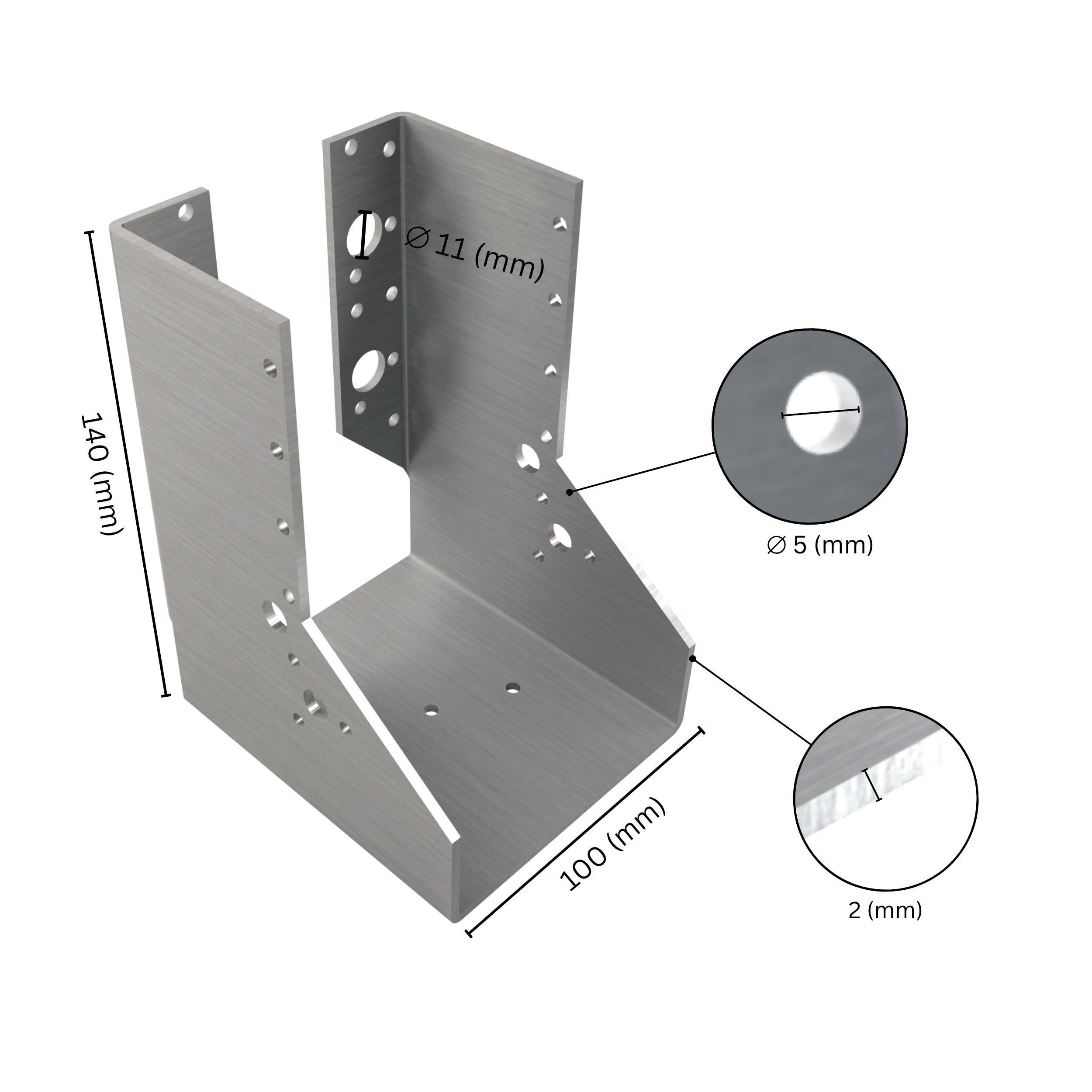

TECHNICAL DATA - Dimensions: 100 x 140 x 2 mm - Length: 140 mm - Width: 100 mm - Holes: 35 holes Ø 5 mm - Holes: 4 holes Ø 14 mm - Holes: 4 holes Ø 9 mm - Material thickness: 2 mm - Product type: Wood connector - Material type: Steel - Finish: Sendzimir galvanized
