How to Use Self-Drilling Screws (Without Destroying Your Project)

The first time I used a self-drilling screw, I thought it would be a walk in the park. I pressed the drill, pushed hard and before I knew it, the screw snapped in half. And I had a one-sided mess where a clean connection should’ve been.

So, it turns out, self-drilling screws are simple to use only when you know the right way to handle them. Pushing too hard, going too fast, or using the wrong screw can mess up your work.

If you want clean results, no cracked surfaces and no stripped screws, then read this guide on how to use self-drilling screws. I’ll share a step-by-step guide so you won’t face any problems while installing a screw.

Step 1: Pick the Right Self-Drilling Screw for Your Project

First things first, make sure you’re using the right tek screw for the task at hand. The right one makes everything smoother and helps you avoid headaches down the line. Picking the wrong screw is like using the wrong key in a lock. It might force its way in, but it’s going to cause damage.

Consider these factors while picking the screw:

Material thickness: Thicker materials need a longer drill point. Your screw length should exceed the combined thickness of the material being fastened.
Drill point size: Self-drilling screws come with different point sizes (#2 to #5), with larger numbers indicating thicker material capacity.
Thread type: Choose coarse threads for softer materials like wood and fine threads for metal applications.
Head style: Consider hex, pan, or flat heads depending on your aesthetic and functional requirements.

self-drilling screw over a wooden block next to a reference board displaying various coarse, fine thread, and head style self-drilling screws.

Too short or too long screws can either fail to grip properly or damage the surface. For outdoor projects like decking or terrace work, always go with stainless steel screws to prevent rust.

Step 2: Prepare Your Power Tool and Materials

Even though self-drilling screws eliminate the need for pilot holes, prep is still important. So, set up your workspace properly:

Use a quality power drill: While basic drills can work, a screwdriver with adjustable torque settings is ideal.
Select the correct bit: Most commonly, you'll need a hex driver bit that matches your screw head.
Set appropriate speed: Medium to high speed works best for most self-drilling applications.
Secure your materials: Clamp or hold your materials together before beginning.

Before you drill, make sure to pinpoint where each screw goes using a pencil or marker.

drill positioned next to metal plates clamped together on a workbench with drill bits and a tape measure nearby.

Step 3: Align the Screw Properly & Apply Pressure

Place the self-drilling screw perpendicular (90°) to the material surface. It sounds simple, but even a 10° tilt can result in thread misalignment, shake during driving and weak joint integrity.

Now you're ready to start drilling:

Hold the drill perpendicular to your work surface.
Apply steady pressure to help the drill point penetrate the material.
Start slowly to prevent the screw from wandering across the surface.

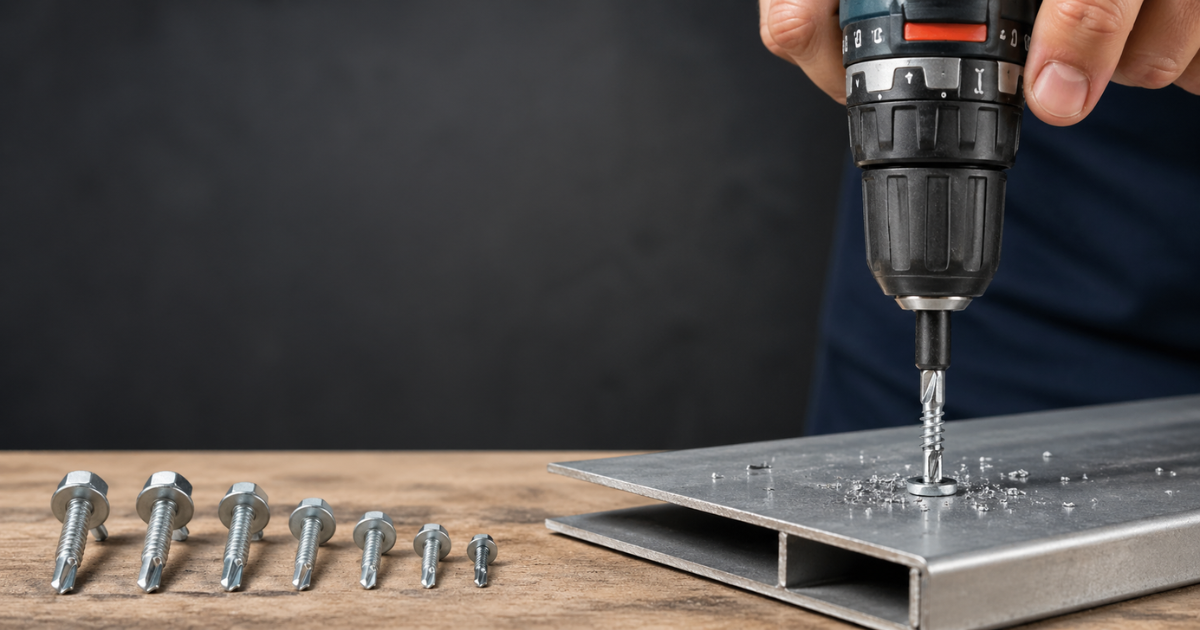

cordless drill to bore a hole perpendicular (90 degrees) into a flat sheet of metal resting on a surface.

The drill point will do the work of creating the hole, eliminating the need for pre-drilling. Self-drilling screws can save significant time (40%) compared to traditional fasteners.

Step 4: Drive with Steady Pressure (Not Speed)

Let the screw tip do the drilling. Most DIYers overdrive too fast, melting the tip or cracking the sheet.

Here’s the correct sequence:

Start slow until you hear the screw tip bite the surface.
Increase speed once the point has penetrated the material.
Maintain steady pressure as the screw cuts through.
Reduce pressure once threading begins—you’re not forcing it, you’re guiding it.
Adjust the drilling speed for different materials. For hard metals, slower and for softer materials faster.
Stop once the screw head is flush or the washer compresses.

drill to bore a hole into two stacked metal plates clamped onto a metal rectangular tube.

For multi-layer materials, you might feel slight resistance as the screw transitions between layers; this is normal. Don’t panic. Continue with consistent pressure until the screw penetrates all layers.

Step 5: Drive to Proper Depth and Verify Installation

In the final step:

Drive the screw until the screws head or washer sits flat against the surface.
Stop as soon as the screw is fully in place to avoid damaging it or tightening too much.
Verify proper installation: The screw should be flush with the surface and hold materials securely together.
Check for consistent spacing if installing multiple screws in a pattern.

self drilling screw set flush into a gray metal surface.

That’s it. In just 5 steps, you’re done with installing the self-drilling screw. Make sure to follow each point to avoid any issues.

Common Mistakes to Avoid When Using Self-Drilling Screws

Even experienced users can fall into these self-drilling screw pitfalls:

Using incorrect drill speed: Too slow won't cut effectively; too fast can cause overheating and damage to the screw or material.
Applying too much pressure: Let the screw do the work. Excessive pressure can break the drill point.
Picking the wrong screw length: Screws that are too short won’t hold things in place. On the other hand, ones that are too long can stick out and cause a hazard.
Forgetting to check materials: Some self-drilling screws aren't suitable for hardened steel or certain other materials.
Neglecting proper sealing: In outdoor applications, failing to use appropriate sealant can lead to moisture penetration and corrosion.
Cheap screws: You’ll pay for it later when they rust or snap. They may bend while installing.
Wrong bit size: Make sure your drill bit matches the size of the screw head. It’s like wearing shoes that don’t fit. If it doesn’t, the bit can slip and strip the screw.

Final Thought

Using self-drilling screws isn’t rocket science, but doing it wrong can sure make you feel like you need an expert. Self-drilling screws are built to make your life easier but only if you use them the right way. A little patience, a steady hand and the right screw for the job will take you a long way.

Next time you're fastening metal or wood, you’ll know exactly what to do: Line it up, take it slow and let the screw do the heavy lifting. Above all, quality matters most. If you use cheap screws, the outcome will also not be satisfactory. So, always buy stainless steel self-drilling screws for a smooth and long-lasting installation every time.

Frequently Asked Questions

What are self-drilling screws used for?

Self-drilling screws are used in construction, woodworking, metalworking, roofing, steel framing, HVAC installation, automotive work DIY and home improvement projects. They’re perfect for securing materials like metal, wood, plastic and more.

Should you predrill for self-drilling screws?

You generally do not need to predrill for self-drilling screws. These screws have a sharp, drill-like tip that allows them to create their hole as they are driven into the material. But for very hard materials, predrilling is recommended.

Can you use self-drilling screws without a drill?

Yes, you can use self-drilling screws without a drill. As long as you have a powered screwdriver or impact driver, the screw will self-drill into the material. The drill point requires significant rotational force and speed to cut through materials. So, the drill is recommended.
