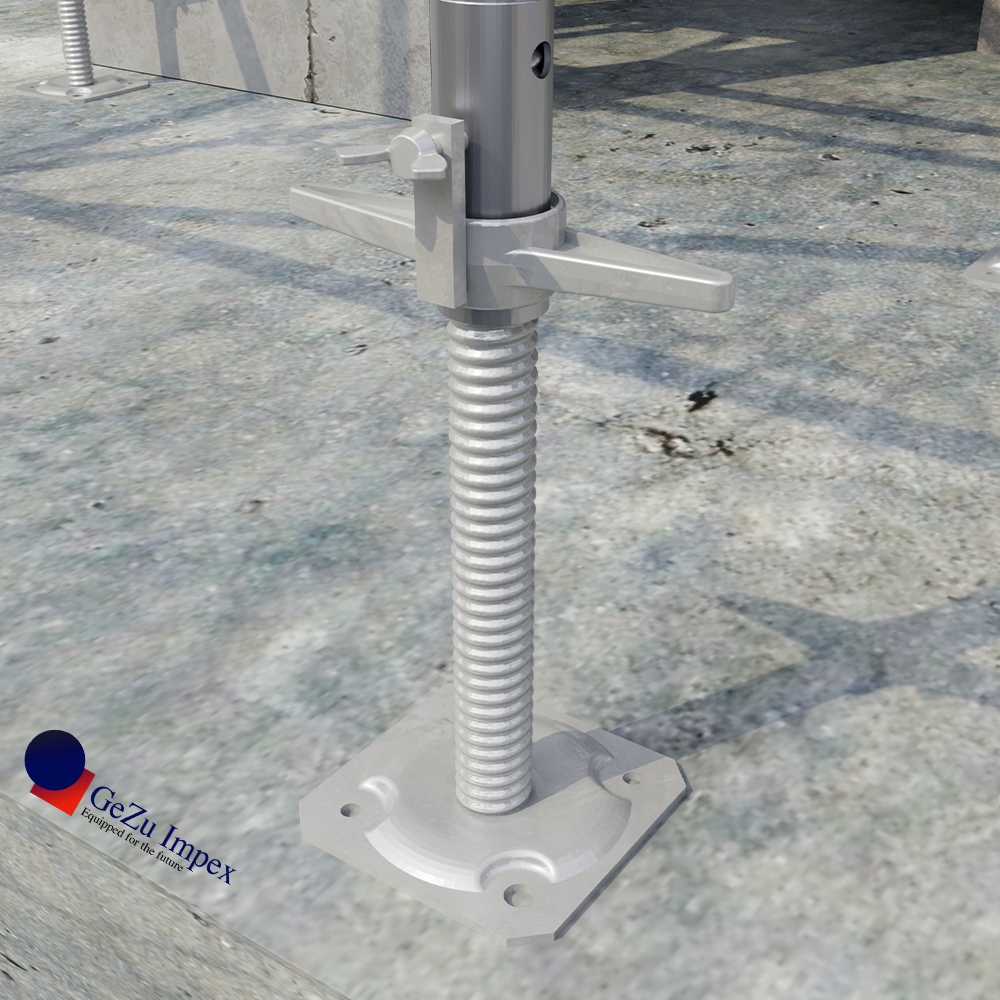

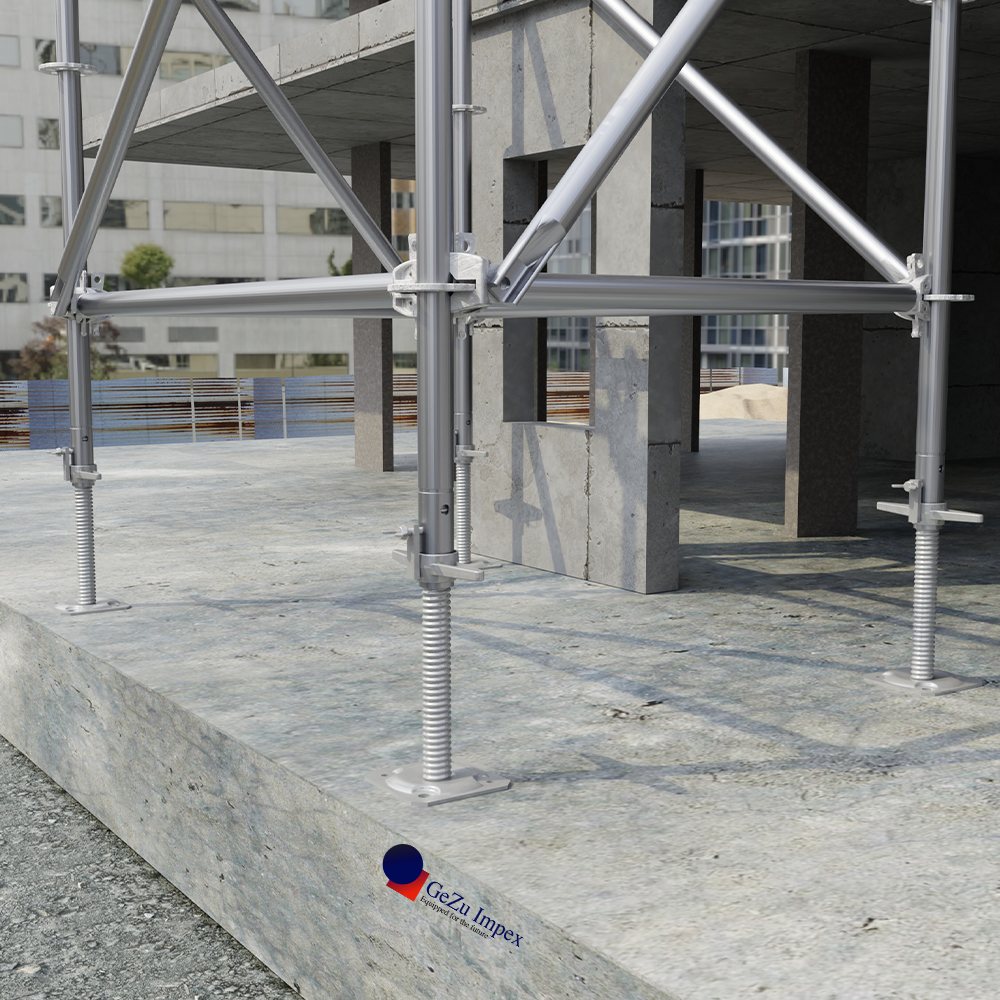

Easy Height Adjustment - You can quickly level your scaffolding on uneven ground with this scaffold leveler. Adjustable leveling screw jacks keeps your scaffold stable, so you can work safely. Available with base plates, swivel plates, or casters in 38 mm or 34 mm diameters and lengths from 30 cm to 100 cm.

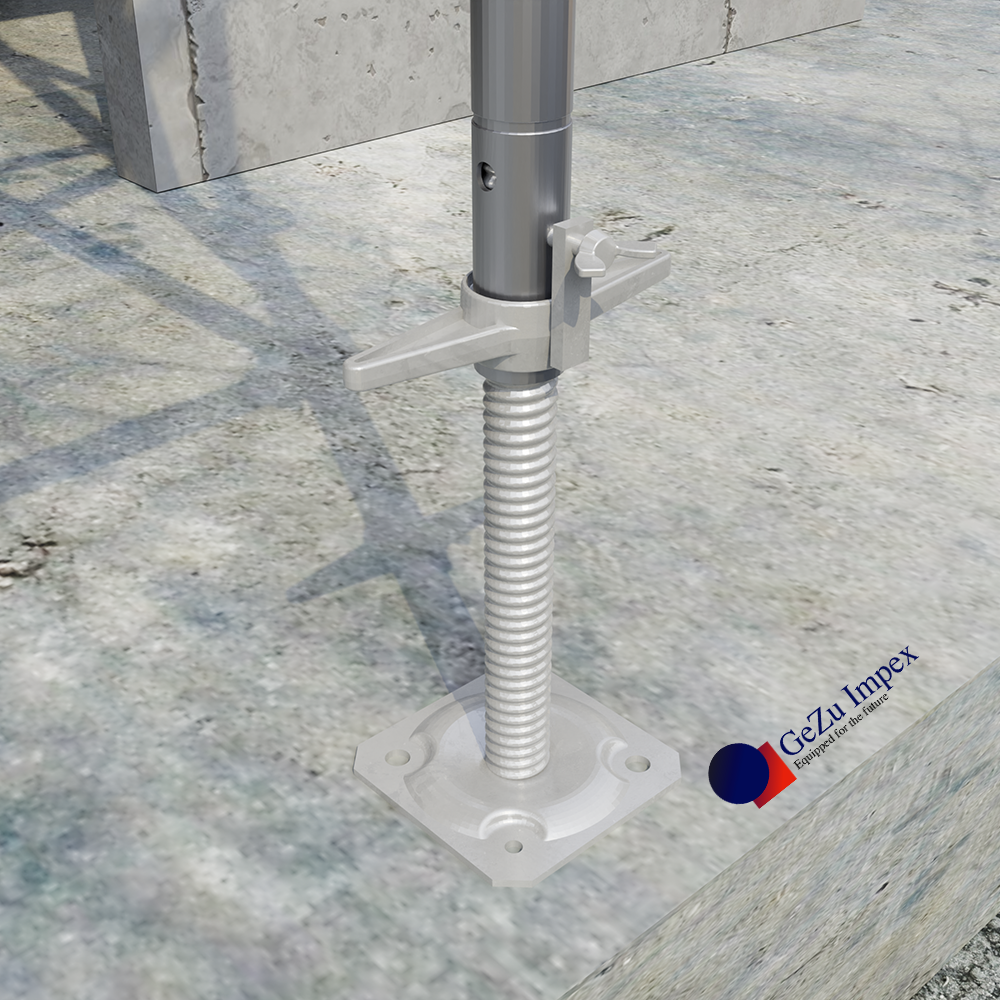

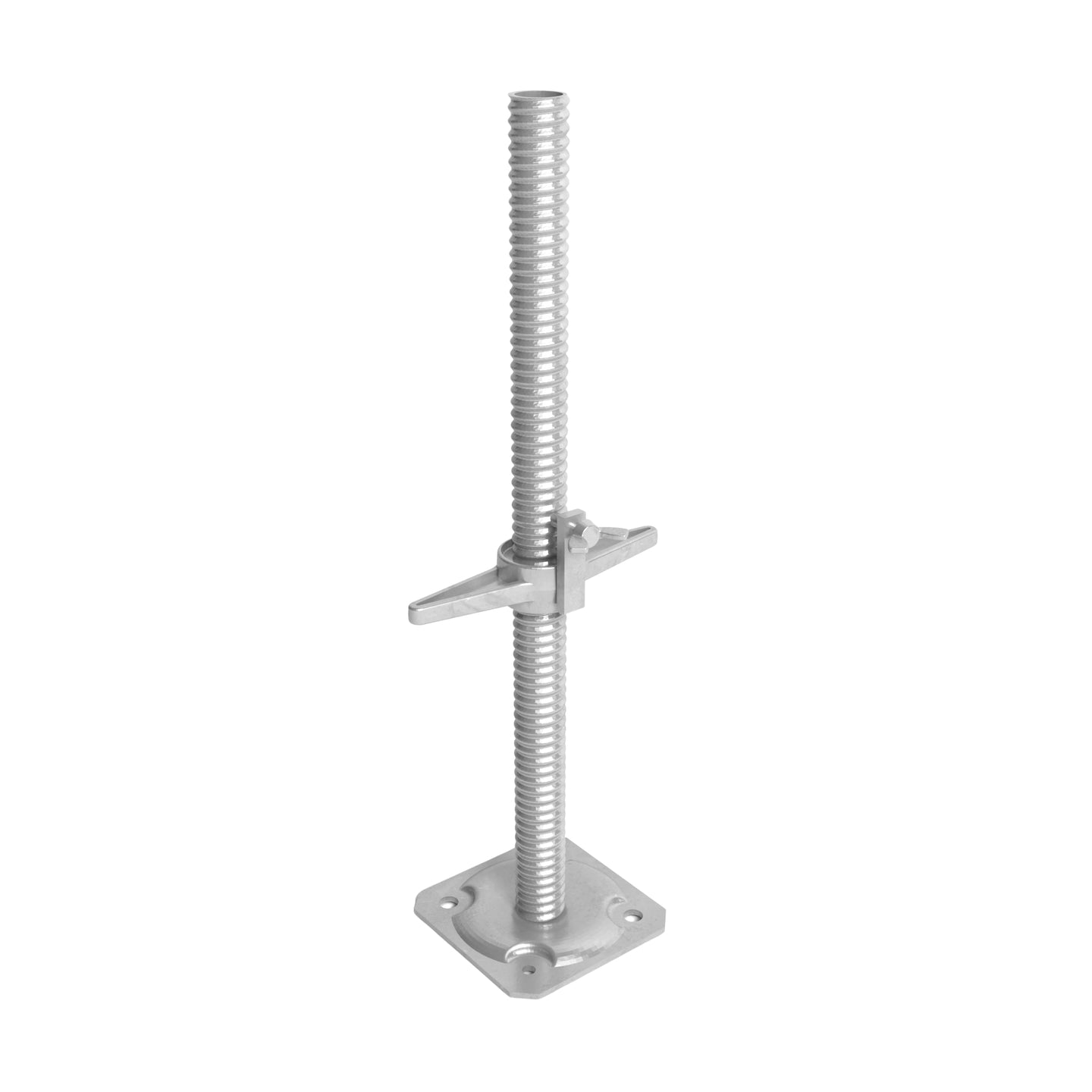

Welded Threaded Rod (Screw Rod) - Threaded rod welded to the base plate for secure support. The threads allow the height of the jack to be adjusted by rotating the jack nut. Our scaffold base jack handles heavy loads without bending, breaking, or weakening. You can use it outdoors for a long time, thanks to its electro zinc-plated coating that protects it from weather damage.

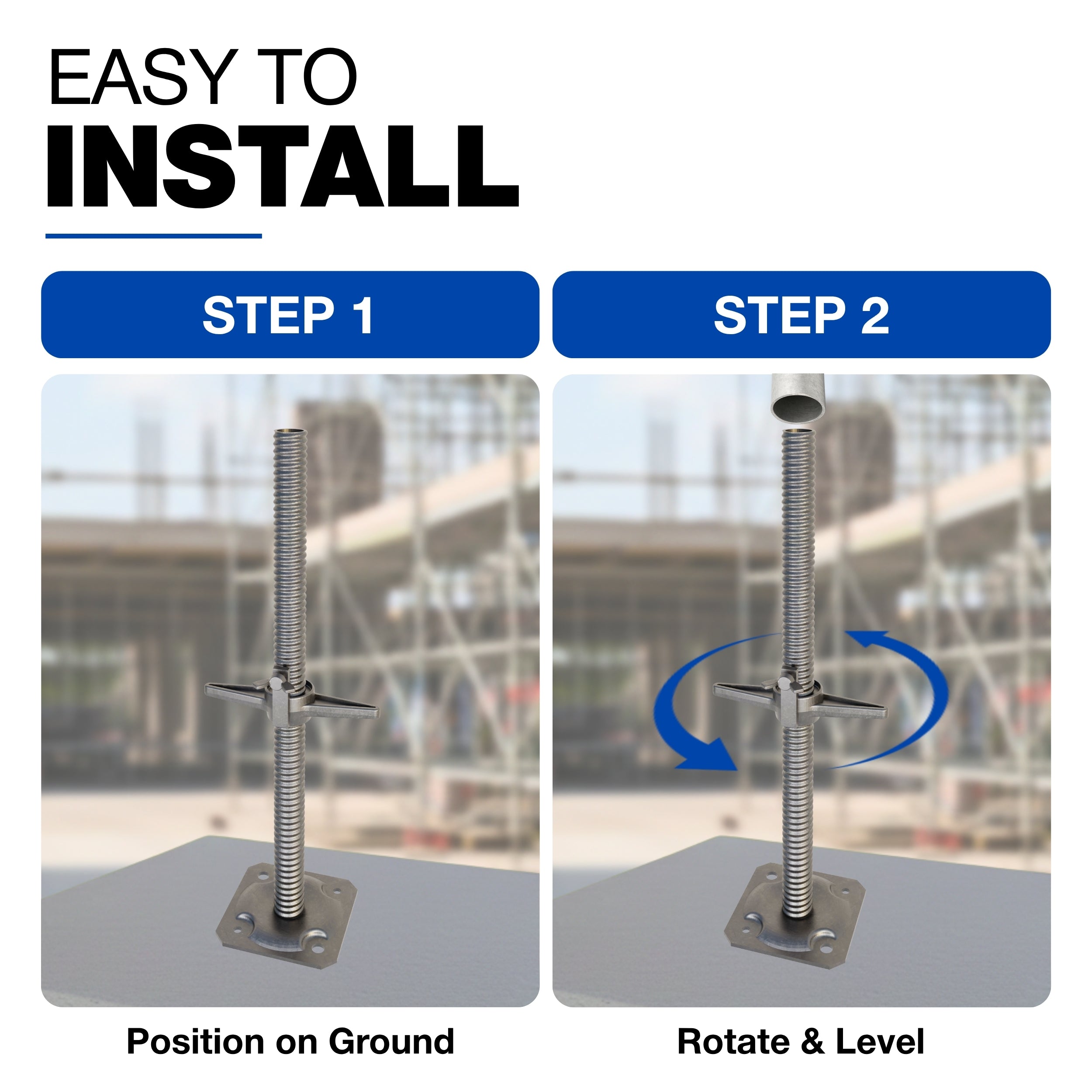

Secure Jack Nut (Adjusting Nut) - These scaffolding adjustable leveling screw jacks with base plates come with a jack nut with two side lugs that move up and down the threaded stem. By turning the jack nut, you can raise or lower the scaffold base, which allows fine adjustment of scaffold height.
Strong Locking Bolt - You can lock the jack nut in place using the butterfly-head locking bolt. This bolt passes through the side of the jack nut and, when tightened, presses against the threaded stem to lock the jack nut in place. It prevents the jack nut from moving under load, ensuring the scaffold remains at the set height.

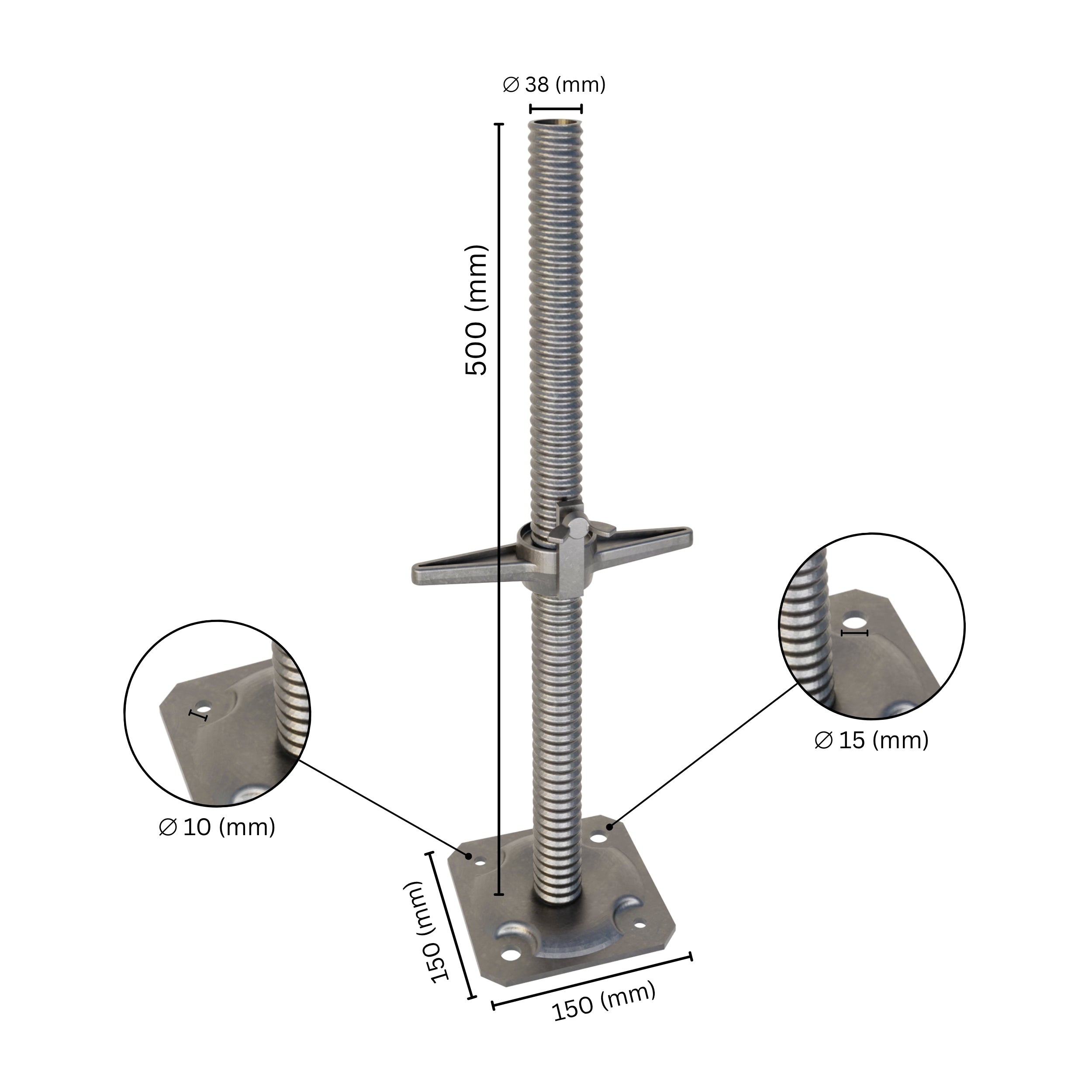

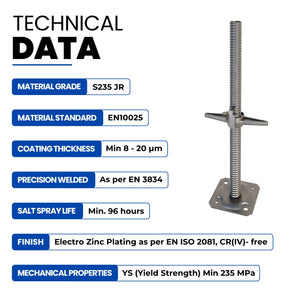

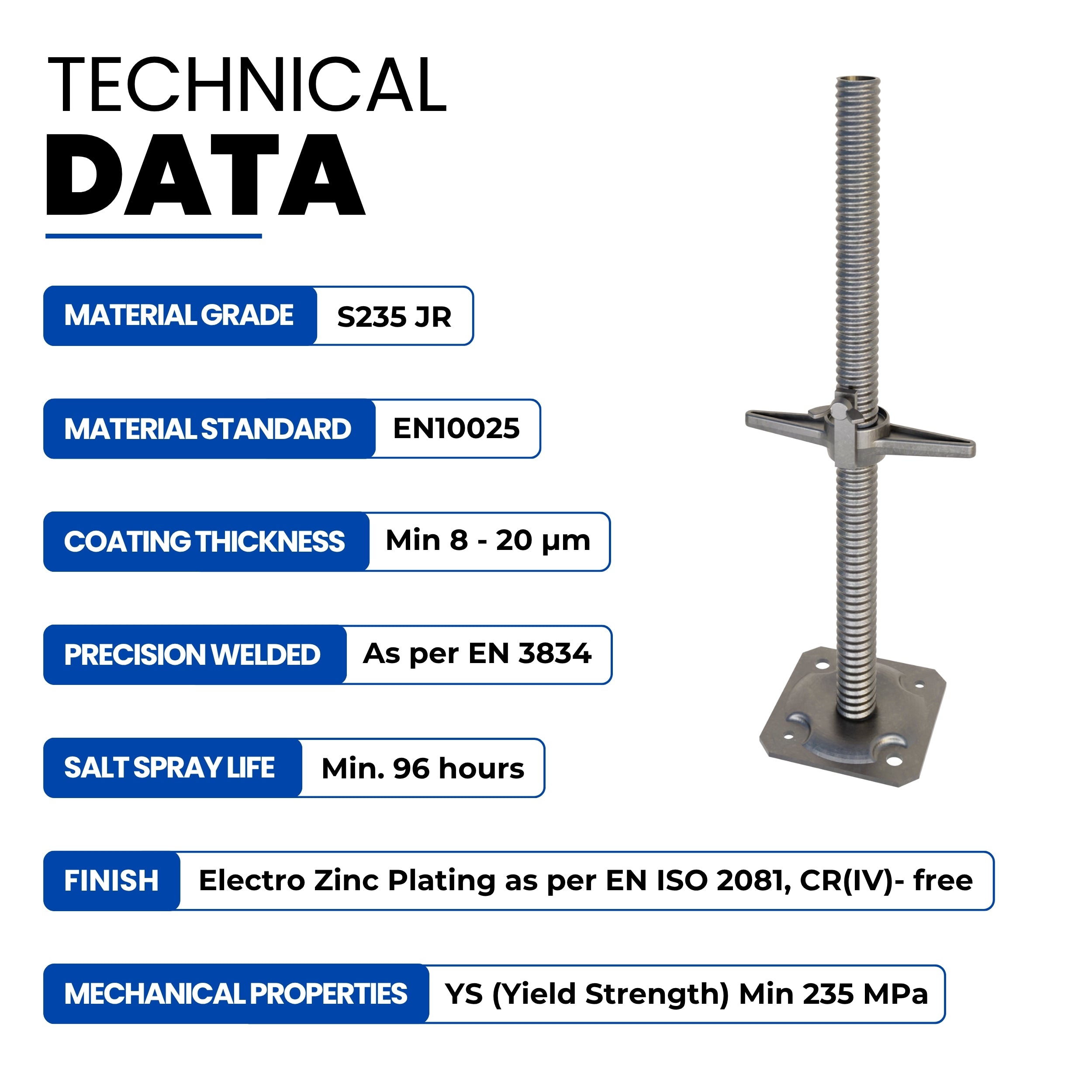

TECHNICAL DATA - Length: 500 mm (Working height - 350 mm); Diameter: 38 mm; Base plate: 150 x 150 mm; Holes in base plate: 2 holes Ø 10 mm & 2 holes Ø 15 mm; Complies with: DIN 4425; Material: Electro Zinc Plated Steel
