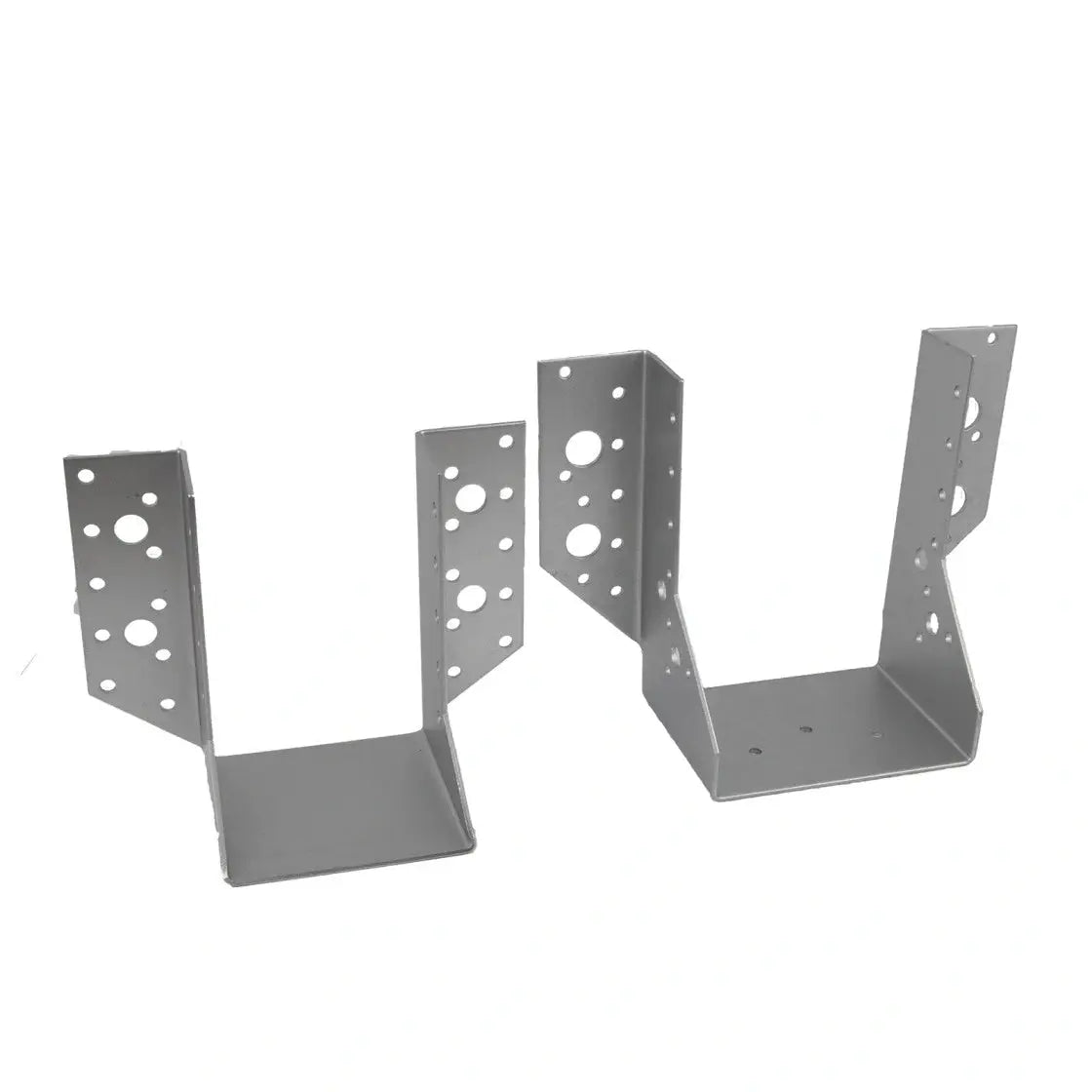

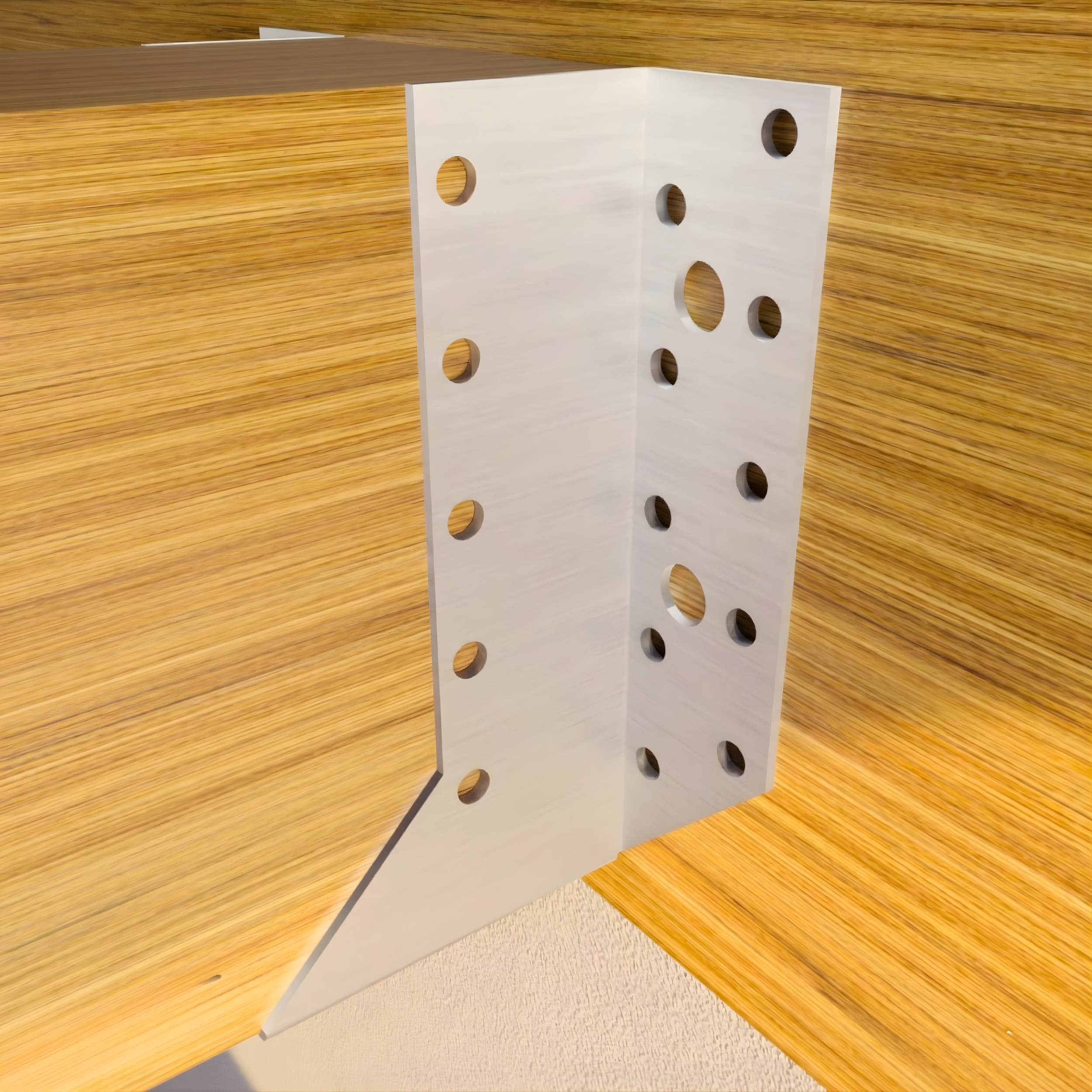

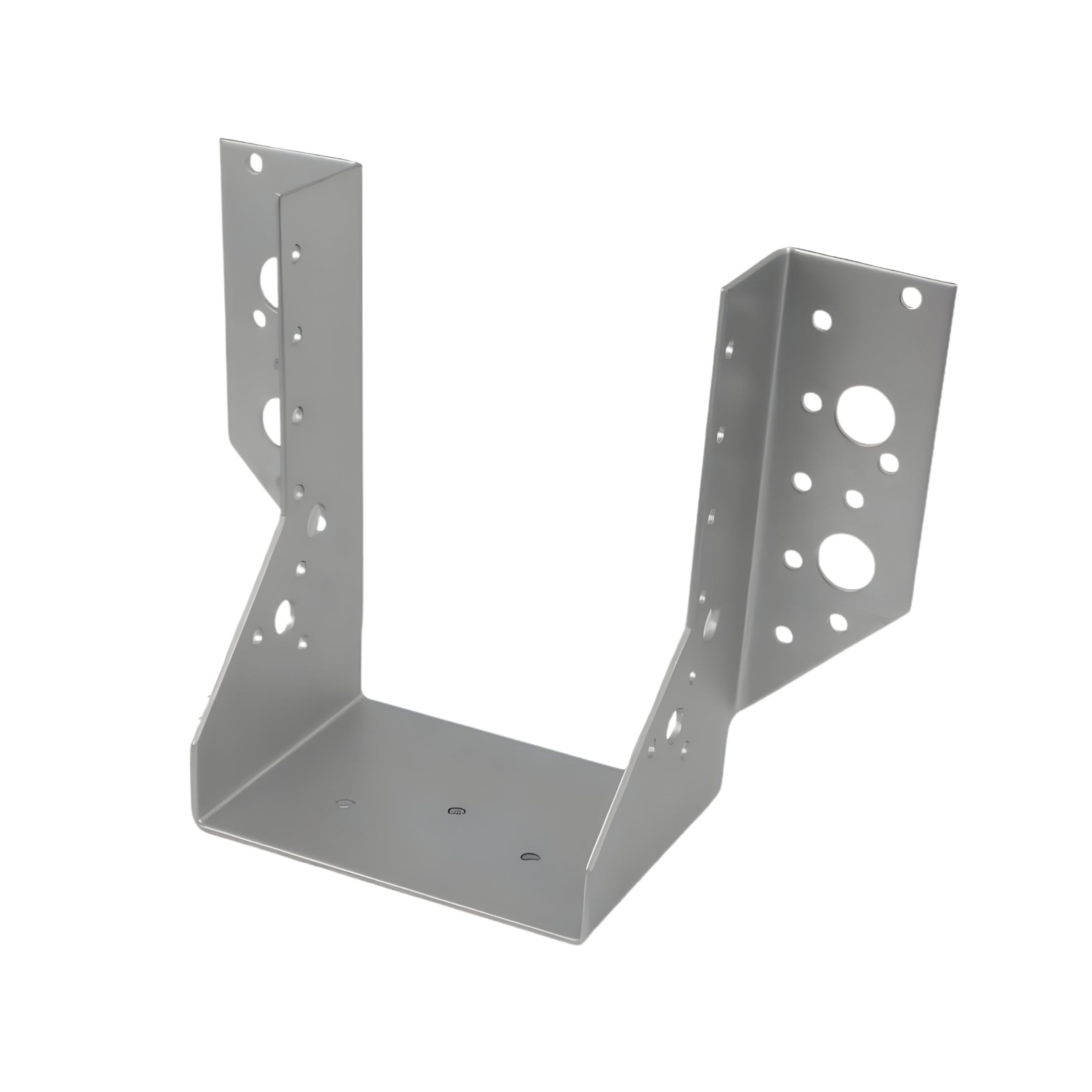

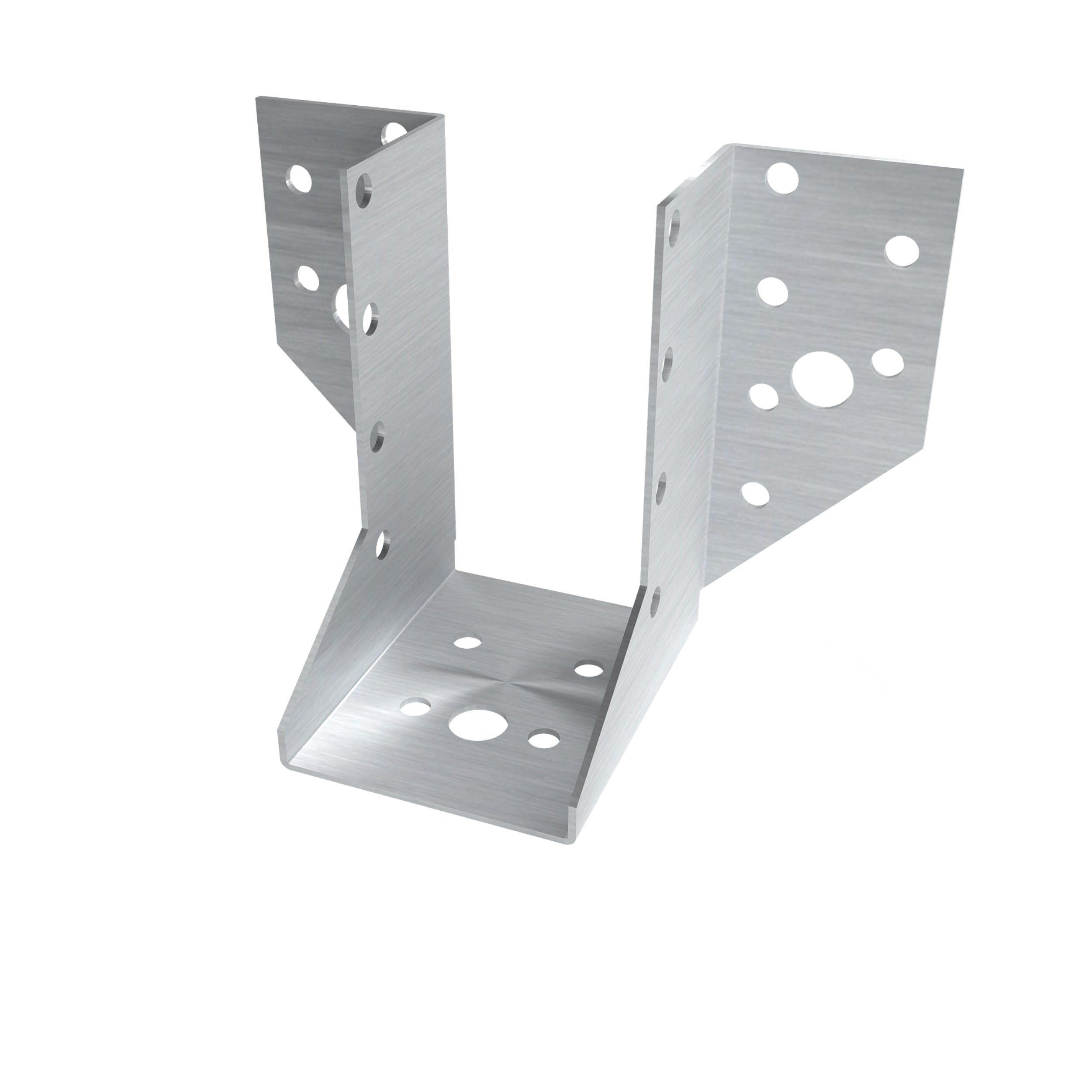

PRODUCT - Beam shoes are primarily used in timber construction to form a stable connection between secondary and main beams. They can also connect timber beams to masonry and concrete. Beam shoes type A feature two outwardly angled lugs, offering strong support like multi-truss hangers.
FEATURES - The pre-drilled holes with diameters of 5 mm, 9 mm, and 13 mm simplify installation, allowing for quick setup with the right fixing accessories. The number of holes varies based on the size of the joist hanger, with details provided in brackets next to the available sizes.
USABILITY - Thanks to the sendzimir galvanized surface of the steel, our joist hangers are optimally protected against external weather influences, making them durable and weather-resistant for outdoor projects.

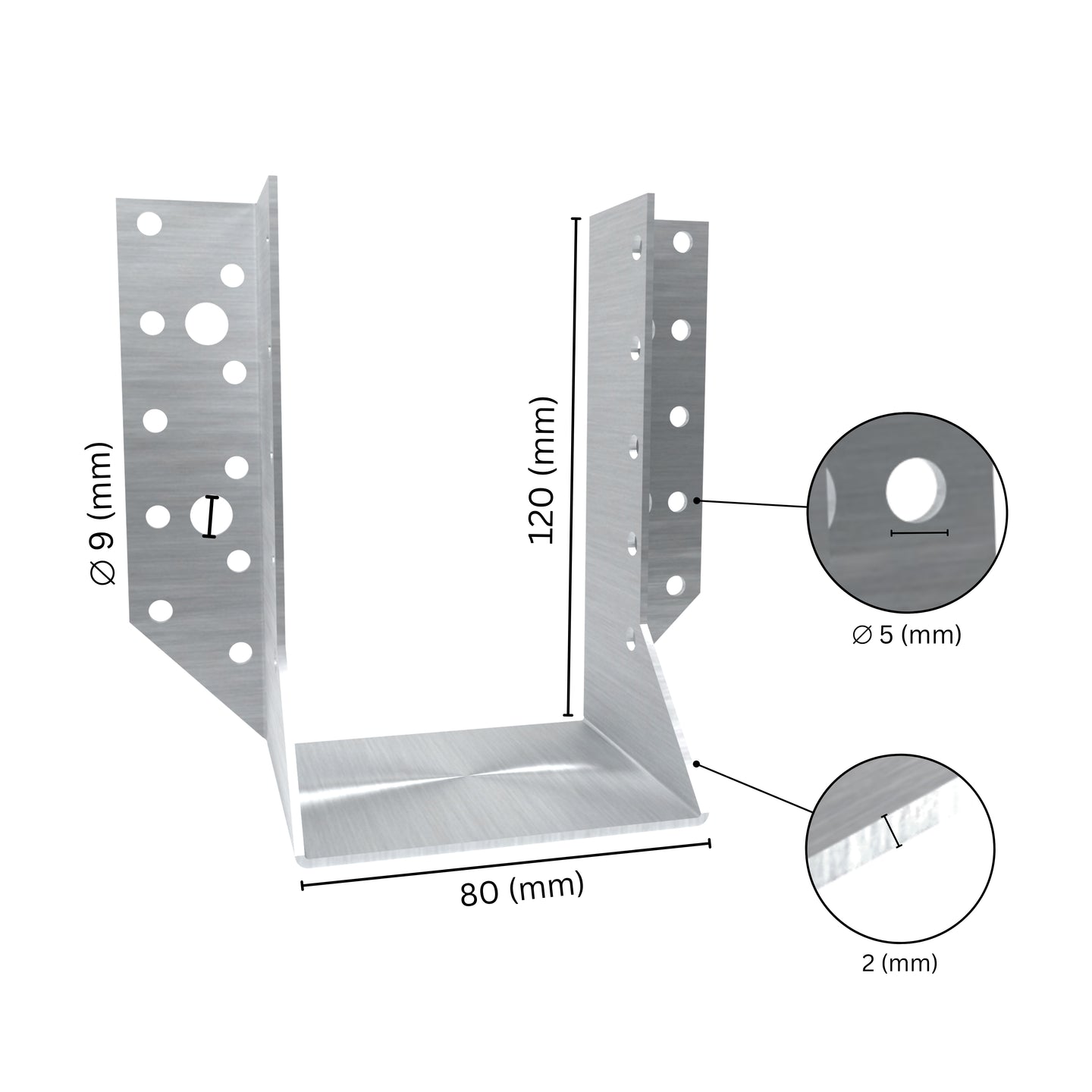

VERSATILITY - The multi-truss hanger comes in sizes: 60 x 100 mm (24 holes Ø 5 mm, 4 holes Ø 9 mm), 80 x 120 mm (30 holes Ø 5 mm, 4 holes Ø 11 mm), and 100 x 140 mm (35 holes Ø 5 mm, 4 holes Ø 9 mm, 4 holes Ø 14 mm). These hangers are perfect for supporting purlin beams and various construction needs.

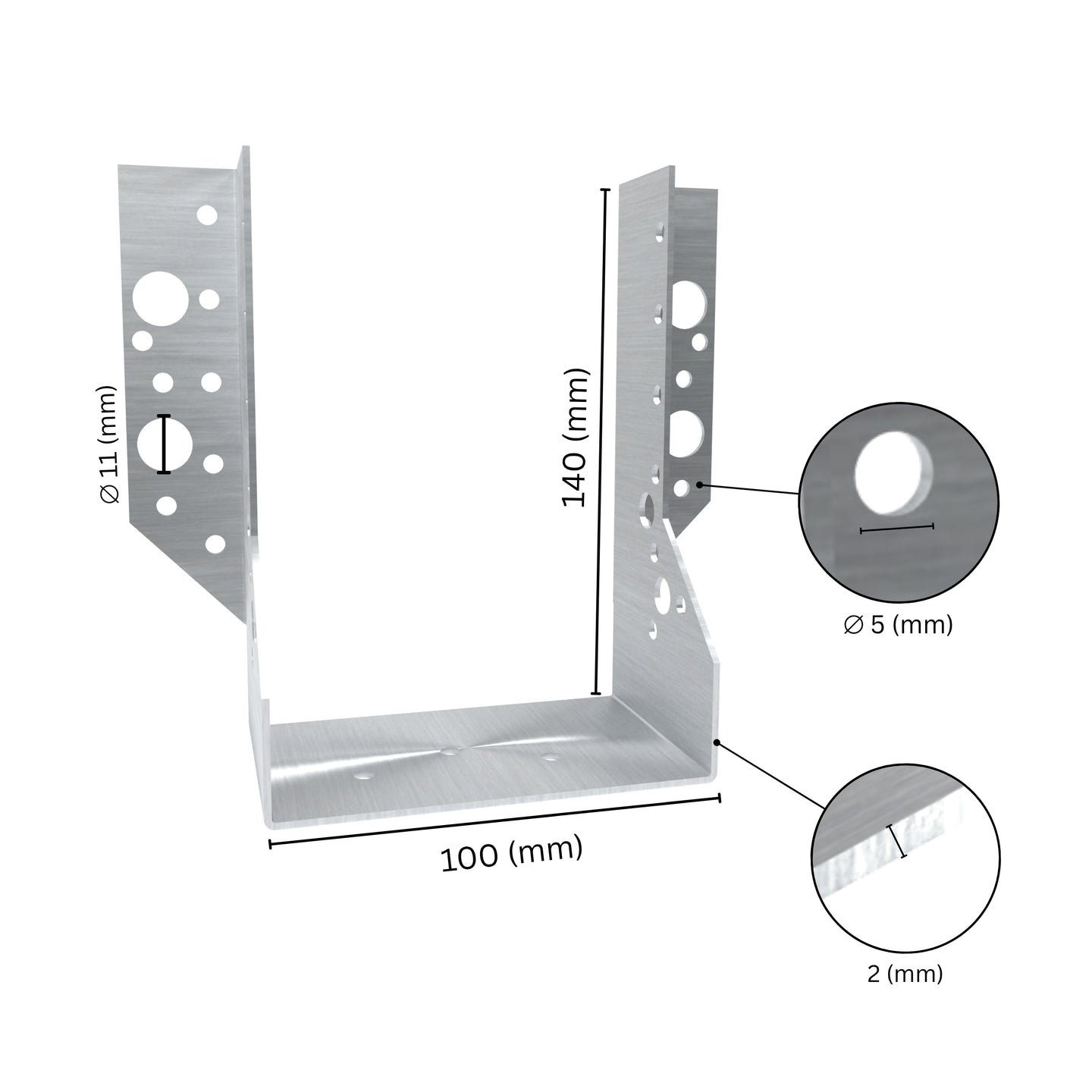

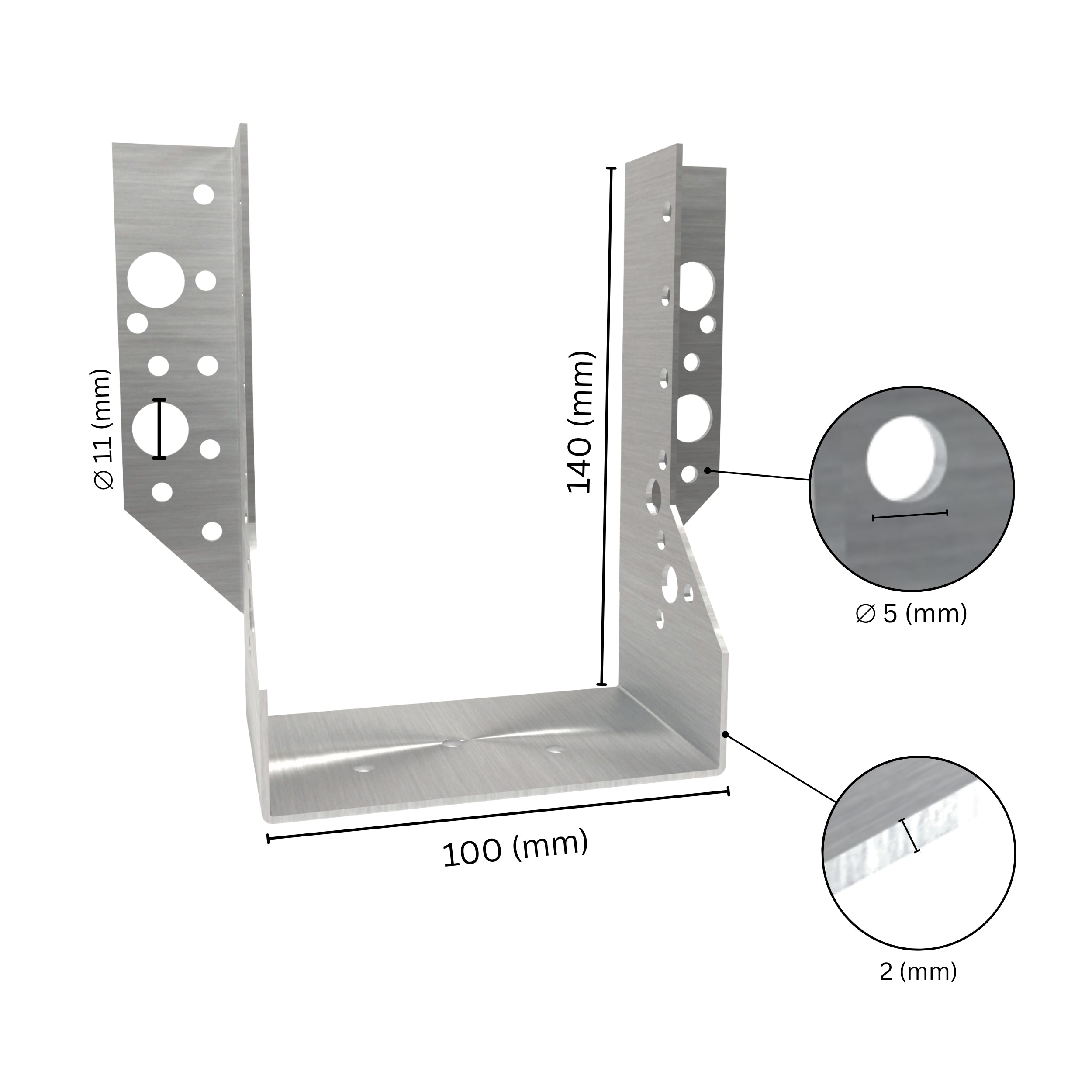

TECHNICAL DATA - Dimensions: 100 x 140 x 2 mm - Length: 140 mm - Width: 100 mm - Holes: 35 holes Ø 5 mm - Holes: 4 holes Ø 14 mm - Holes: 4 holes Ø 9 mm - Material thickness: 2 mm - PRODUCT type: Wood connector - Material type: Steel - Finish: Sendzimir galvanized
