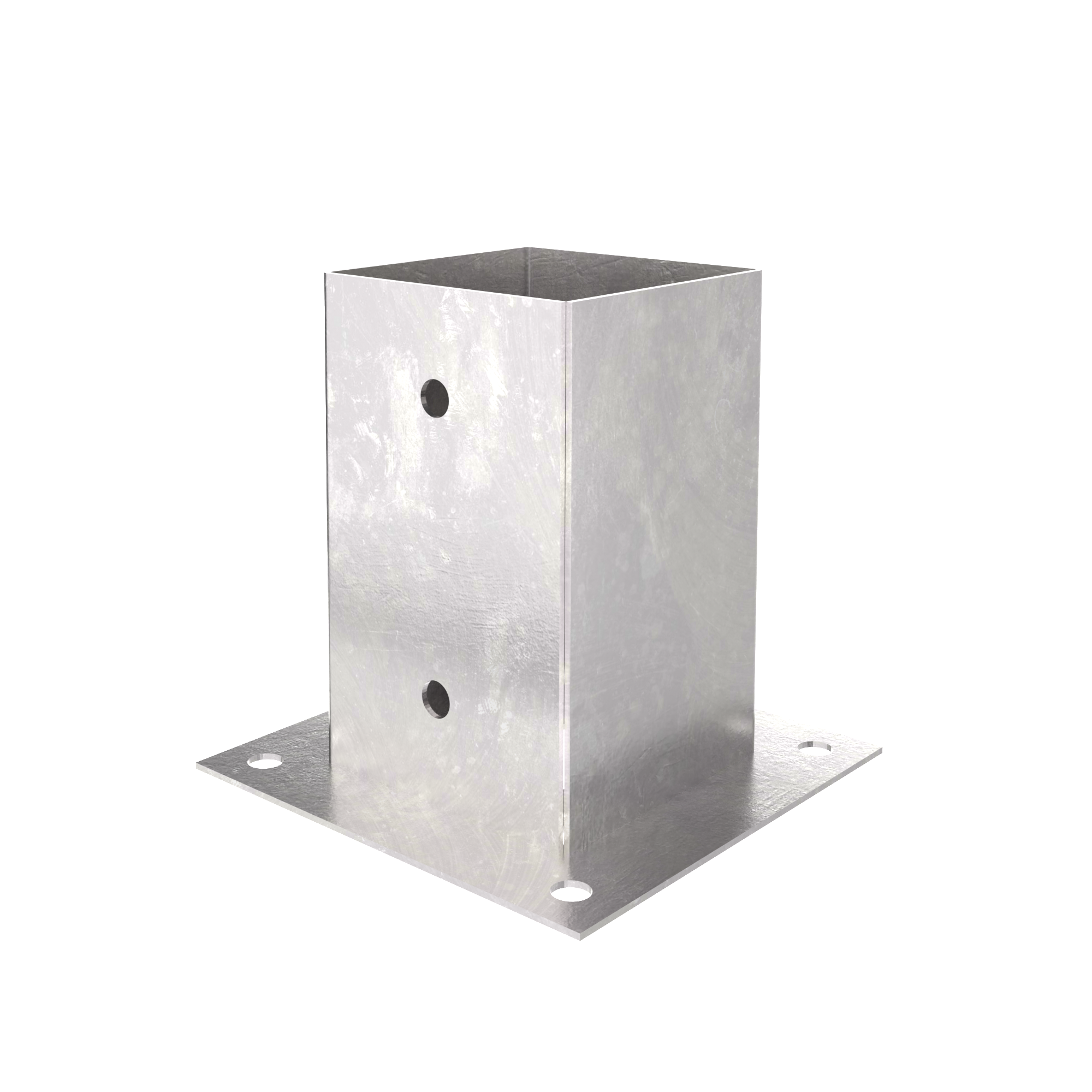

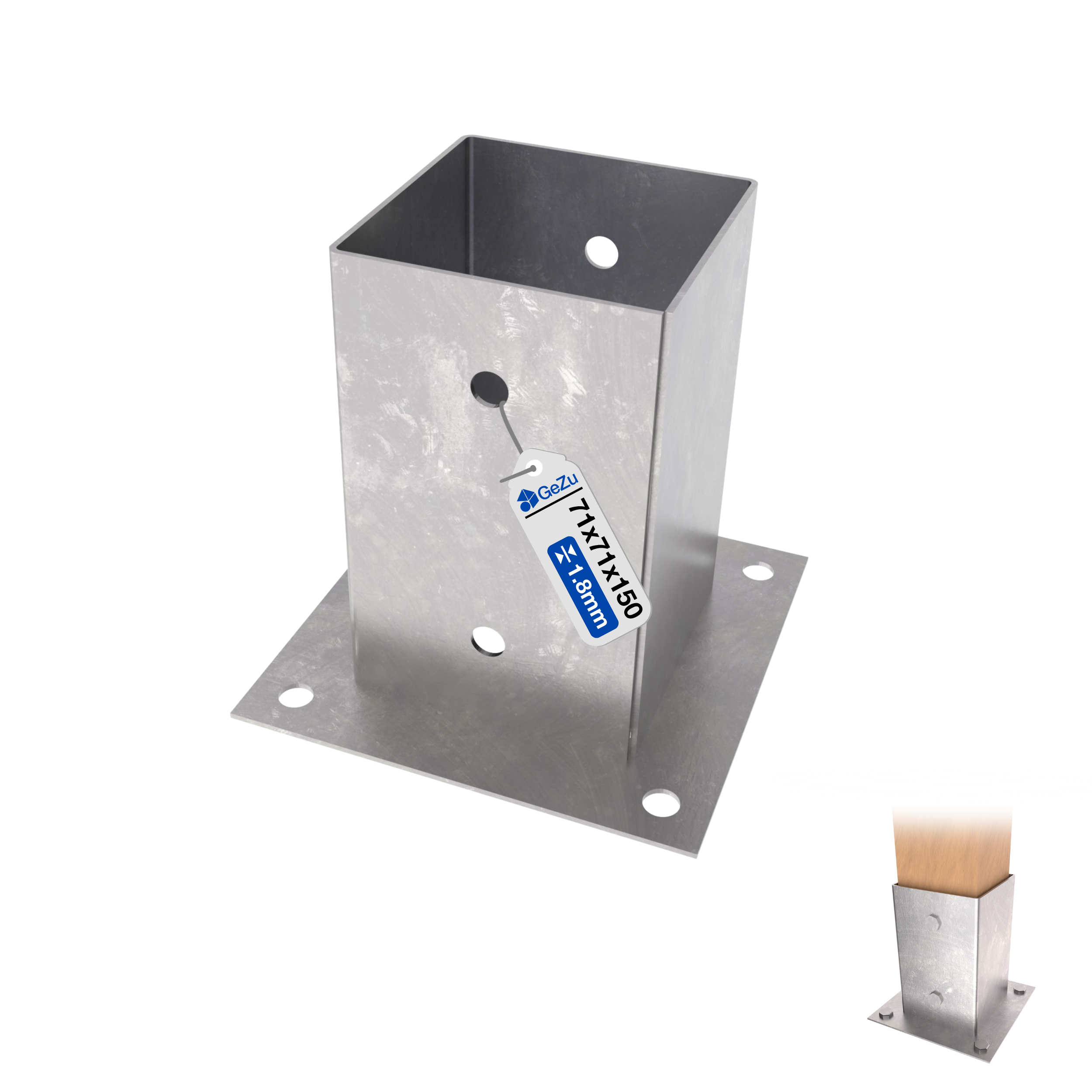

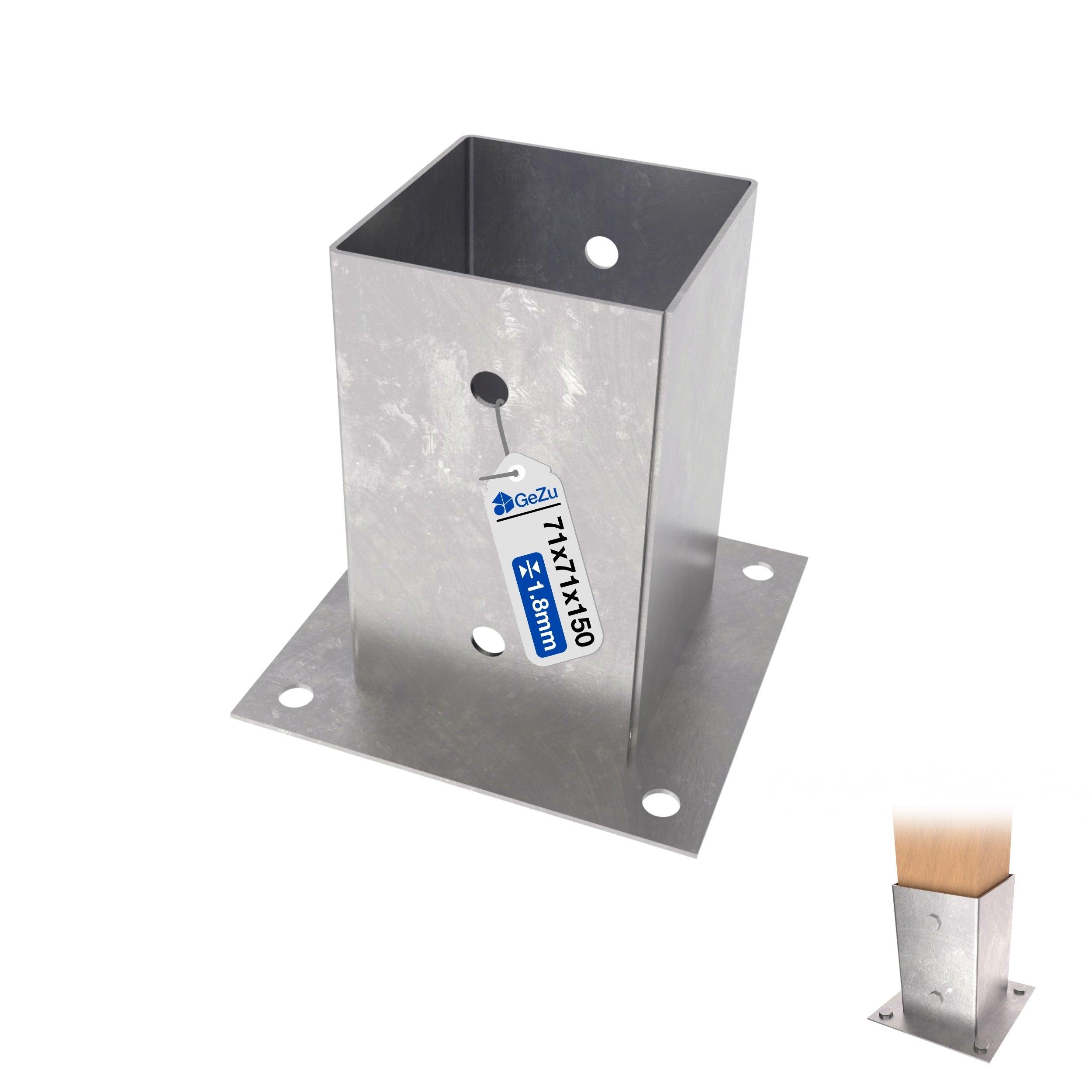

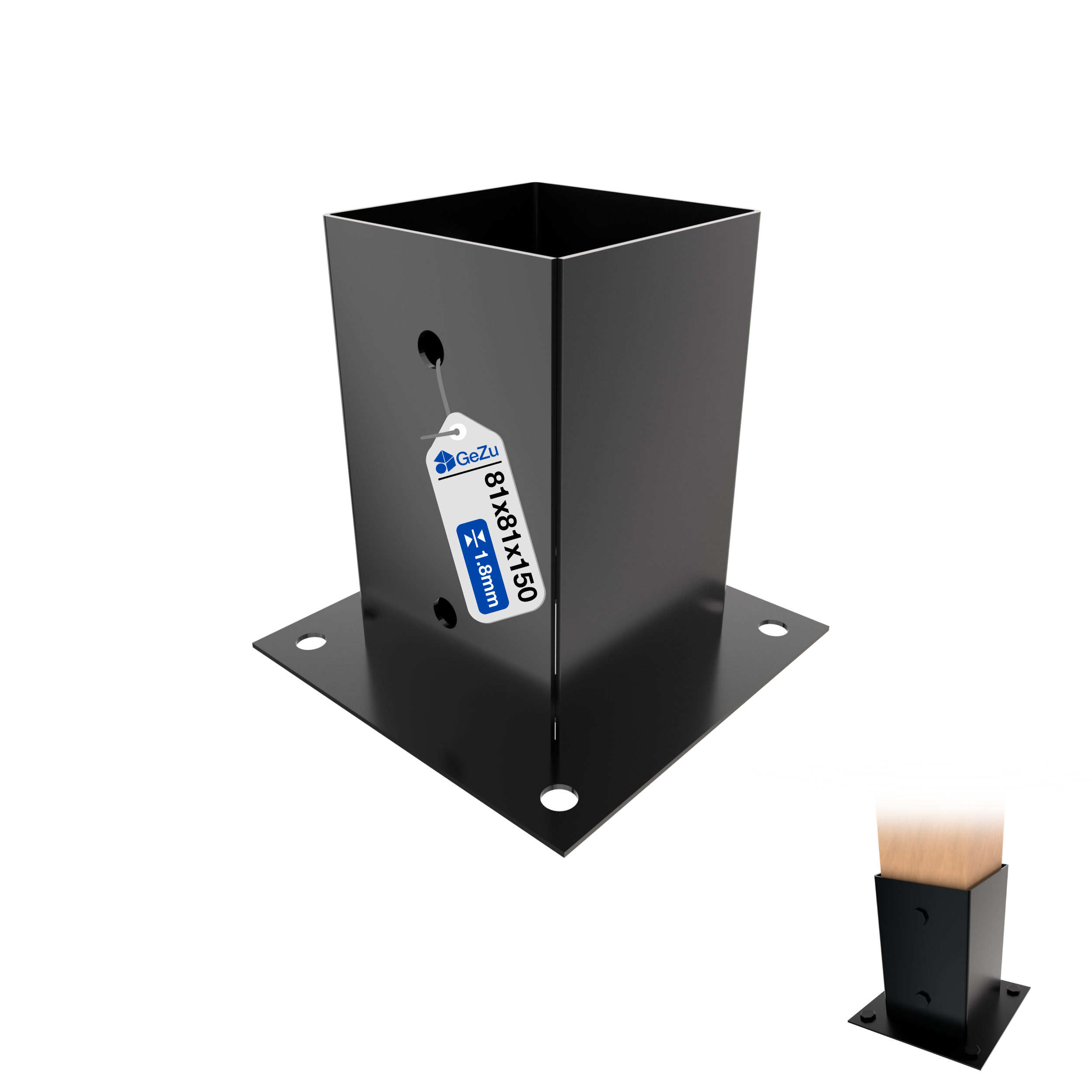

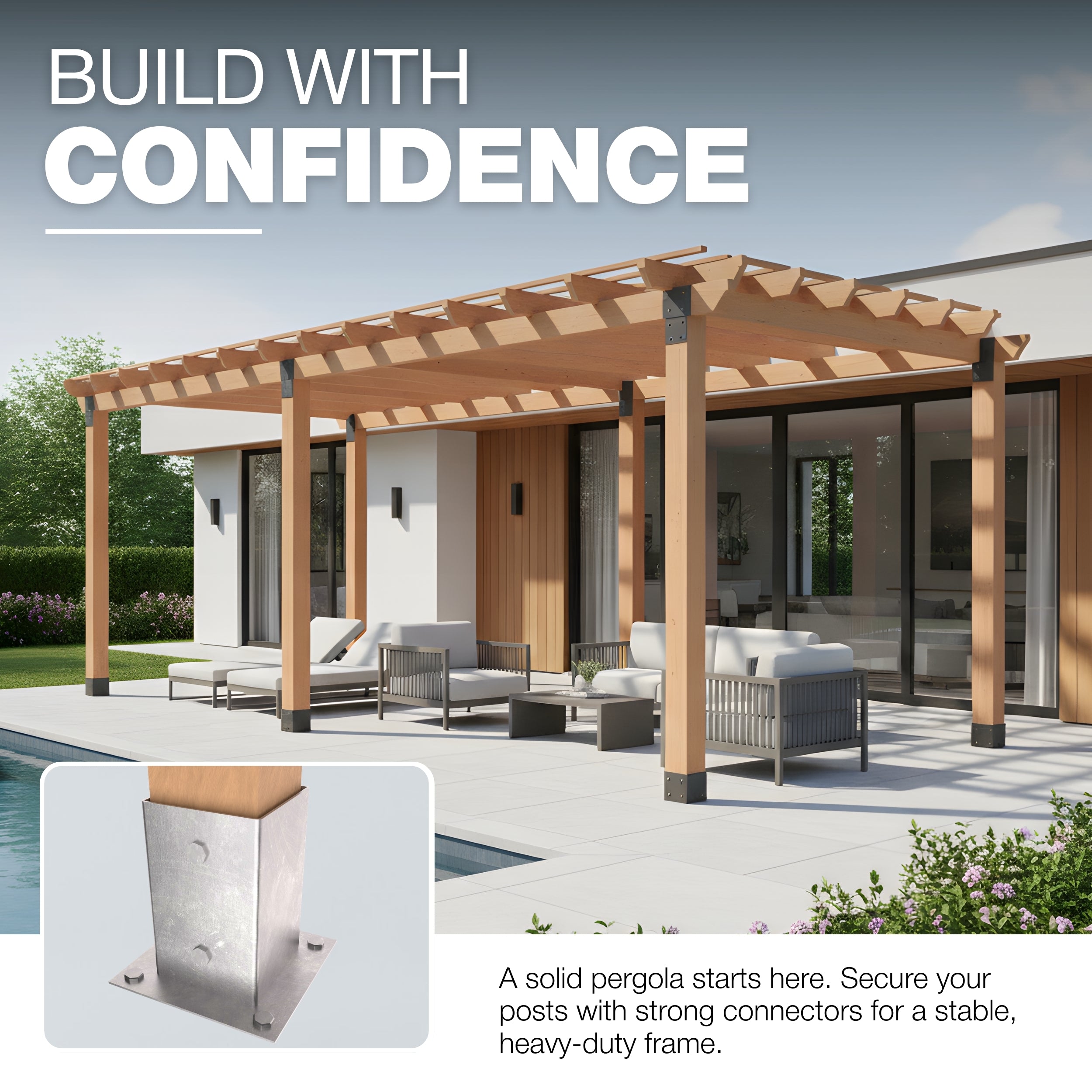

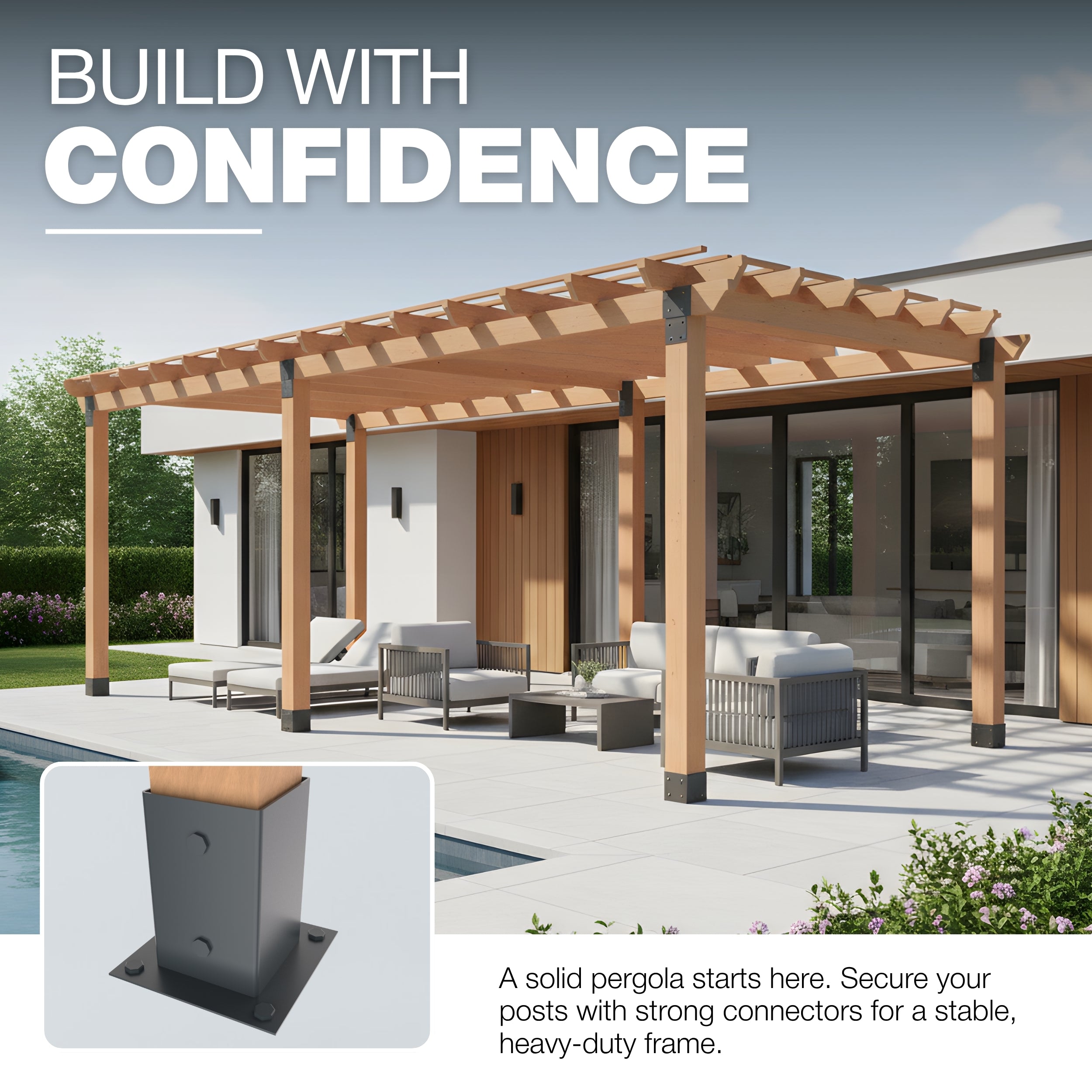

PRODUCT – Post base sleeves, also known as ground sleeves, are suitable for fixing or dowelling square posts and fence posts. They are ideal for timber constructions up to 1.50 m, providing a sturdy foundation with fence post holders for secure installations.

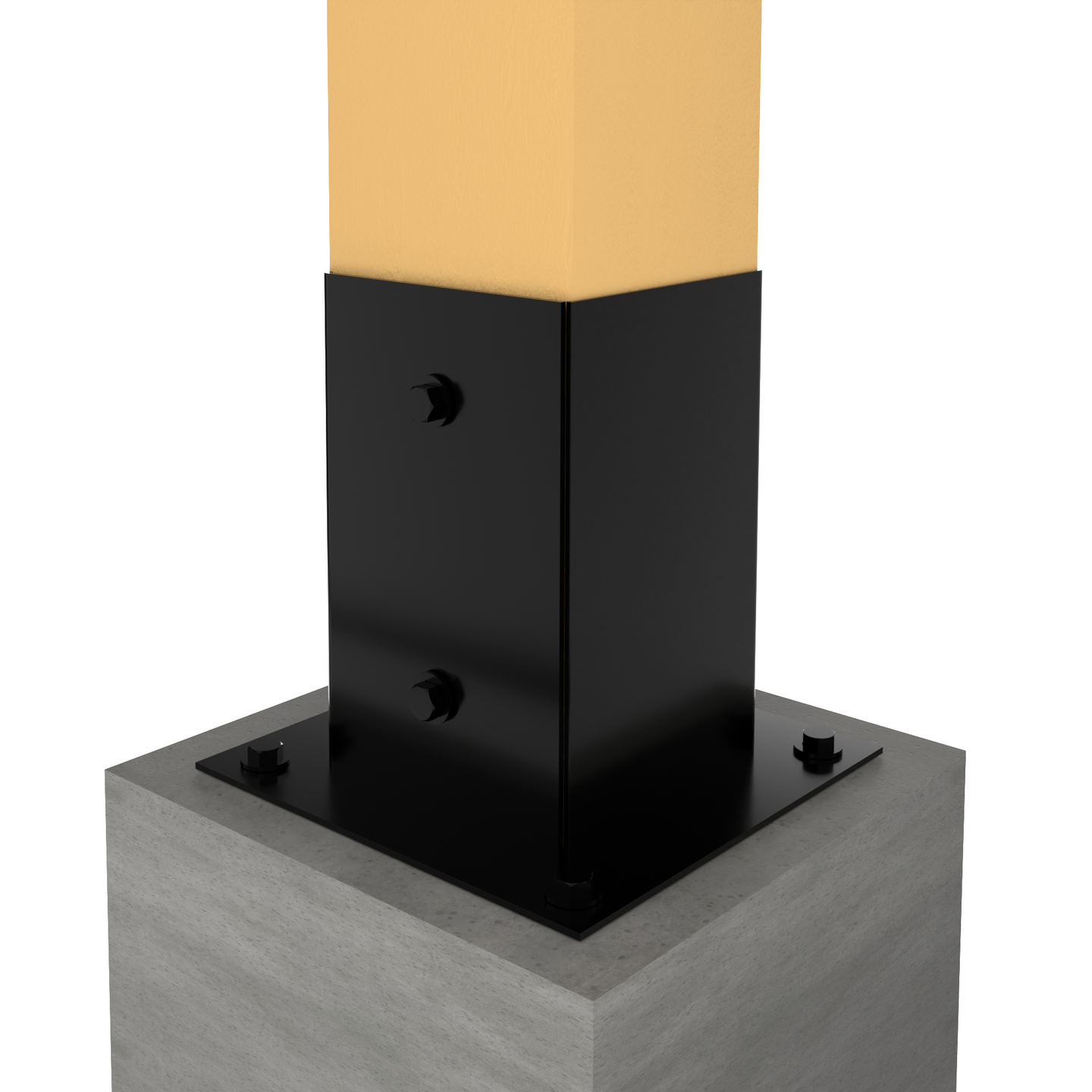

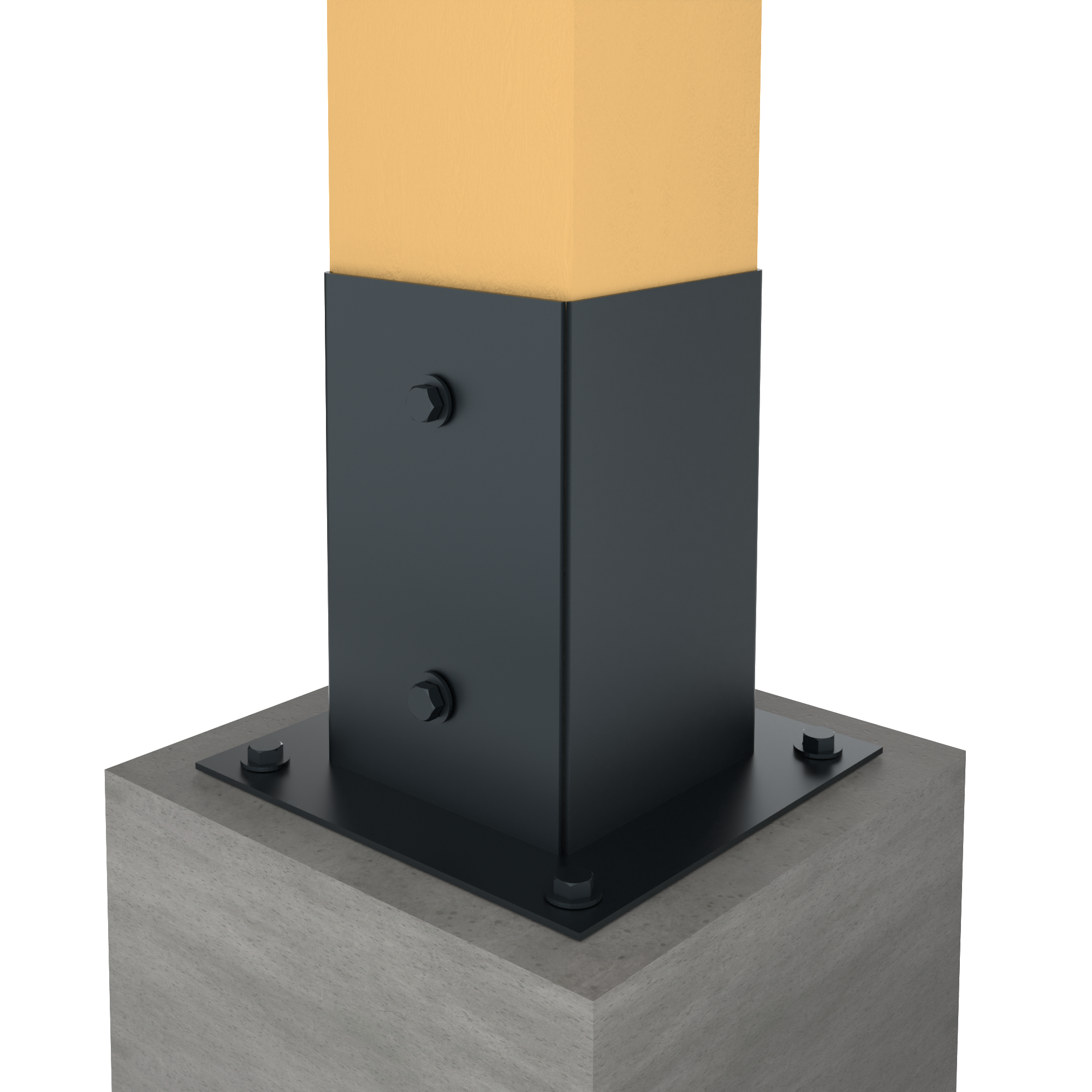

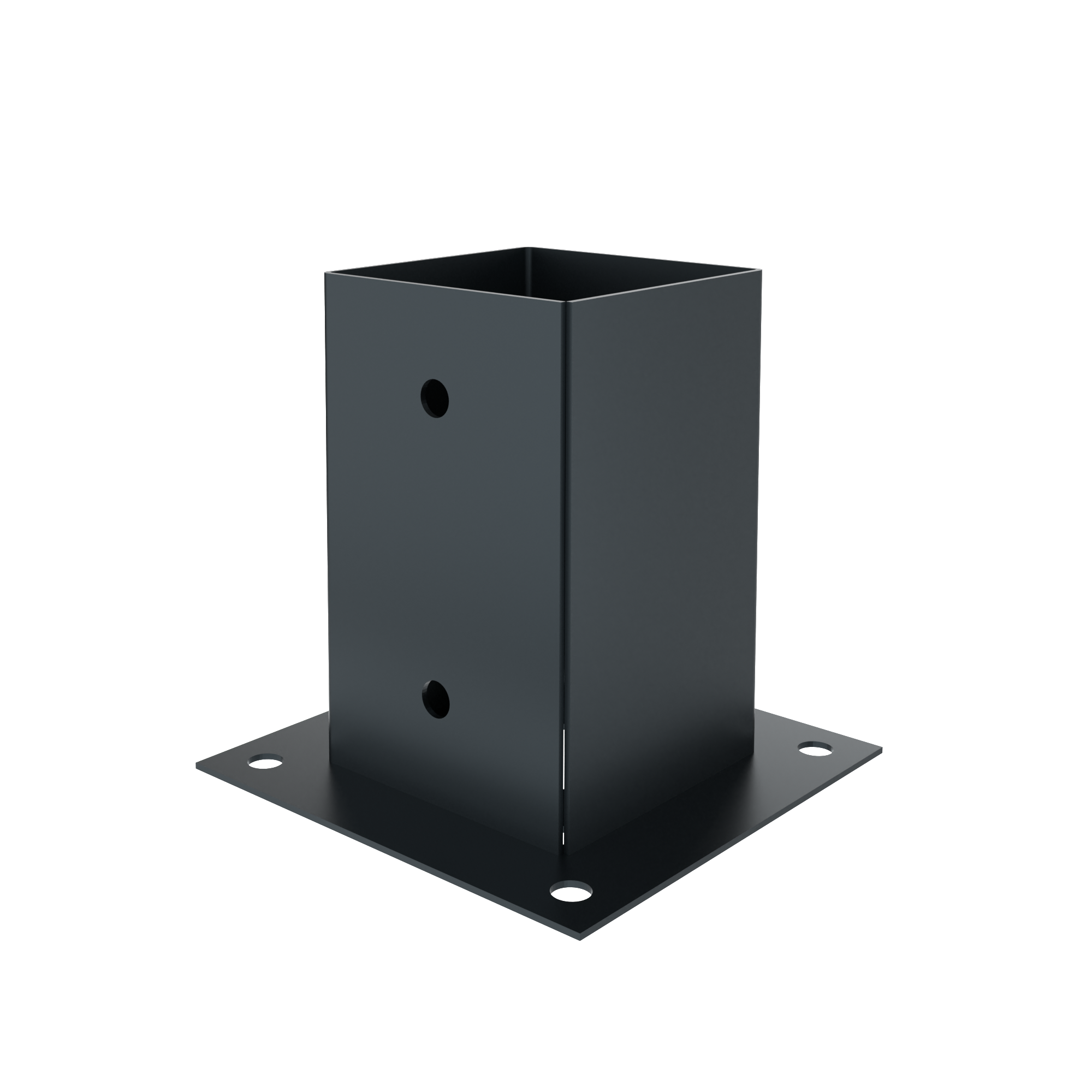

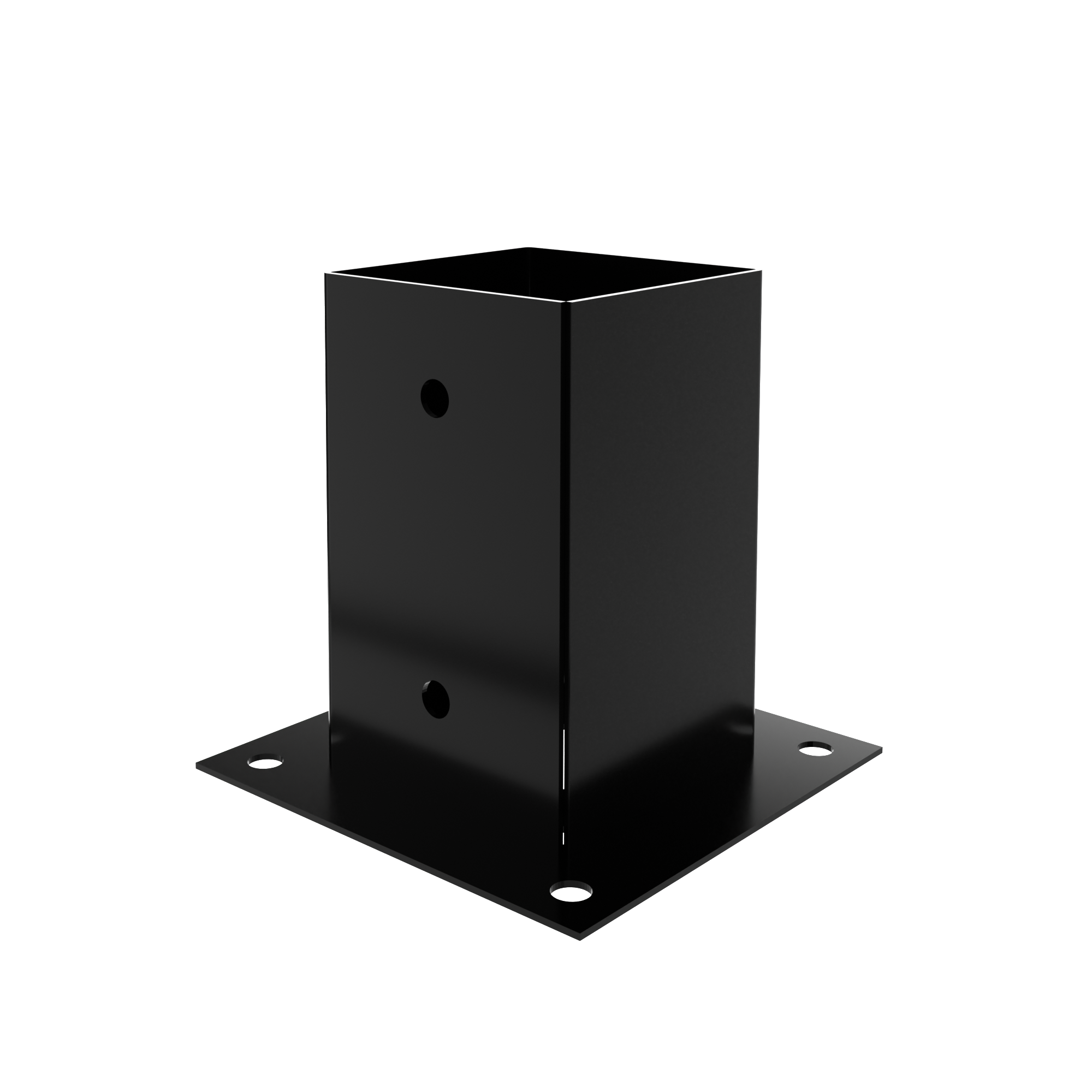

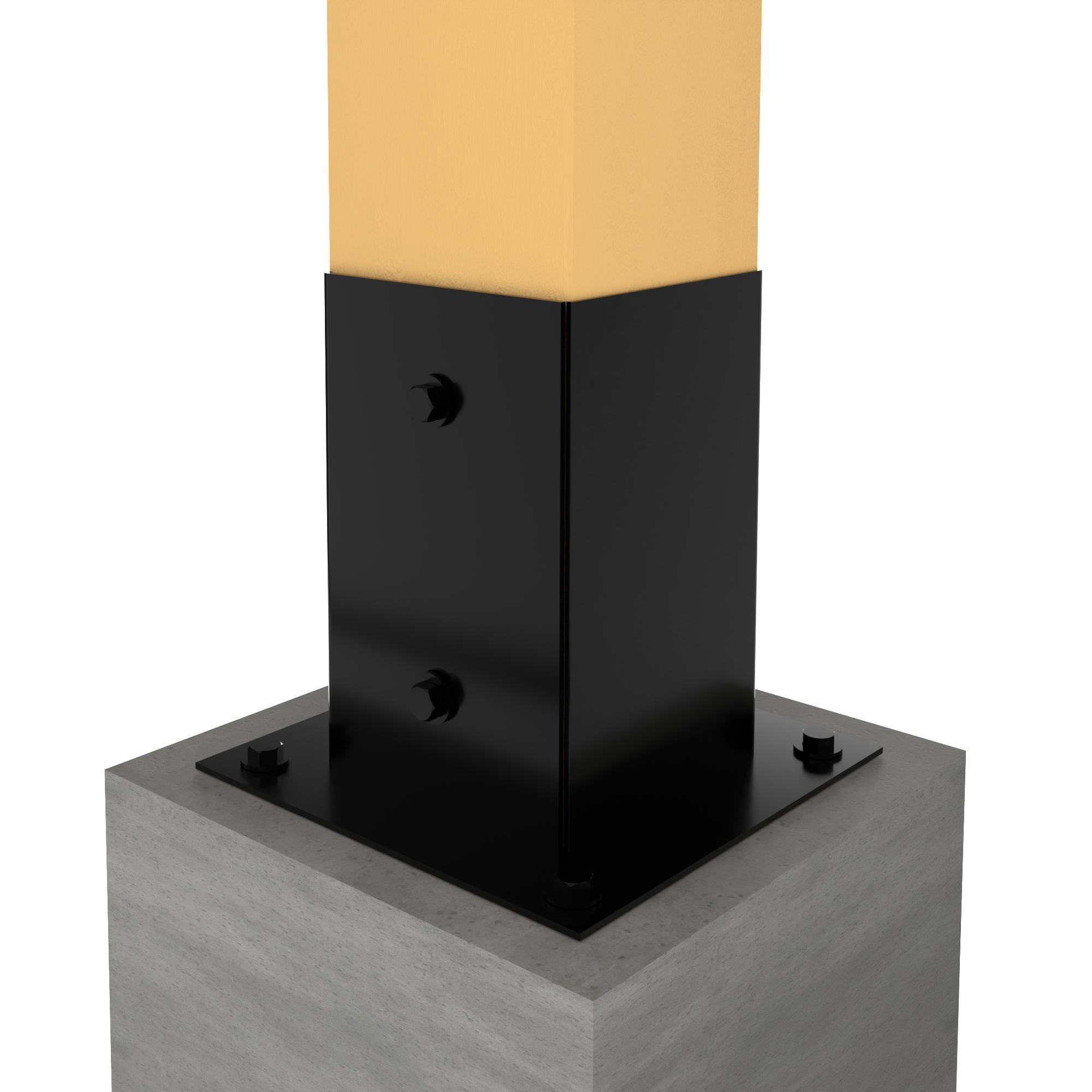

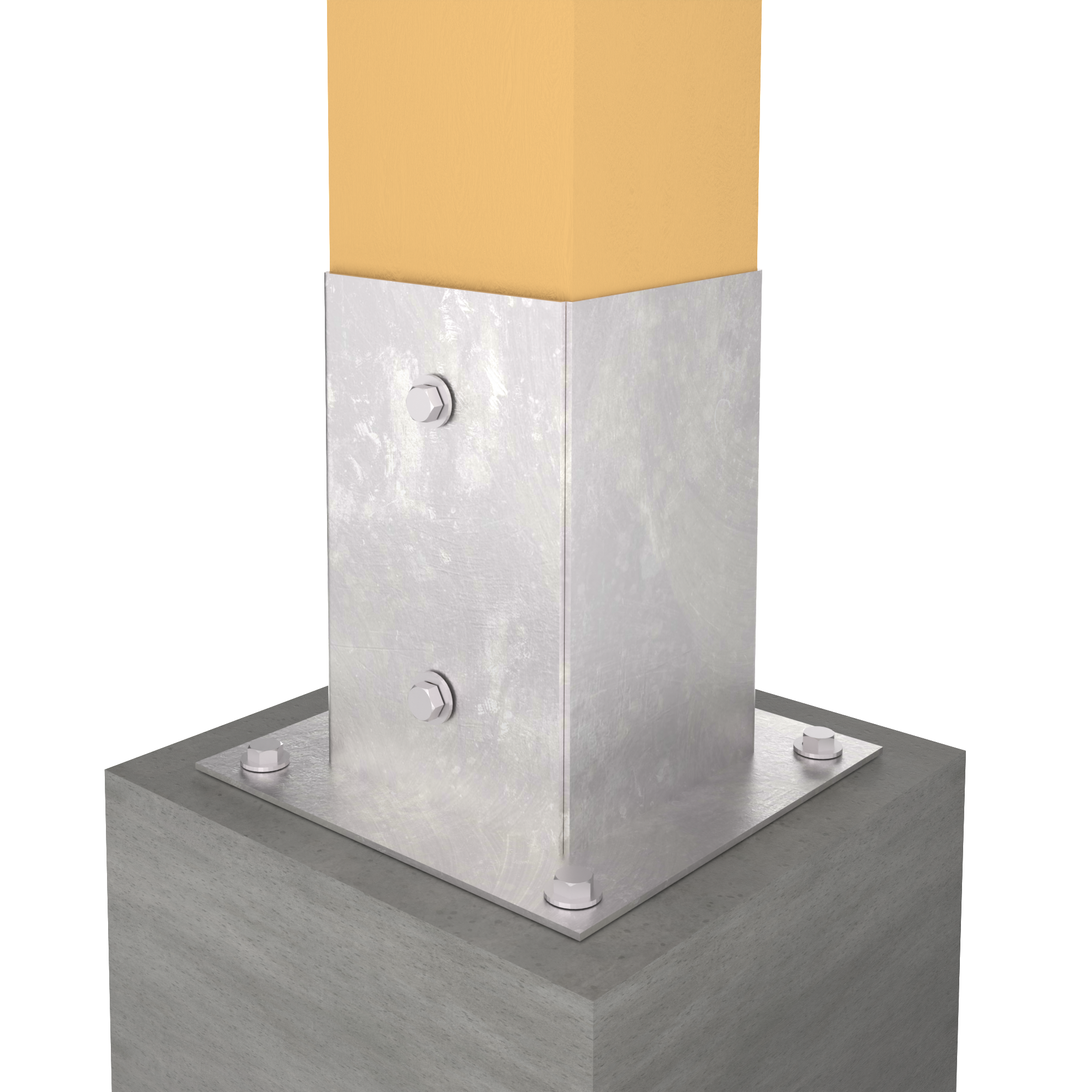

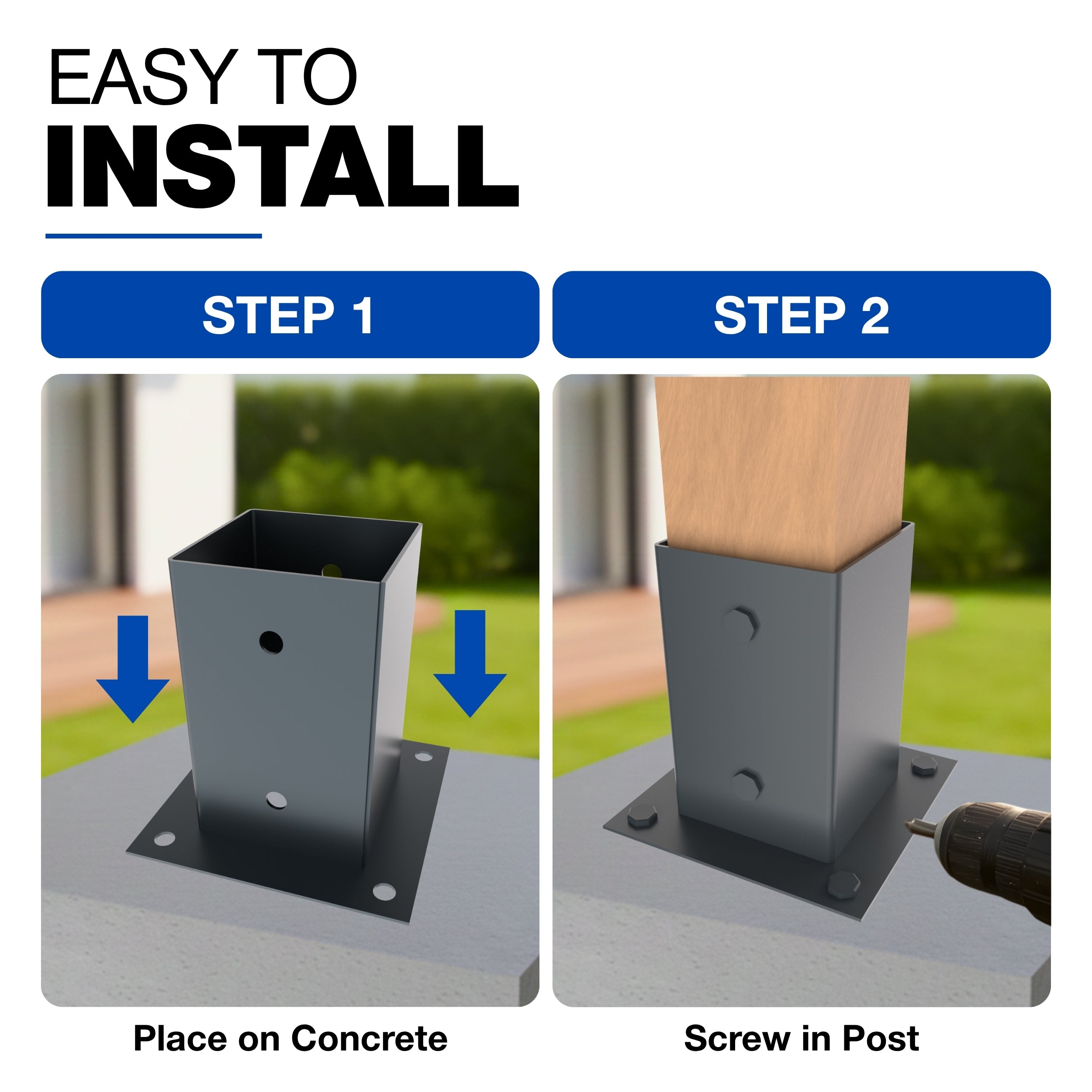

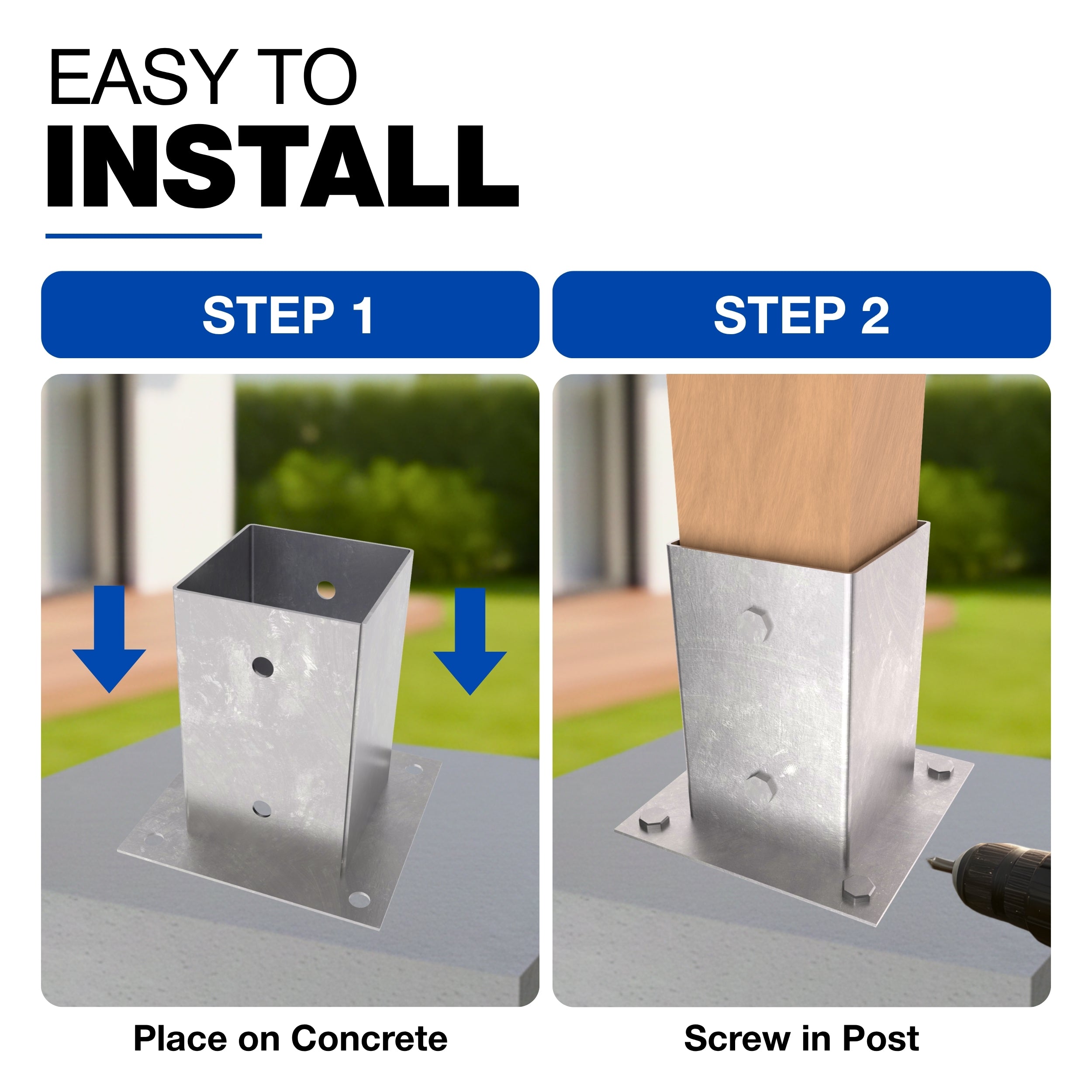

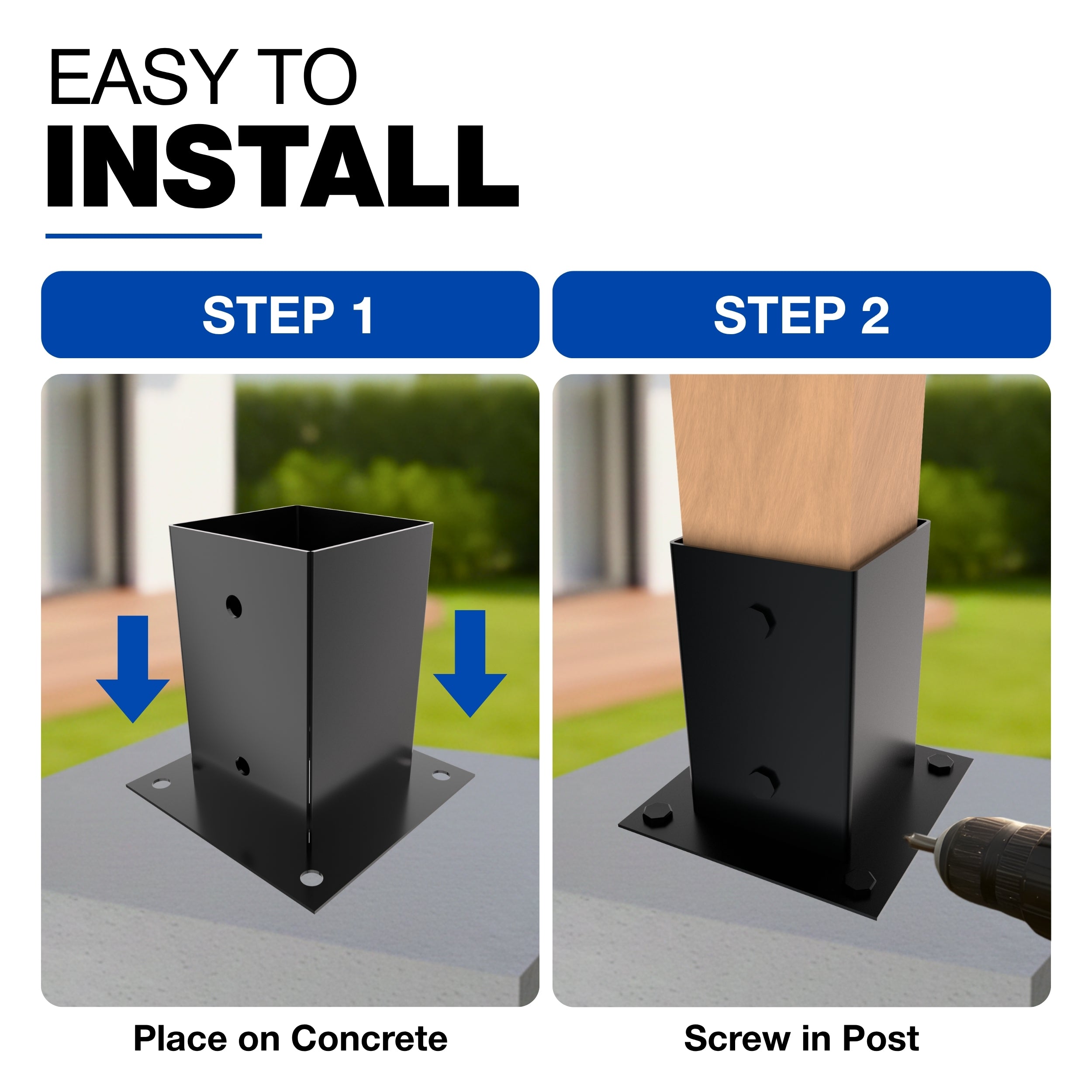

FEATURES – As the post support on the plate is dowelled or screwed on, installation is very quick and easy. The bolt down square bracket allows the post sleeve to be secured to the ground through the holes in the base plate. To secure the post in the sleeve, pre-drilled holes are positioned parallel to each other on the sleeve walls, ensuring a snug fit.
USABILITY – A stable base, such as a concrete foundation, is required for proper installation. The post must not rest on the bottom of the sleeve to prevent moisture from penetrating the wood. Adequate under-ventilation is crucial for long-term durability, especially when using deck post bases or post base wood fence setups.

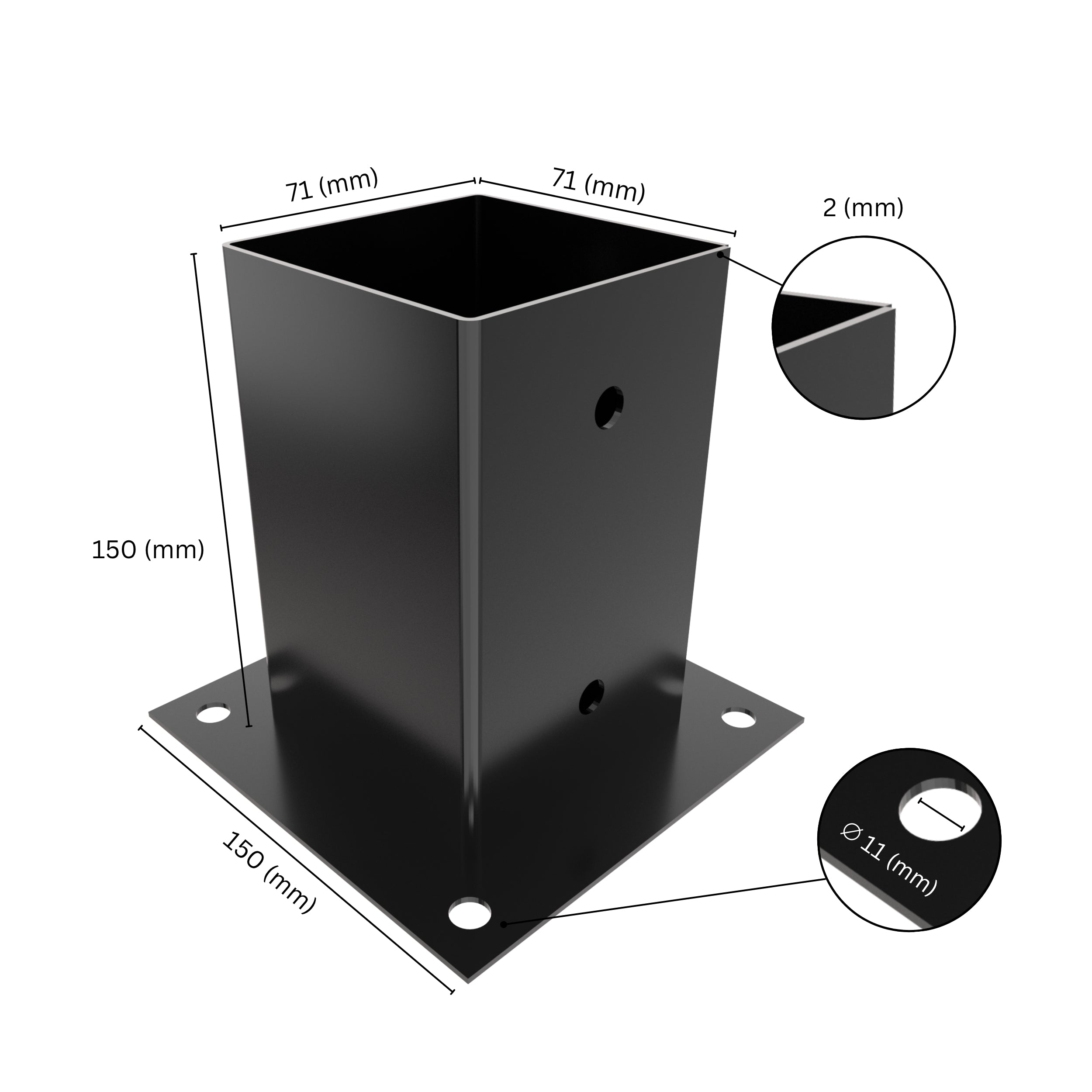

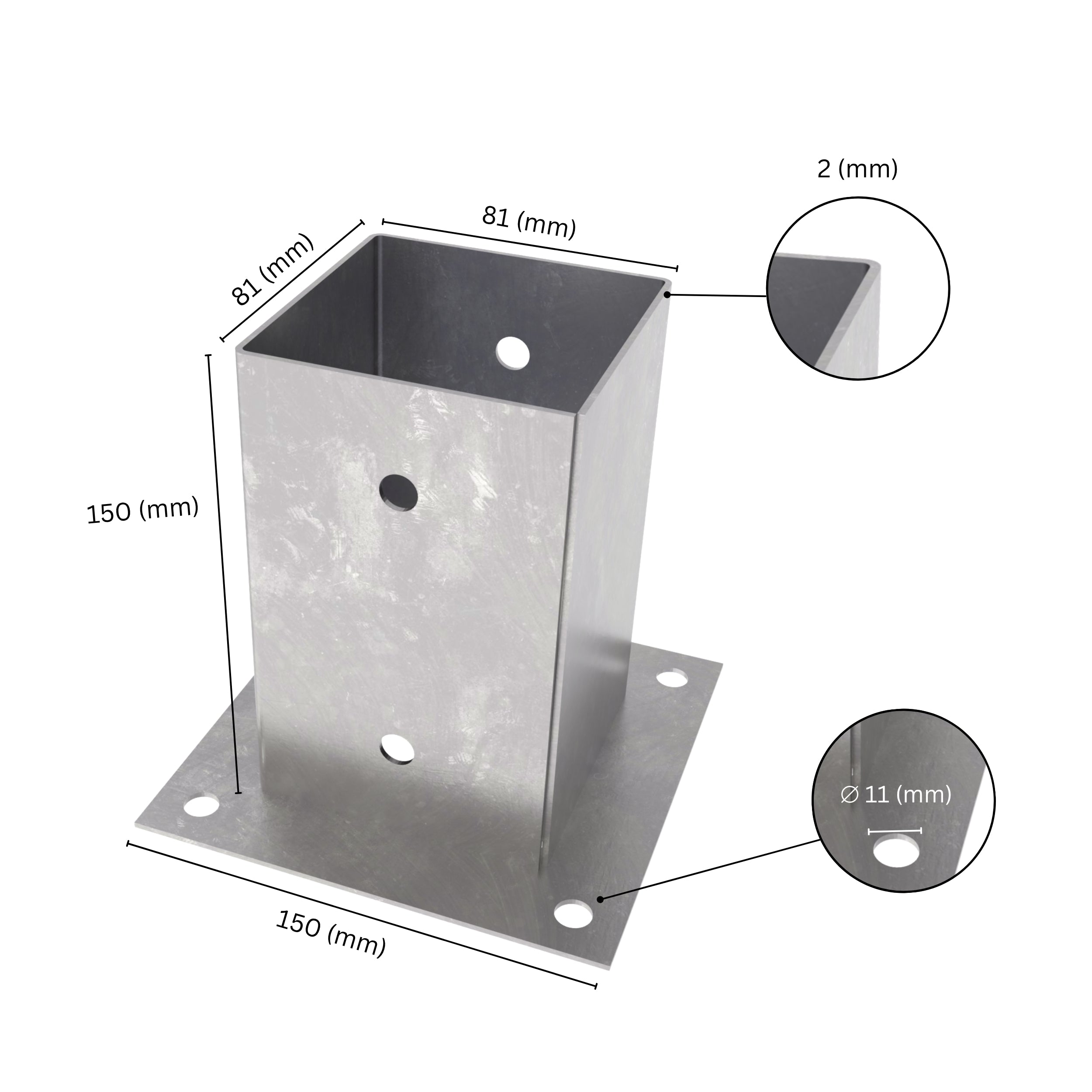

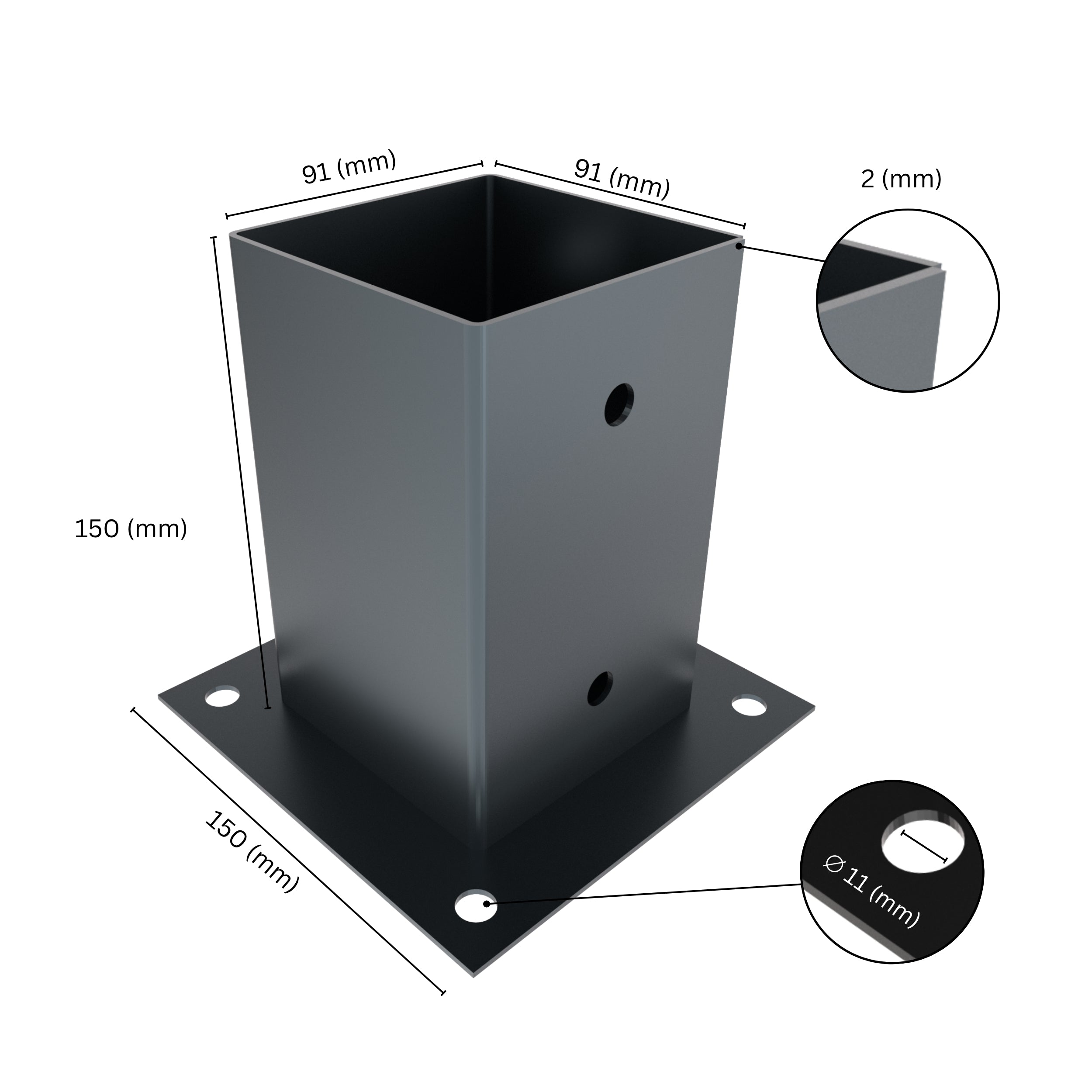

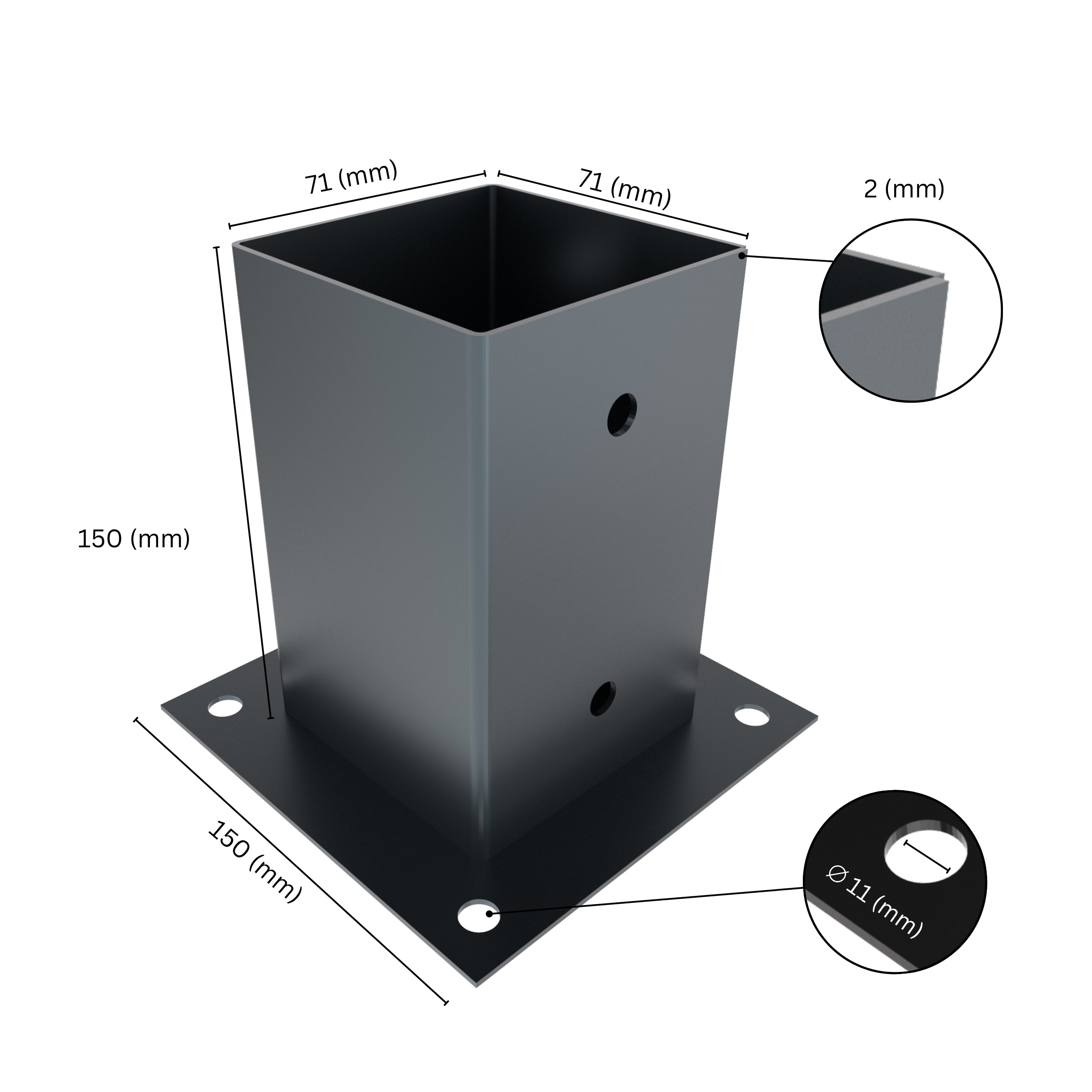

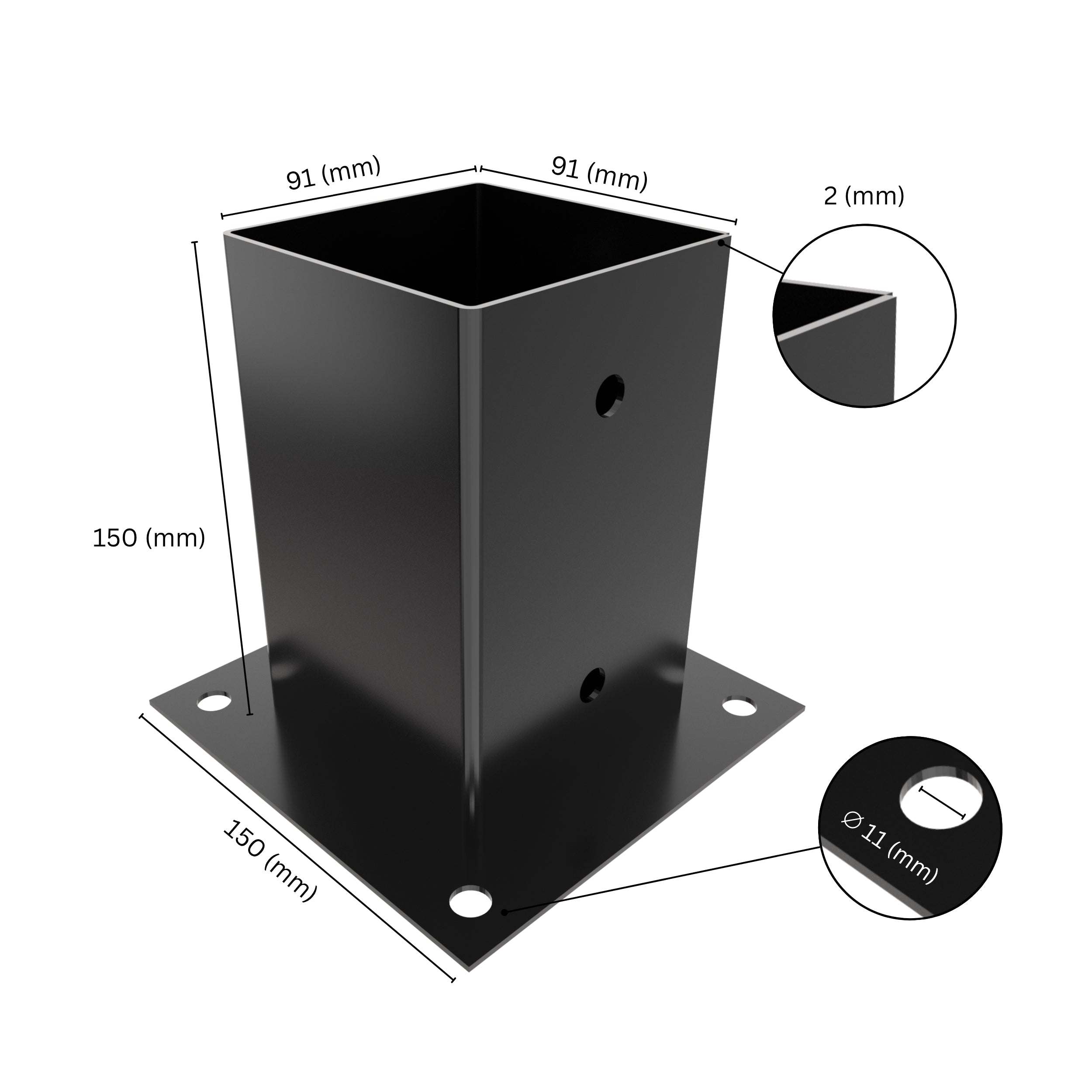

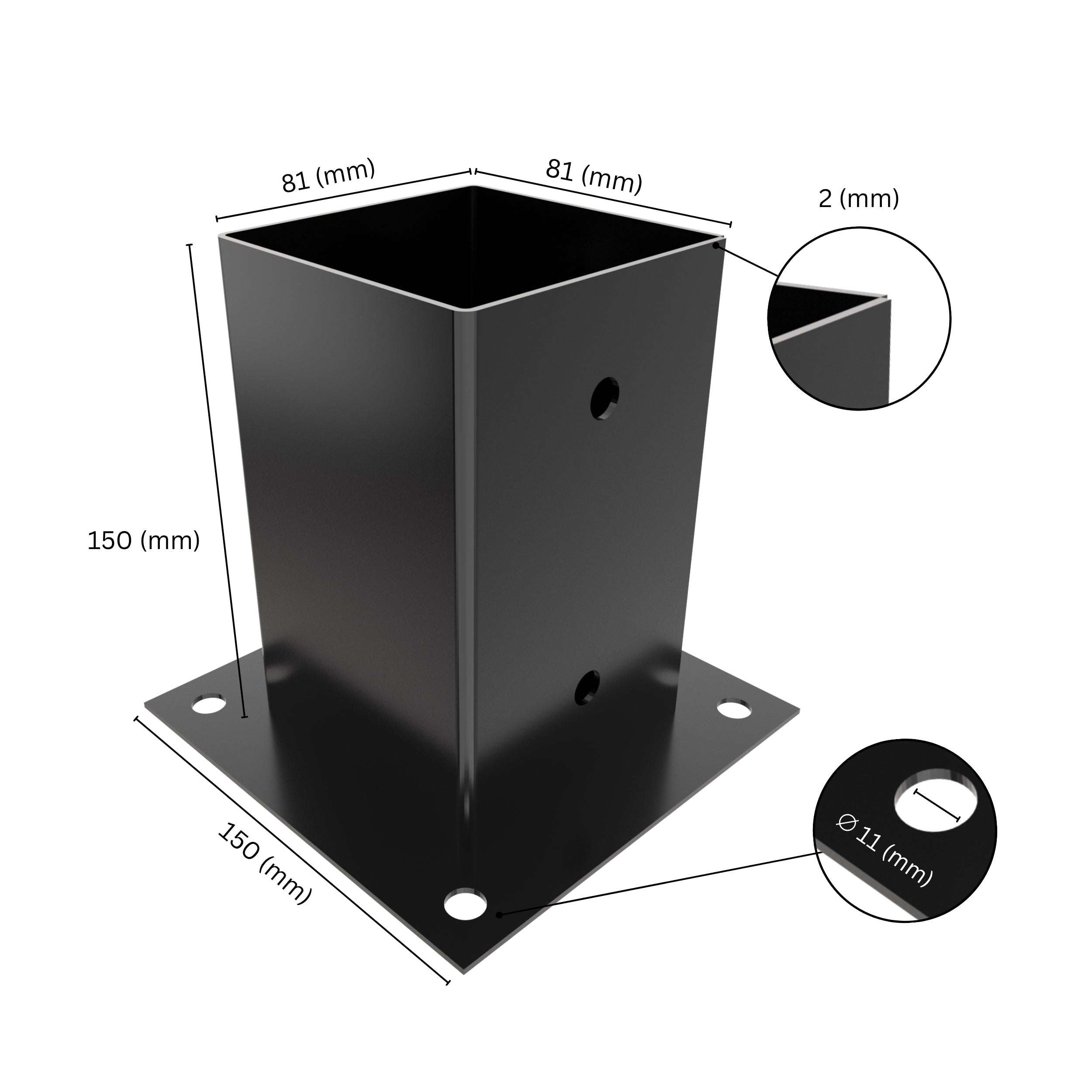

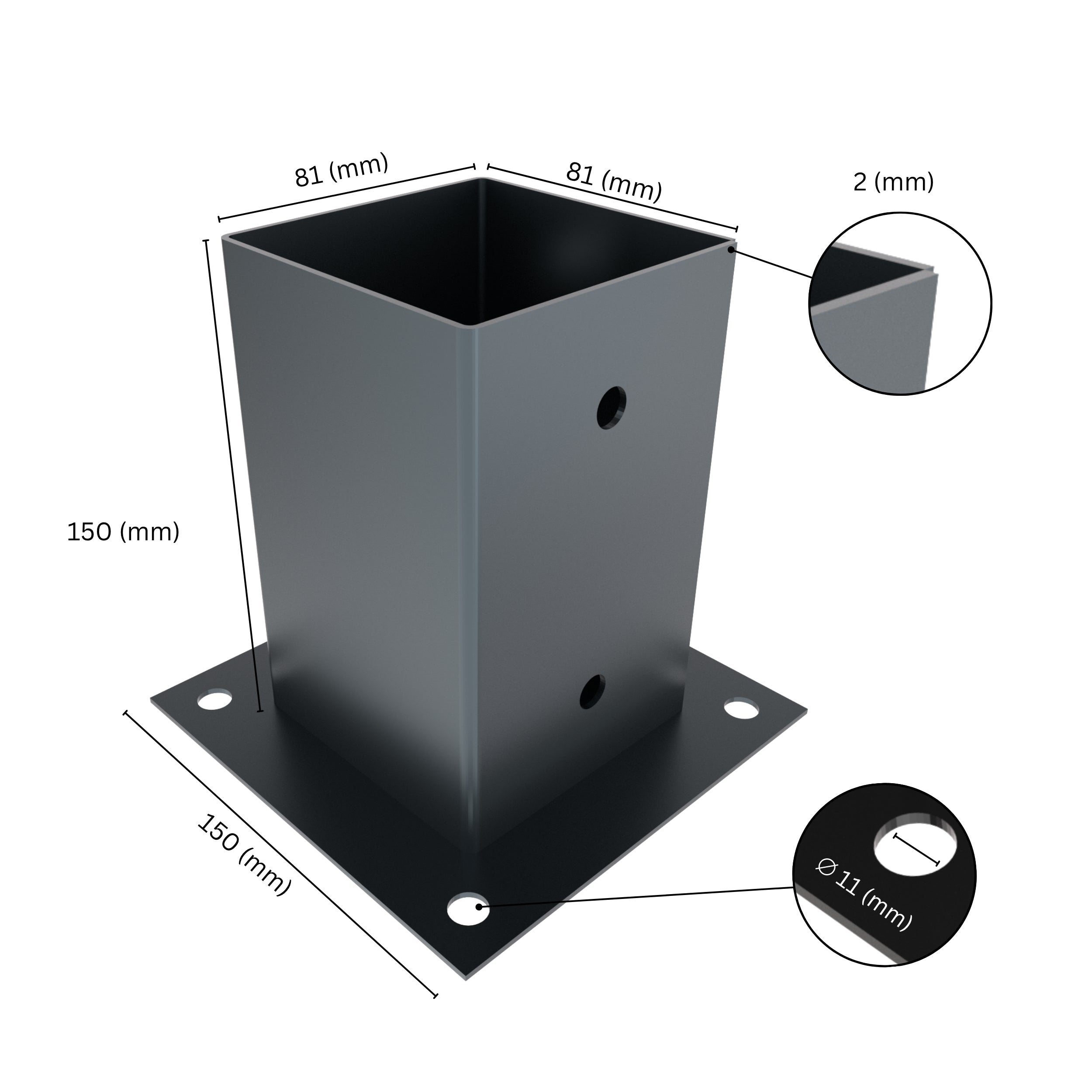

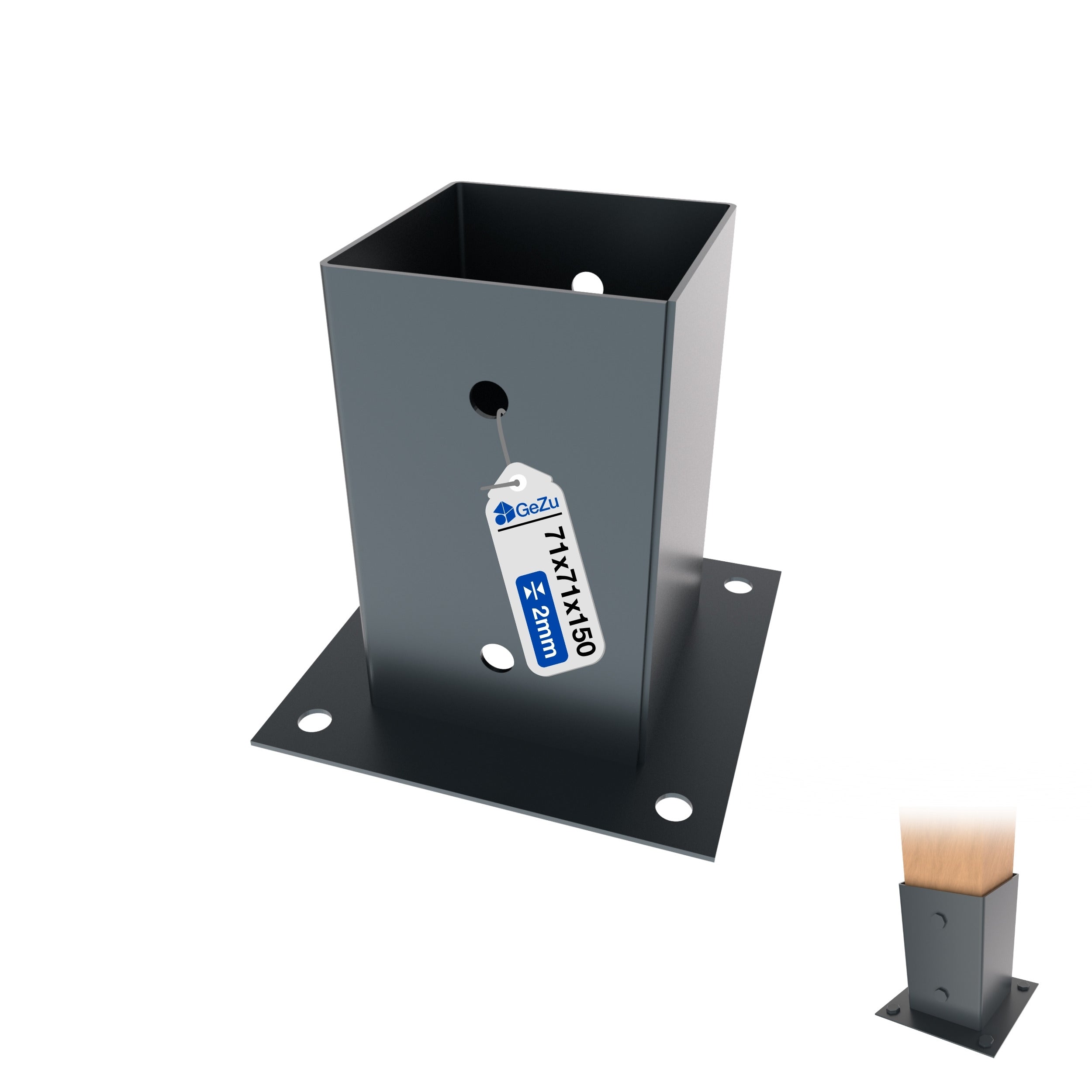

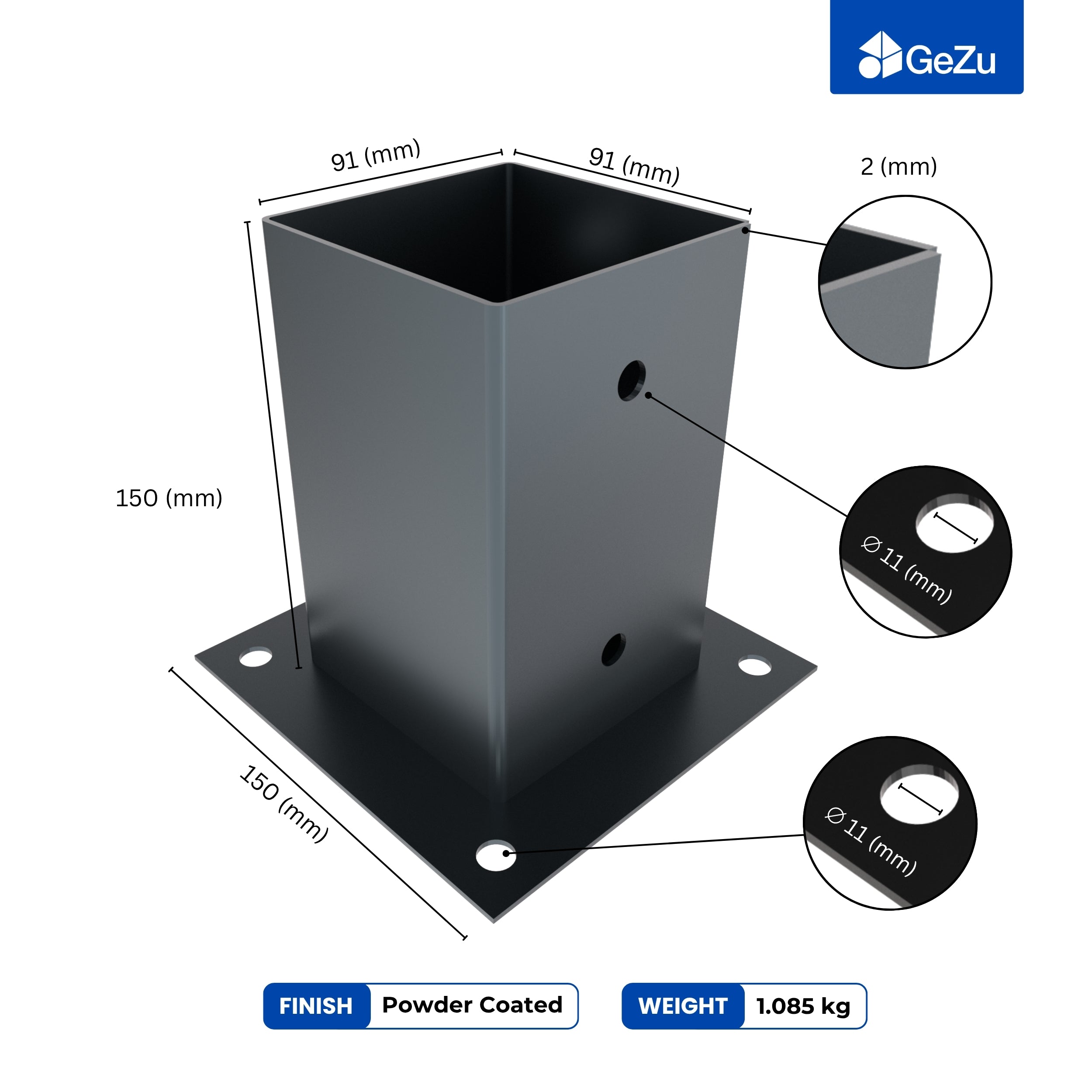

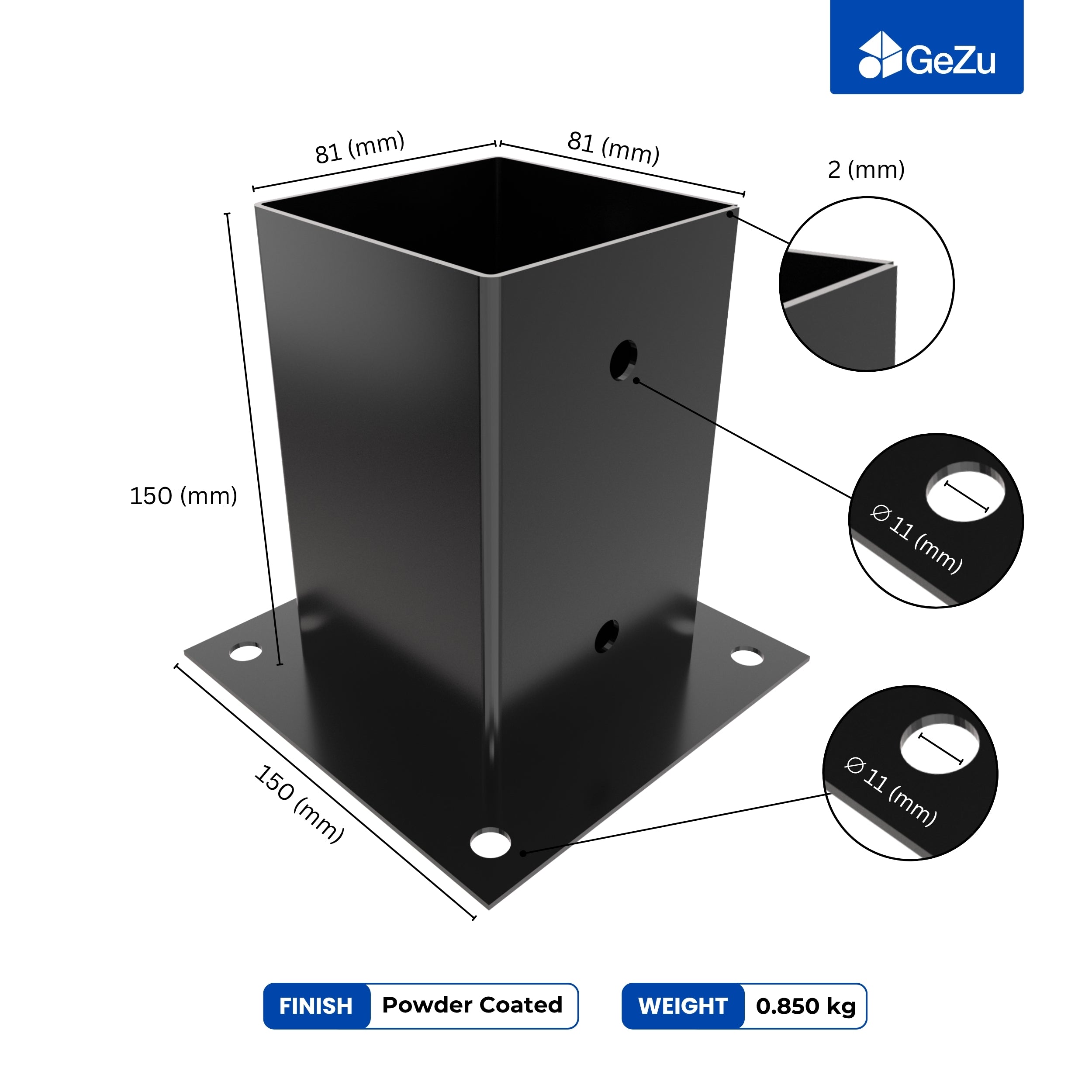

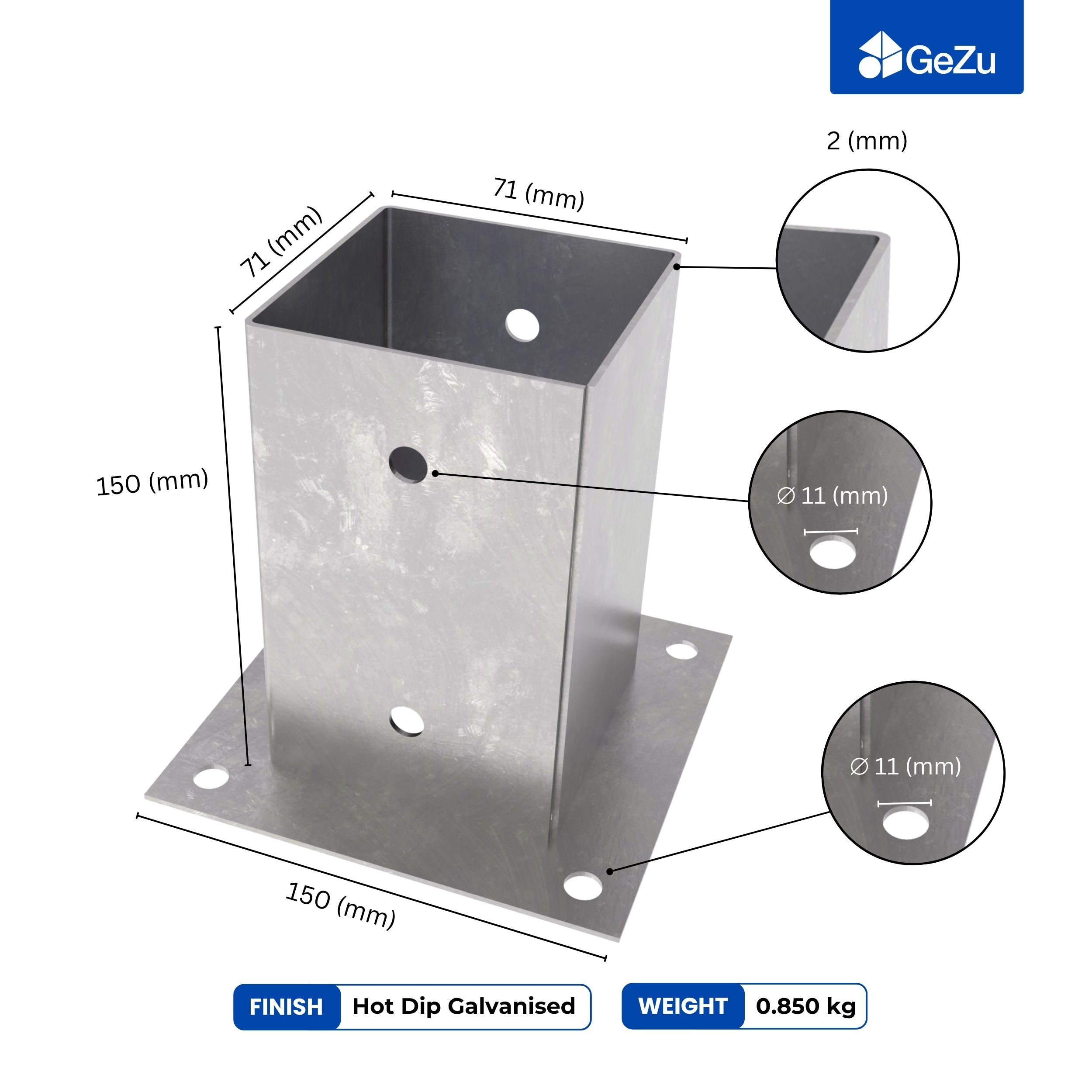

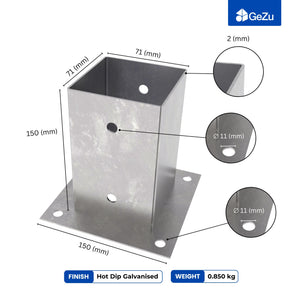

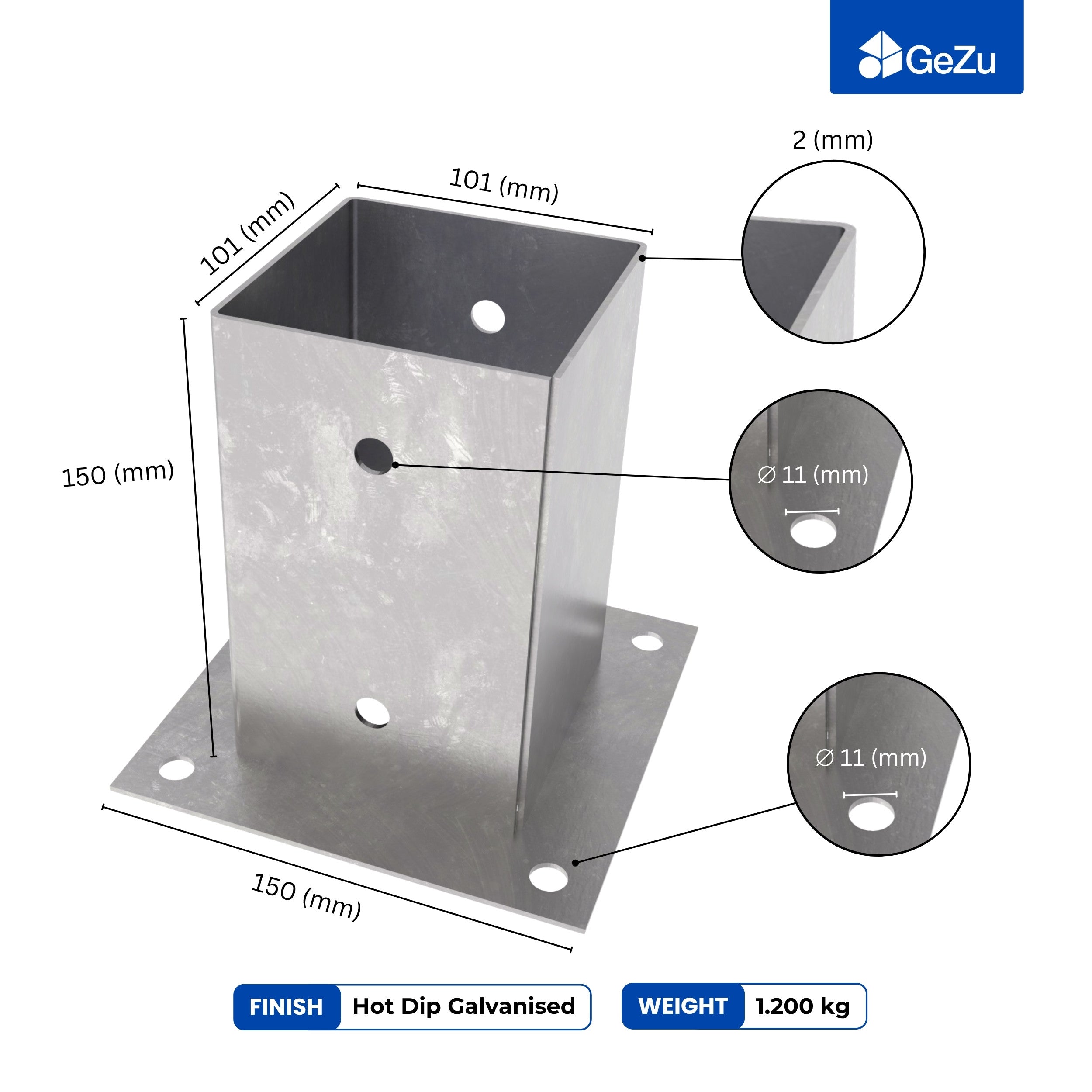

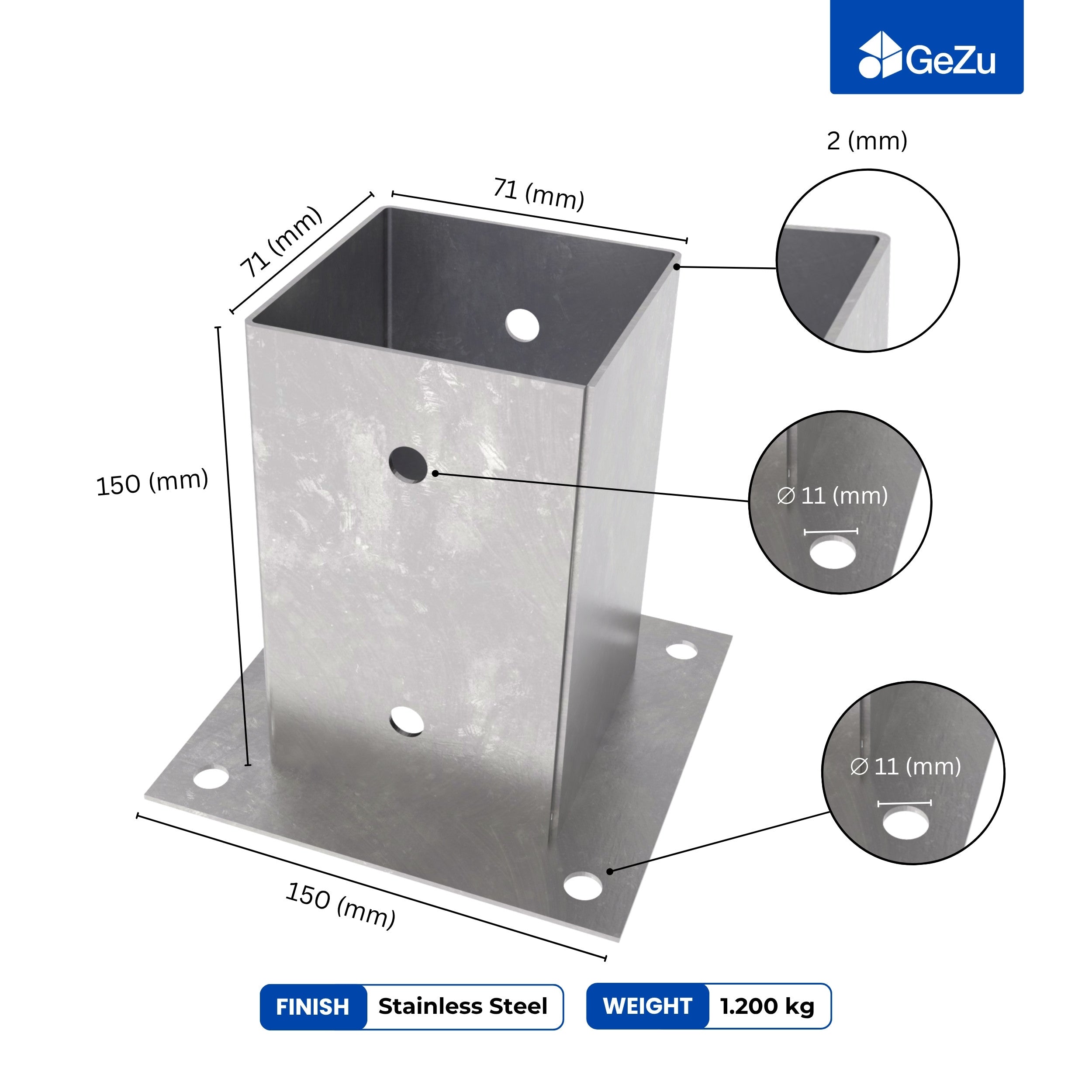

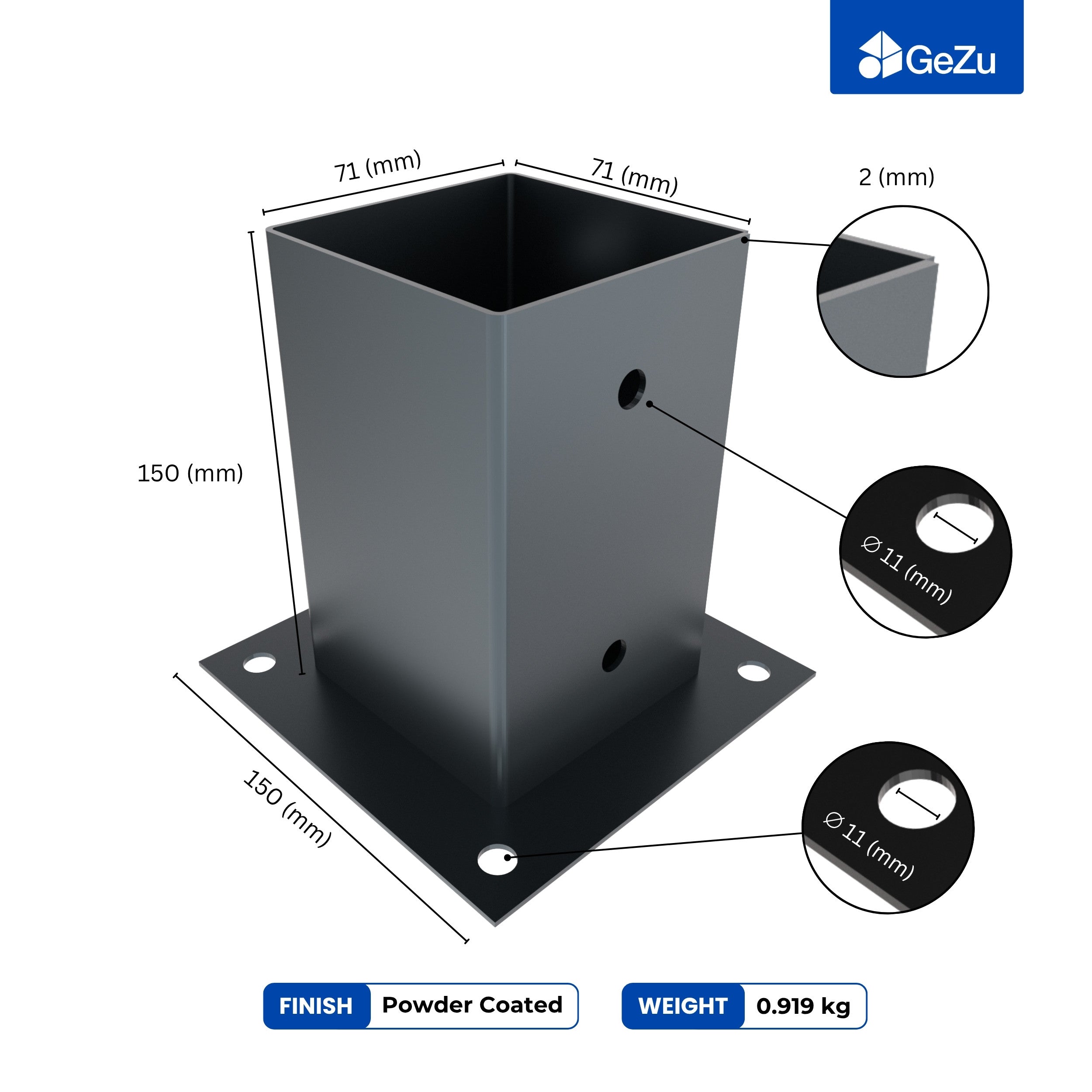

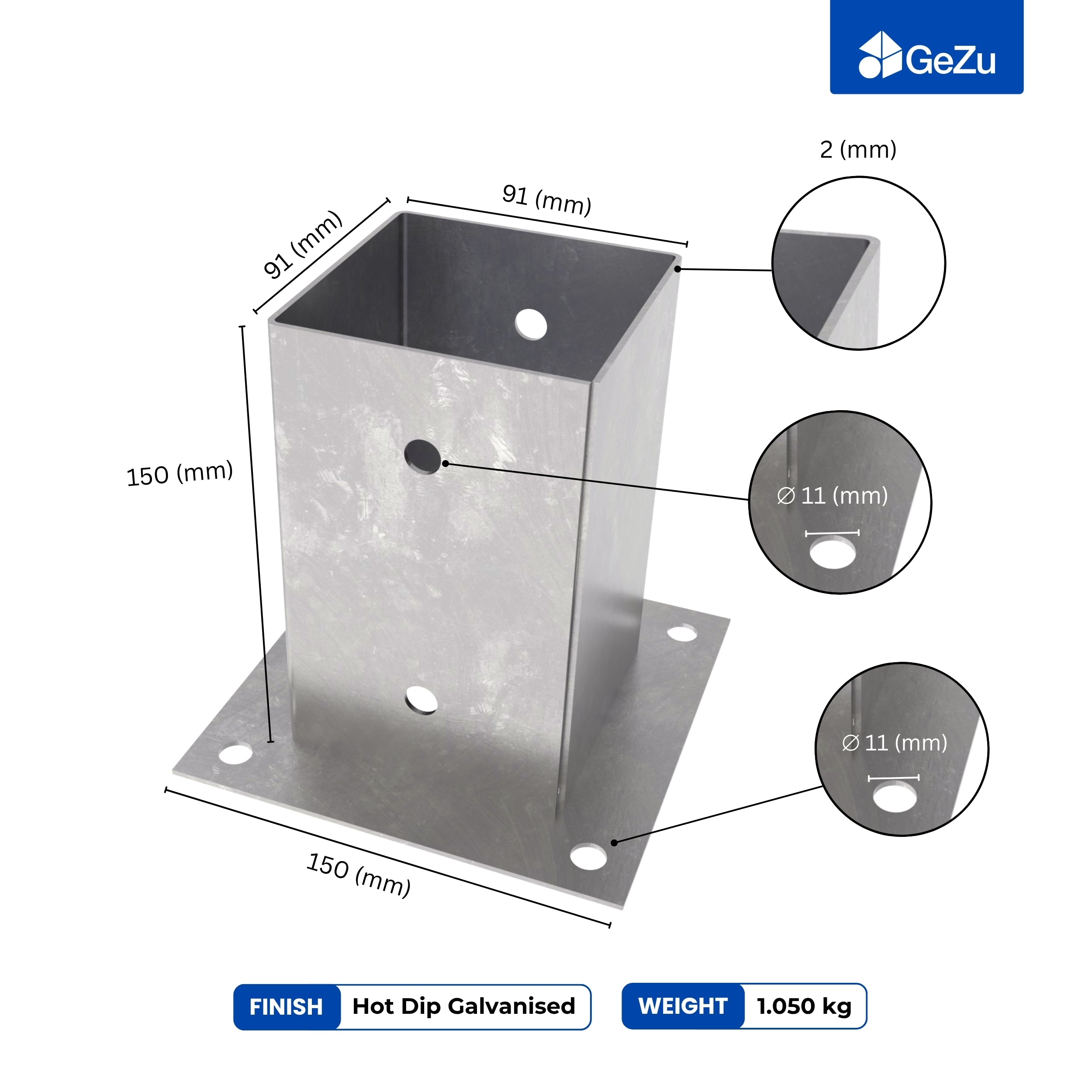

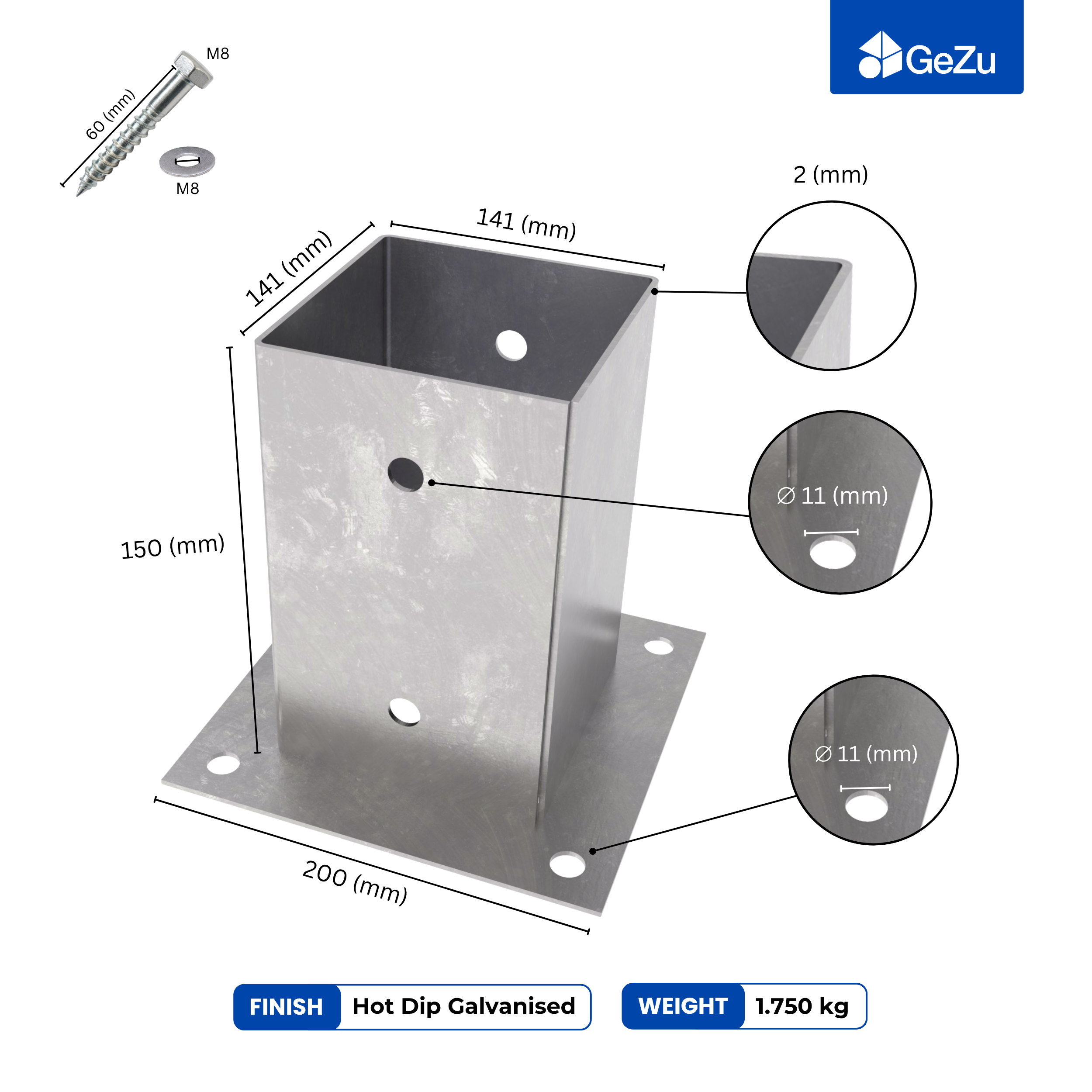

VERSATILITY – The post base is available in the following sleeve sizes: 71 x 71 mm, 81 x 81 mm, 91 x 91 mm, 101 x 101 mm, 121 x 121 mm, and 141 x 141 mm. The hot-dip galvanisation protects the fence post support base and bolt down post support 100mm from external weather influences, ensuring long-lasting use. These fence post brackets offer versatile solutions for various post and fence installations.

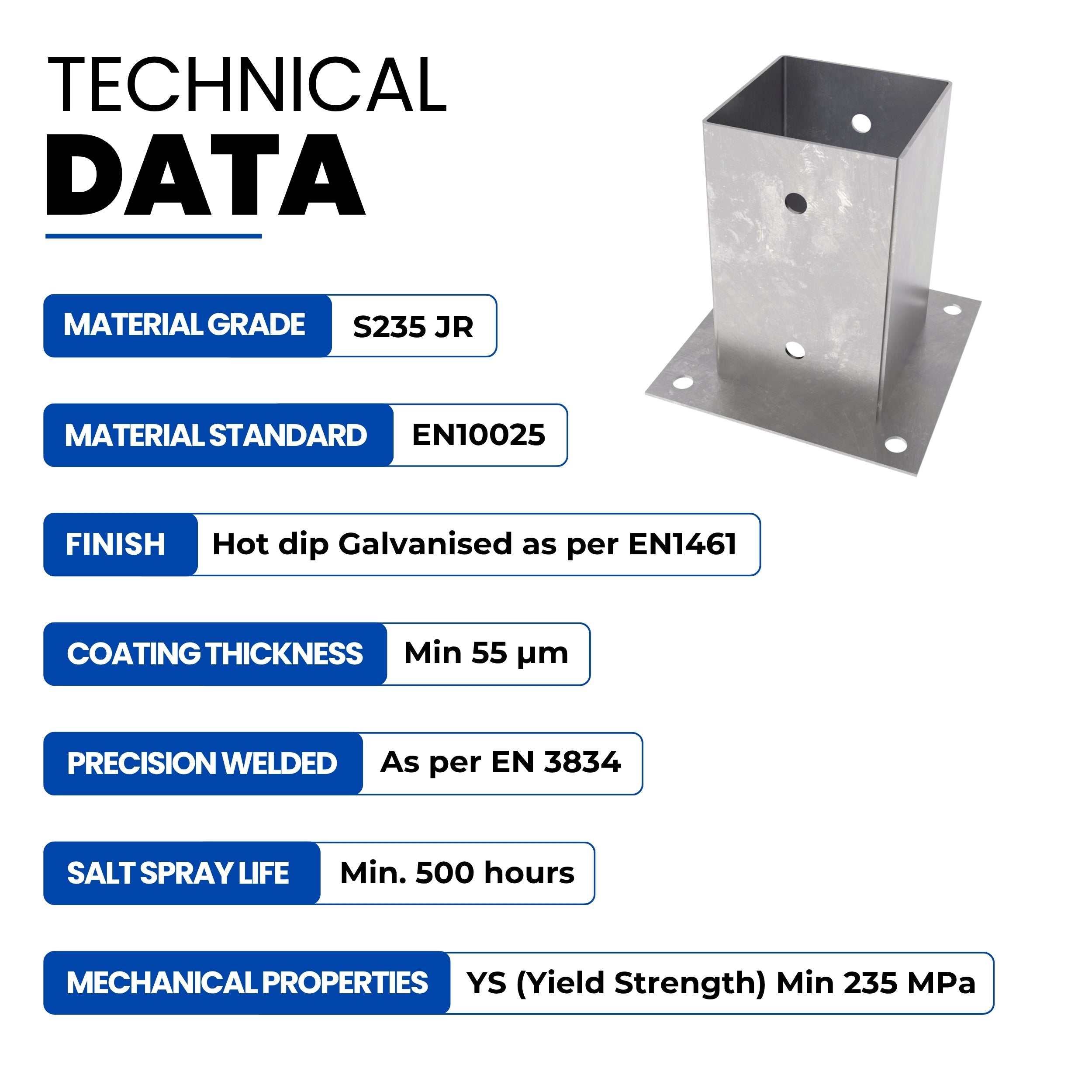

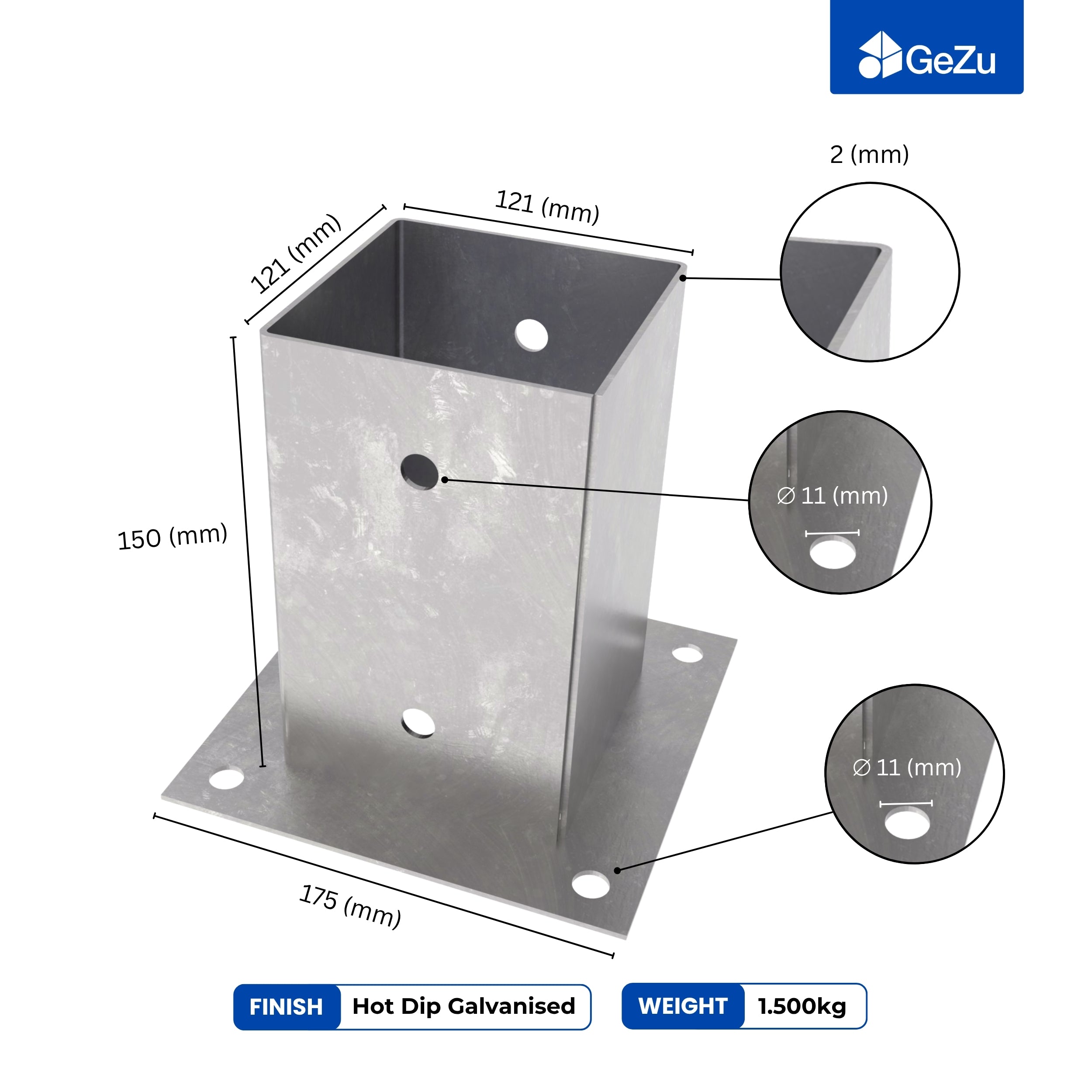

TECHNICAL DATA - Sleeve size: 121 x 121 x 150 mm - Holes: 8 holes Ø 11 mm - Base plate: 185 x 185 mm - Material thickness: 2 mm - Material type: hot-dip galvanised steel
