Home Couplers Scaffold Half Coupler with Welded Bolt | Scaffolding Clamp
Screw on scaffolding coupler clamp
Product Information

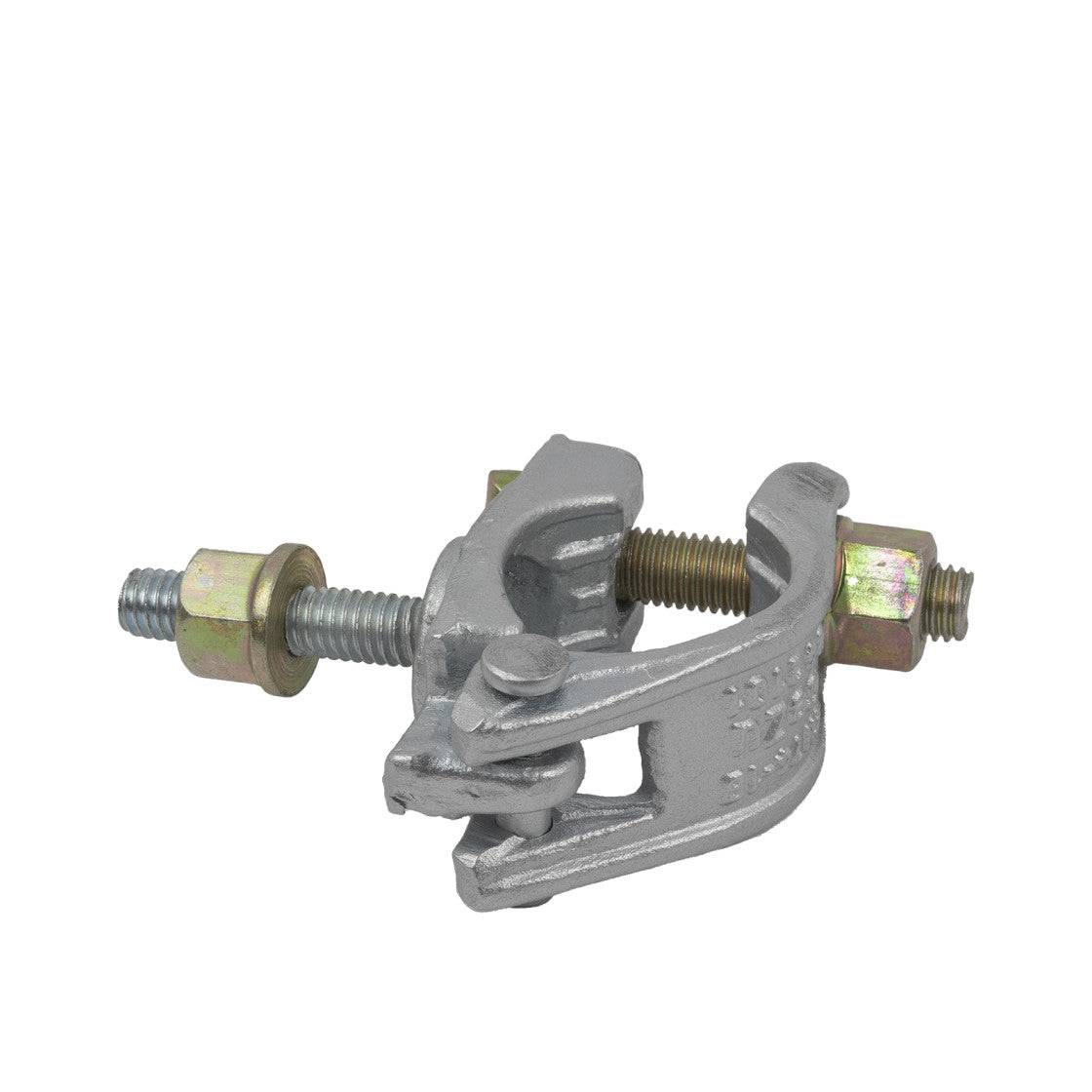

Scaffold half coupler with welded bolt is used to attach a single scaffold tube to a structural element such as wooden beams for better scaffold stability. It has a welded bolt for fixing into wood or concrete to secure the tube and serves as an anchor coupler.

Screw-on scaffolding coupler features a threaded bolt, SW nut and strong clamp jaw that provide secure scaffold tube connection. Drop-forged galvanised steel makes it corrosion-resistant and provides high tensile strength and strong load-bearing support.

You can use this scaffold tube clamp in tube and coupler scaffolding. Also, for fixing and connecting scaffold tubes in facade scaffolding, freestyle scaffolding, tubular scaffolding and support structures used in construction, maintenance and repair work.

Position the structural element (wooden beam) and drill a hole in it. Insert the welded bolt into the element. Tighten a nut on the opposite side to secure it. Then open the half coupler, place it around the scaffold tube and close and secure it.

Technical Details

MM CM IN
Size Diameter
Ø 48 mm Ø 4.8 cm Ø 1.88 in
Nut
SW 22 SW 22 SW 22
Finish
Hot Dip Galvanised Hot Dip Galvanised Hot Dip Galvanised
Compliance
EN74 EN74 EN74
Threaded Screw Diameter
14 mm 1.4 cm 0.55 in
Threaded Screw Length
50 mm 5 cm 1.97 in
Hammer Head Screw
M14 mm M14 cm M14 in
Hammer Head Screw Length
82 mm 8.2 cm 3.23 in

Scaffold Half Coupler with Welded Bolt | Scaffolding Clamp

SKU: 12031003
€9,47 Regular price €7,28Inc VAT Sale price
23% OFF

Our screw on couplings have a threaded screw welded into the lower part of the coupling with a diameter of 12 mm and can thus be screwed to a wooden beam, for example, and thus offer the possibility of establishing a connection to a scaffolding tube.

  • Easy Installation
  • Certified Quality
  • Fast Shipping.
Size: 48 mm
Size :
Finish: Hot Dip Galvanised
Finish :
Add to Wishlist Add to Compare

Request a customized quote

Interested in larger quantities of one or more products? Once you've submitted your request, we'll get back to you as soon as possible with a suitable offer.

Number Qty Article(number)
1
Scaffold Half Coupler with Welded Bolt | Scaffolding Clamp
Scaffold Half Coupler with Welded Bolt | Scaffolding Clamp SKU: 12031003

Select a product

Loading products...
American Express
Apple Pay
Google Pay
Maestro
Mastercard
iDEAL Wero
Klarna
BLIK
PayPal
Shop Pay
Union Pay
Visa
+6 more
For quantities above 500

More details about the bulk quantities

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Unlock Bigger Savings

Discount automatically applied at checkout.
Buy 4+
€6,92
Incl. VAT
Save 5%
Buy 8+
€6,55
Incl. VAT
Save 10%
Buy 12+
€6,19
Incl. VAT
Save 15%
Buy 16+
€5,82
Incl. VAT
Save 20%

Technical Details

MM CM IN
Size Diameter
Ø 48 mm Ø 4.8 cm Ø 1.88 in
Nut
SW 22 SW 22 SW 22
Finish
Hot Dip Galvanised Hot Dip Galvanised Hot Dip Galvanised
Compliance
EN74 EN74 EN74
Threaded Screw Diameter
14 mm 1.4 cm 0.55 in
Threaded Screw Length
50 mm 5 cm 1.97 in
Hammer Head Screw
M14 mm M14 cm M14 in
Hammer Head Screw Length
82 mm 8.2 cm 3.23 in

Scaffold half coupler with welded bolt is used to attach a single scaffold tube to a structural element such as wooden beams for better scaffold stability. It has a welded bolt for fixing into wood or concrete to secure the tube and serves as an anchor coupler.

Screw-on scaffolding coupler features a threaded bolt, SW nut and strong clamp jaw that provide secure scaffold tube connection. Drop-forged galvanised steel makes it corrosion-resistant and provides high tensile strength and strong load-bearing support.

You can use this scaffold tube clamp in tube and coupler scaffolding. Also, for fixing and connecting scaffold tubes in facade scaffolding, freestyle scaffolding, tubular scaffolding and support structures used in construction, maintenance and repair work.

Position the structural element (wooden beam) and drill a hole in it. Insert the welded bolt into the element. Tighten a nut on the opposite side to secure it. Then open the half coupler, place it around the scaffold tube and close and secure it.
